W-01-00021 CBGJ3100 Changlin Hydraulic Gear Pump

Parameter	Specification / verification
Part number	W-01-00021 / W0100021
Verified catalog model	CBGj3100 / CBGJ3100
Model variant reference	CBGj3100-2; confirm suffix and physical configuration
Other search name	JHP3100 — verify dimensions; not universally interchangeable
Equipment brand	Changlin / CHANG LIN; not a verified SDLG application
Application references	ZLM50E-5 / ZL50H; serial-number and old-pump matching required
Pump construction	Single external hydraulic gear pump
Shaft reference	8 splines per supplied product sheet; verify actual shaft
Shaft measurements	Diameter and engagement length to be confirmed
Displacement — series reference	100 cm³/rev
Rated / maximum pressure — series reference	20 / 25 MPa (200 / 250 bar)
Rated / maximum speed — series reference	2200 / 2500 rpm
Exact unit operating limits	Confirm ordered configuration; series values are not unit certification
Rotation / flange / ports	Verify against original pump and drawing
Weight / materials / seals	Confirm selected configuration
Other configuration numbers	W-01-00251, W-01-00112, 803004063 — do not assume interchangeability

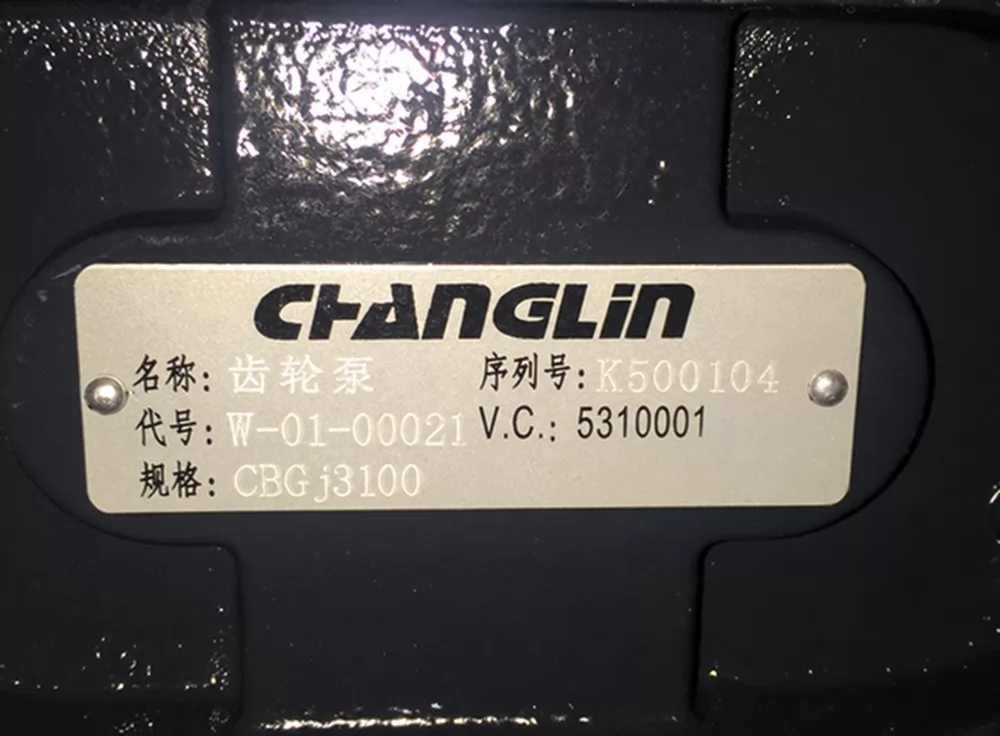

Identification reference	Source nameplate shows W-01-00021 and CBGj3100; V.C.5310001 is a label reference, not a replacement pump number
Manufacturer	Olive Branch Hydraulics, Hebei, China
Trade / services	EXW; OEM/ODM; private label; sample/drawing matching
Inspection	Final inspection before dispatch

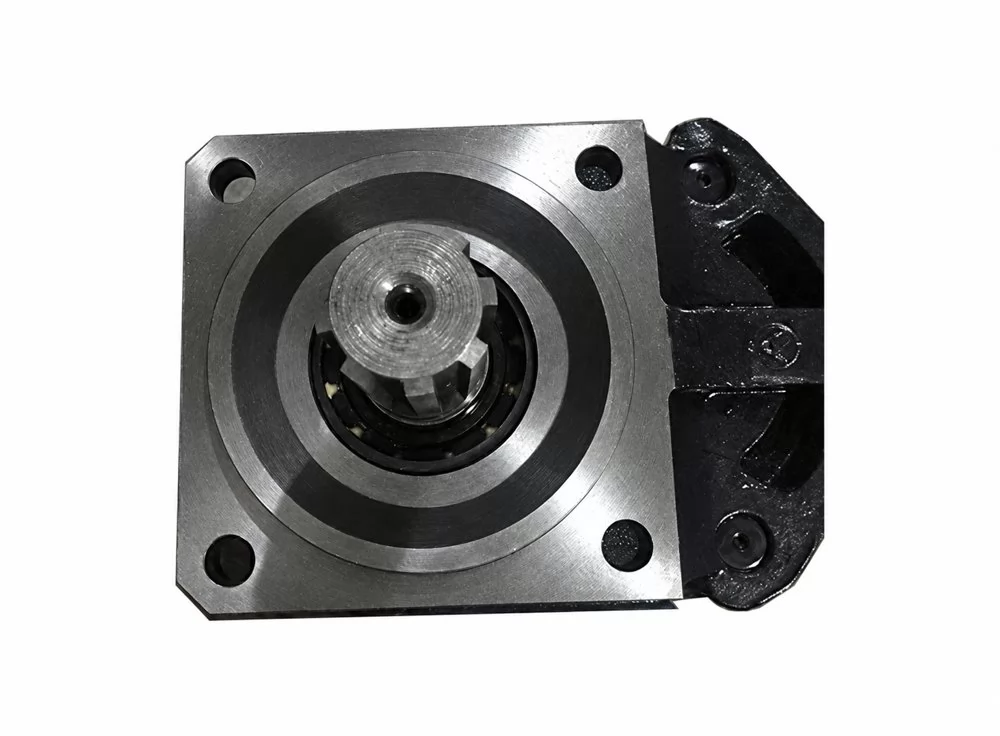

Photographs	Brand product sheet, shaft-end reference and identification plate; confirm actual ordered configuration

Product Information

W-01-00021 CBGJ3100 JHP3100 Changlin Hydraulic Gear Pump

Olive Branch Hydraulics is a hydraulic component manufacturer in Hebei, China. We produce gear pumps, tandem pumps, hydraulic motors and valves. We manufacture aftermarket W-01-00021 gear pump (also searched as W0100021). In our catalog, W-01-00021 maps to CBGj3100, listed for Changlin wheel loaders, with Changlin ZLM50E-5 and ZL50H as application references.

JHP3100 is a cross-search reference only. A JHP3100 pump does not automatically fit a CBGj3100 position. Before quotation, we check the serial number, shaft, flange and ports against your old pump.

What Makes This CBGj3100 Pump a Correct Replacement?

Verified catalog mapping

W-01-00021 corresponds to CBGj3100 for Changlin, so you start from a confirmed part link instead of a guess.

8-spline drive shaft

Our product sheet lists an 8-spline shaft. We confirm spline count, diameter and engagement length on the unit we quote.

Suffix check included

CBGj3100-2 (W-01-00021) is a manufacturer variant. We confirm the suffix before production so mismatched units do not reach your customers.

Drawing or sample matching

Send your drawing or old pump and we build to its flange, port and shaft configuration.

Final inspection before dispatch

Every order goes through final inspection at our factory before EXW handover.

CBGj3100 Gear Pump Technical Specifications

Displacement, pressure and speed come from the CBGj3 series table and are series reference values, not certified ratings for an individual unit.

Part number	W-01-00021 (W0100021)
Pump model	CBGj3100; variant CBGj3100-2, suffix to be confirmed
Cross reference	JHP3100, dimension and configuration check required
Pump type	External gear pump
Displacement	100 cm³/rev (series reference)
Rated / max pressure	20 / 25 MPa (200 / 250 bar), series reference
Rated / max speed	2200 / 2500 rpm (series reference)
Shaft	8-spline; count, diameter and engagement length verified per order
Flange, ports, rotation	Matched to your old pump or drawing
Machine references	Changlin ZLM50E-5, Changlin ZL50H

Not sure your pump is CBGj3100 or CBGj3100-2?Send a nameplate photo plus shaft and flange photos, and we will confirm the variant before you order.

Check My Pump Model

Which Changlin Loaders Use the W-01-00021 Pump?

Changlin ZLM50E-5 wheel loader

Application reference. Final fit is confirmed by machine serial number and old-pump matching.

Changlin ZL50H wheel loader

Application reference. Serial number and shaft check are required.

Dealer and distributor parts stock

A single verified W-01-00021 configuration for Changlin loader parts shelves.

Fleet maintenance and rebuild shops

Replacement for a worn CBGj3100 when the original part number is known.

OEM, Private Label and Bulk Orders for Gear Pumps

Configuration

Shaft, flange, port and rotation are built to your drawing or sample.

Private label

Your brand on the pump nameplate and packaging.

Packaging

Neutral or branded cartons, labels and part-number marking.

Mixed orders

Combine W-01-00021 with other gear pumps, tandem pumps, motors or valves from our range.

Send details

Part number, serial number, photos or drawing, and quantity.
Configuration check

We confirm shaft, flange, ports and suffix.
Sample or first batch

We build and inspect the sample for your approval.
Production

Volume production to the approved configuration.
Final inspection and EXW handover

Units are inspected, then handed over at our Hebei factory.

Pricing, MOQ and Trade Terms

Incoterms

EXW

Hebei, China factory

MOQ

Quoted per order

Depends on standard or private-label configuration

Pricing

Quantity-based quotation

Distributors can request price breaks by volume

Samples

Available on request

Configuration confirmed before the sample build

Inspection

Final inspection

Performed before every shipment

W-01-00021 Gear Pump FAQ

Is W-01-00021 the same pump as CBGj3100?: Yes. In our verified catalog, W-01-00021 maps to CBGj3100 for Changlin. CBGj3100-2 is a variant, so we confirm the suffix on your order.
Can a JHP3100 pump replace a CBGj3100?: Not automatically. JHP3100 is a cross-search reference, so the dimensions, shaft and ports must be checked against your old pump.
Does W-01-00021 fit SDLG loaders?: No SDLG application is listed. Our catalog applicability for this part is Changlin, with ZLM50E-5 and ZL50H as references.
Are W-01-00251, W-01-00112 or 803004063 interchangeable with W-01-00021?: Do not assume interchangeability. They are separate catalog configurations and require independent dimensional checks.
What do you need to confirm fitment?: We need the machine serial number, a nameplate photo, the spline count, the flange type and the port positions of your old pump.
Can you supply this pump under our brand?: Yes. We offer private label nameplates and packaging, and OEM builds to your drawing or sample.

Get a W-01-00021 Quote or Sample

Send us your part number, machine serial number, quantity and destination market, and we will quote EXW price and sample availability after checking the configuration.
