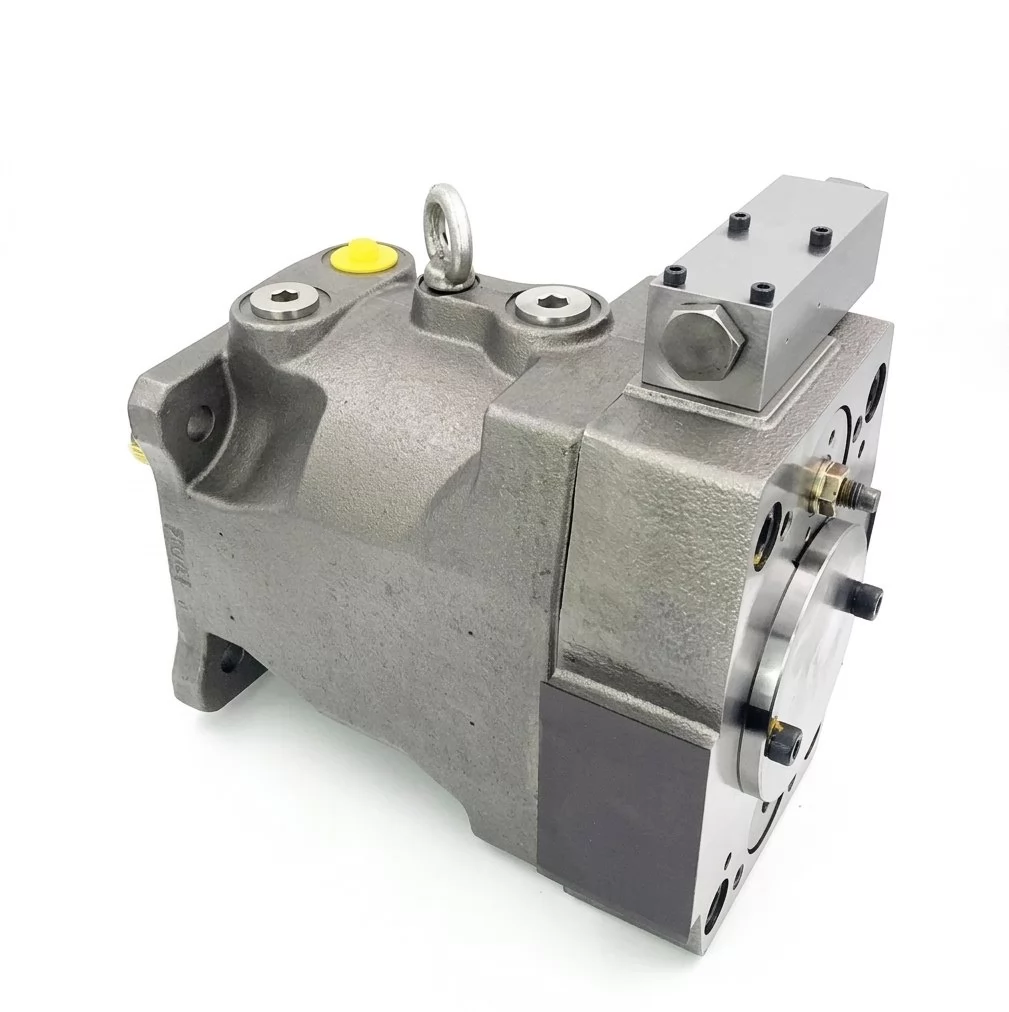

Looking for a cost-effective replacement for your open loop piston pump without compromising on performance? Olive Branch Hydraulics delivers precision-engineered PV Series axial piston pumps built for demanding industrial hydraulic systems — backed by 10+ years of manufacturing expertise and full cross-compatibility with major brand specifications.
Get a quote within 24 hours. MOQ as low as 1 unit for replacement orders.
| Feature | Benefit to Your Operation |
|---|---|
| Variable displacement design | Reduces energy consumption by up to 30% compared to fixed displacement pumps — lower operating costs per cycle |
| Swashplate angle control | Precise flow regulation from zero to maximum displacement without external valving |
| High-pressure rated housing | Continuous and peak pressure ratings are separate; confirm the full PV model and series |
| Through-drive capability | Powers auxiliary pumps from a single input shaft — reduces system footprint and installation cost |
| Low-noise piston rotary group | Operates below 75 dB(A) at rated speed — meets workplace noise regulations without add-on dampening |
| Hardened valve plate & cylinder block | Extended service life of 20,000+ hours under standard operating conditions |
| Multiple control options | Pressure compensation, load sensing, power limiting, and electrohydraulic control available |

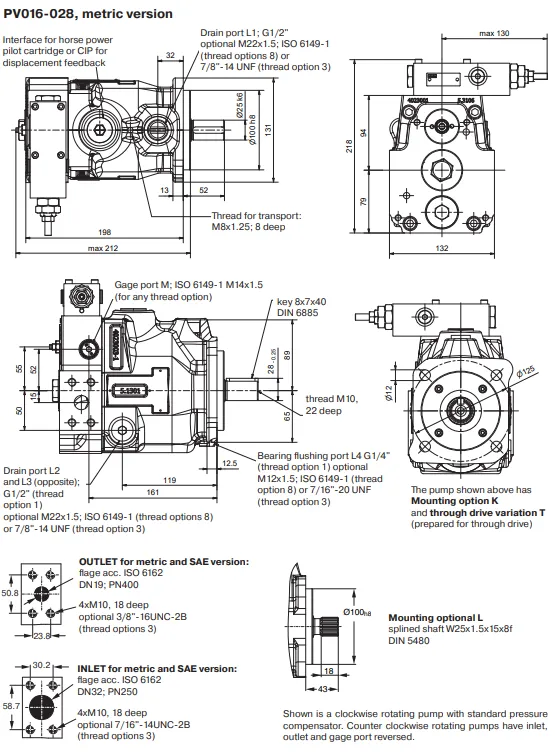

| Direct interchange dimensions | Drop-in replacement for major brand PV series pumps — zero modification to your existing circuit |
40–60% cost reduction vs. OEM-branded equivalents with identical performance specs
Lead time: 7–15 business days for standard models; 20–30 days for custom configurations
Strict quality control: 100% pressure-tested before shipment; batch traceability on every unit
Flexible order volume: From single-unit replacements to bulk fleet contracts
| Parameter | PV016 | PV020 | PV023 | PV032 | PV040 | PV046 | PV063 | PV080 | PV092 | PV140 | PV180 | PV270 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cc/rev) | 16 | 20 | 23 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 |
| Max Continuous Pressure (bar) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 315 |
| Max Peak Pressure (bar) | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 380 |
| Max Speed (RPM) | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2600 | 2400 | 2400 | 2200 | 2000 | 1800 |
| Theoretical Flow at Listed Speed (L/min) | 48 | 60 | 69 | 89.6 | 112 | 128.8 | 163.8 | 192 | 220.8 | 308 | 360 | 486 |
| Weight (kg) | 18 | 18 | 20 | 28 | 32 | 35 | 52 | 68 | 72 | 115 | 145 | 210 |
| Rotation | CW / CCW (specify at order) | |||||||||||
| Shaft Type | Splined / Keyed (SAE standard) | |||||||||||
| Port Type | SAE flange / BSP / NPT | |||||||||||
| Fluid Compatibility | Mineral oil, synthetic ester, HFC, HFDU | |||||||||||
| Operating Temp Range | -25°C to +80°C | |||||||||||
| Filtration Requirement | ISO 4406 18/16/13 or better |
All values measured per ISO 4409 test standards. Custom displacement sizes available on request.
| Control Type | Code | Description |
|---|---|---|
| Pressure Compensator | P | Maintains set maximum pressure; reduces displacement when system pressure reaches setting |
| Load Sensing | LS | Matches pump output to load demand; maximizes energy efficiency in multi-actuator systems |
| Power Limiting | W | Limits input torque to protect prime mover from overload |
| Electrohydraulic | E | Proportional solenoid control for remote/automated displacement adjustment |
| Manual Servo | M | Handwheel or lever-operated displacement control |
| Constant Horsepower | HPC | Hyperbolic P-Q curve for optimized prime mover utilization |
This high pressure variable pump is engineered for continuous-duty industrial hydraulic systems where reliability and energy efficiency are non-negotiable:
Common Replacement Scenario: Direct drop-in replacement for worn or failed axial piston pumps for industrial use — same mounting pattern, same port configuration, same control interface. Zero downtime for re-engineering.

Olive Branch Hydraulics operates as a white-label manufacturing partner for distributors, system integrators, and OEMs across 40+ countries.
| Service | Details |
|---|---|
| White-Label Packaging | Your brand name, logo, and part numbers on pump body, nameplate, and packaging |
| Custom Displacement | Non-standard cc/rev values engineered to your system requirements |
| Modified Port Configuration | Custom port locations, sizes, and thread standards |
| Special Shaft Options | Extended shafts, double-ended shafts, custom spline profiles |
| Integrated Controls | Factory-mounted proportional valves, sensors, or electronic controllers |
| Custom Coatings | Nickel plating, zinc-rich primer, or marine-grade coating for corrosive environments |
| Private Mold Development | Unique housing geometry for proprietary system integration |
| Certification Support | CE marking, documentation packages for specific market requirements |
| Kitting & Assembly | Pump + motor + manifold assemblies shipped as complete power units |
Minimum Order for Custom Projects: Typically 50 units (negotiable based on scope)
Development Timeline: 30–60 days from specification approval to first samples
Yes. Our PV series pumps are manufactured to the same dimensional standards (mounting flange, shaft, and port geometry) as major brand equivalents. They install directly into existing circuits without modification. We maintain a cross-reference database — send us your current part number and we will confirm the exact match.
Standard models ship within 7–15 business days from order confirmation. Custom configurations require 20–30 business days. We maintain safety stock of high-demand models (PV032, PV046, PV063, PV092) for faster dispatch.
Every order ships with installation manuals, hydraulic schematics, maintenance schedules, and test certificates. CAD files (STEP/IGES) available on request for system integration planning.
Standard 12-month warranty covering manufacturing defects. Extended warranty programs available for volume accounts. Our field failure rate is below 0.3% across all shipped units.
Absolutely. We encourage sample orders. No MOQ restriction for standard models — order one unit, validate performance in your application, then scale with confidence.
T/T, L/C, and trade assurance options available. Flexible terms for established accounts and repeat orders.
Dedicated technical support engineer assigned to each account. Remote troubleshooting, spare parts supply, and warranty claim processing typically completed within 48 hours.
Send us your specifications or existing part number. Our engineering team will confirm compatibility, provide pricing, and deliver a formal quotation within 24 hours.
