11C0763 P124-G30085BL54/G16NIG LiuGong CLG414 CLG416 Grader Gear Pump

11C0763 LiuGong CLG414 CLG416 Motor Grader Working Gear Pump

Olive Branch Hydraulics offers an aftermarket replacement enquiry for the 11C0763 hydraulic working pump used in LiuGong motor-grader applications. Supplier catalogues identify the complete model as P124-G30085BL54/G16NIG. This tandem gear-pump reference is also written with spaces as P124-G30 085BL54/G16NIG. Use the material number and complete model together when requesting a quotation.

Material number and model names

Supplier descriptions use hydraulic pump, working pump, tandem gear pump, double gear pump and LiuGong grader pump for this product reference. The full model remains more precise than these general names. We have not confirmed an additional independent whole-pump material number for 11C0763.

Motor grader applications

Guangxi Linqian supplier records identify 11C0763 for LiuGong CLG414 and CLG416 graders. A reproduced CLG414 parts manual also lists 11C0763 as a working pump within the 11C0767_000_00 assembly. This manual context helps locate the component in the machine; it does not establish that every grader year or serial configuration uses the same pump.

The manual lists other components in the same area, including another working-pump number. Those surrounding components are not treated as aliases for 11C0763. Provide the grader model, machine serial number, original nameplate and clear port photographs to confirm the correct replacement.

Technical parameters and section identification

The model contains G30 and G16 section-size designations. Exact displacement, section order, operating pressure, speed limits and flow must be checked for the selected assembly. Supplier records list an 18 kg net-weight reference; the actual offered configuration and shipment weight should be confirmed before dispatch.

The official Permco 124-series brochure describes a small-frame sleeve-bushing family with cast-iron construction, alloy-steel gear and shaft sets, and pressure-balanced wear plates. Series sizes cover 0.62–2.48 cubic inches per revolution, with speeds up to 3000 rpm. The pressure table varies by size rather than specifying one rating for all pumps. These family specifications are useful background and are not a test certificate for the exact tandem assembly offered here.

Ask for the confirmed assembly drawing and operating data before choosing pressure, speed or flow settings. Two sections share a drive shaft, so shaft loading and assembly speed require confirmation together with each section pressure. The inlet arrangement and circuit connections also need to match the machine.

Installation matching

The product photographs show a two-bolt flange. Check pilot diameter, mounting-hole centres, flange thickness and overall mounting clearance. Confirm spline count and profile, shaft diameter, shaft projection and coupling engagement. Use the original pump rotation arrow viewed from the shaft end as the rotation reference.

Identify every inlet and outlet, its connection type and dimensions, and the front/rear section assignments. Include hose and flange photographs when the old nameplate is incomplete. Do not substitute another P124 pump solely because the body looks similar or shares one model prefix.

Images and reference records

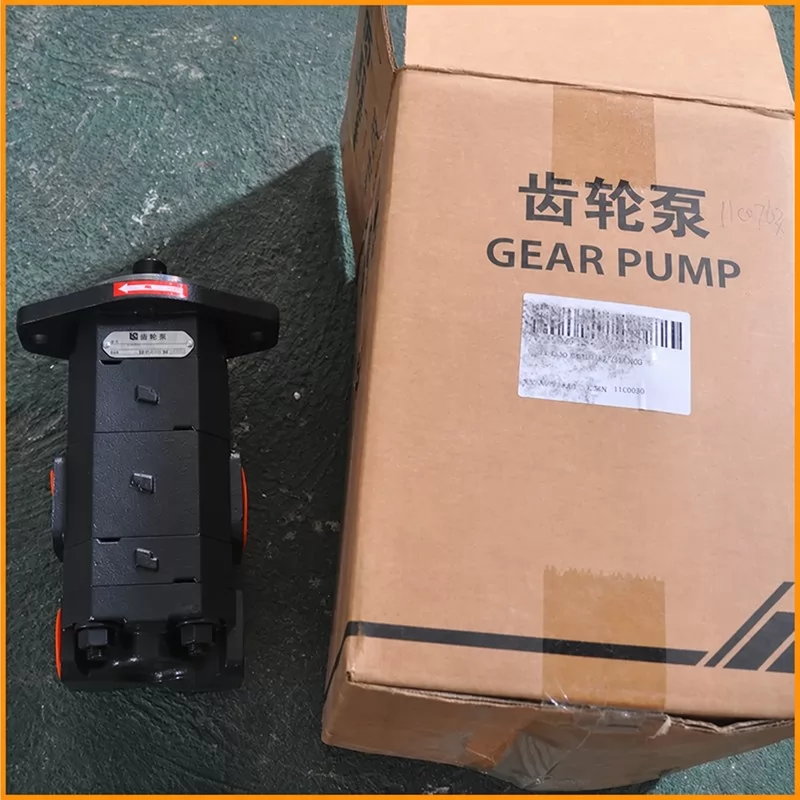

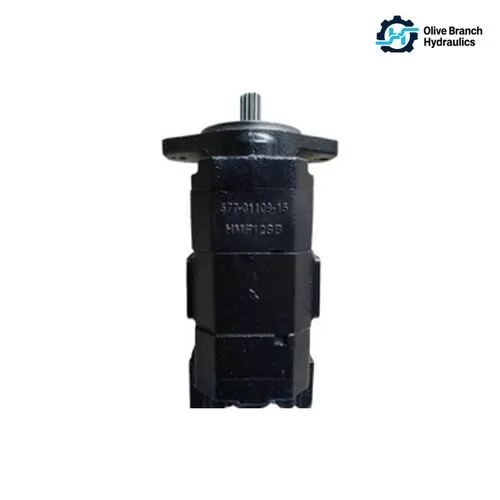

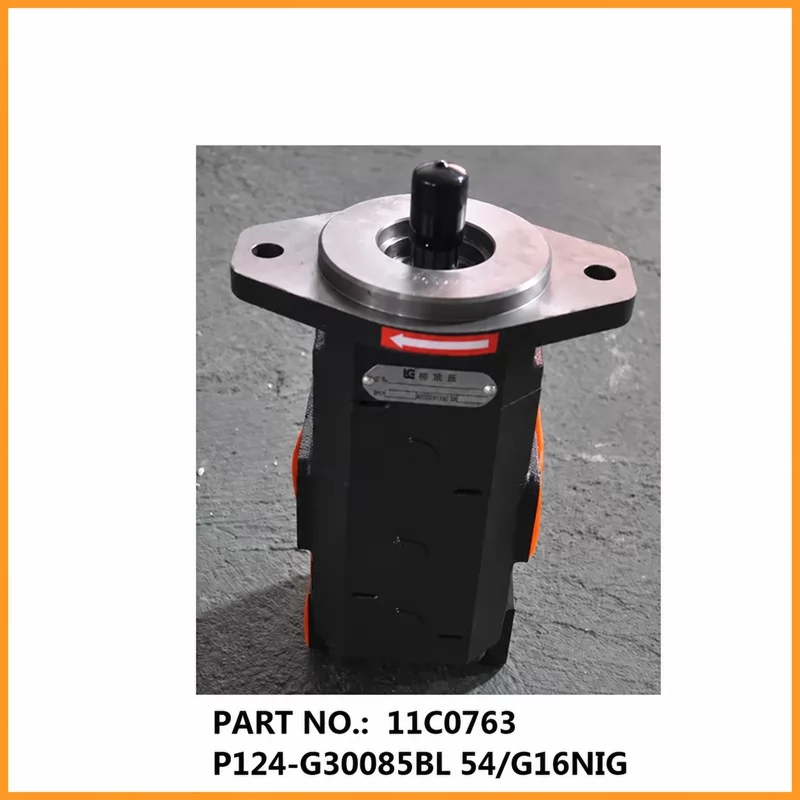

The gallery includes an Olive Branch product photograph and two external reference photographs: a pump view carrying the 11C0763/full-model identification and a pump with its labelled packaging. Third-party overlay watermarks have been removed. Edited image lettering is illustrative; use the written catalogue references for model identification. These images support identification; the final supplied assembly should be confirmed against the old sample and drawing.

Guangxi Linqian catalogue: 11C0763, P124-G30085BL54/G16NIG, CLG414/CLG416 and 18 kg reference.

CLG414 parts manual, July 2015 reference: 11C0763 in the working-pump assembly list.

Permco 124-series technical brochure: family construction and size-dependent operating range.

Request a quotation

For a 11C0763 LiuGong motor grader working-pump quotation, send quantity, destination, complete pump model, grader serial number and the shaft/flange/port photographs. Olive Branch Hydraulics will confirm the proposed configuration and technical conditions before supply.
