CBTD-F4 Series Hydraulic Gear Pump
Models and Technical Specifications
Displacement, Efficiency and Flow
| Model | Displacement (cm³/rev) | Efficiency ≥ (%) | Theoretical flow (L/min) at 2500 rpm |
|---|---|---|---|
| CBTD-F410 | 10 | 92 | 25.0 |
| CBTD-F412.5 | 12.5 | 92 | 31.25 |
| CBTD-F414 | 14 | 92 | 35.0 |
| CBTD-F416 | 16 | 92 | 40.0 |
| CBTD-F419.2 | 19.2 | 93 | 48.0 |
| CBTD-F420 | 20 | 93 | 50.0 |
| CBTD-F423 | 23 | 93 | 57.5 |
| CBTD-F425 | 25 | 93 | 62.5 |
| CBTD-F426.5 | 26.5 | 93 | 66.25 |
| CBTD-F430 | 30 | 93 | 75.0 |
| CBTD-F432 | 32 | 93 | 80.0 |
Pressure Ratings
| Model | Rated (MPa) | Maximum (MPa) |
|---|---|---|
| CBTD-F410 | 20 | 25 |
| CBTD-F412.5 | 20 | 25 |
| CBTD-F414 | 20 | 25 |
| CBTD-F416 | 20 | 25 |
| CBTD-F419.2 | 20 | 25 |
| CBTD-F420 | 20 | 25 |
| CBTD-F423 | 20 | 25 |
| CBTD-F425 | 20 | 25 |
| CBTD-F426.5 | 20 | 25 |
| CBTD-F430 | 20 | 25 |
| CBTD-F432 | 20 | 25 |
Speed Range
| Model | Minimum (rpm) | Rated (rpm) | Maximum (rpm) |
|---|---|---|---|
| CBTD-F410 | 600 | 2500 | 3000 |
| CBTD-F412.5 | 600 | 2500 | 3000 |
| CBTD-F414 | 600 | 2500 | 3000 |
| CBTD-F416 | 600 | 2500 | 3000 |
| CBTD-F419.2 | 600 | 2500 | 3000 |
| CBTD-F420 | 600 | 2500 | 3000 |
| CBTD-F423 | 600 | 2500 | 3000 |
| CBTD-F425 | 600 | 2500 | 3000 |
| CBTD-F426.5 | 600 | 2500 | 3000 |
| CBTD-F430 | 600 | 2500 | 3000 |
| CBTD-F432 | 600 | 2500 | 3000 |
Dimensions and Weight
| Model | L₁ (mm) | L (mm) | Weight (kg) |
|---|---|---|---|
| CBTD-F410 | 57 | 116 | 3.1 |
| CBTD-F412.5 | 58.3 | 118 | 3.2 |
| CBTD-F414 | 59.3 | 120 | 3.3 |
| CBTD-F416 | 60.3 | 122 | 3.4 |
| CBTD-F419.2 | 61.8 | 125 | 3.5 |
| CBTD-F420 | 62.5 | 127 | 3.5 |
| CBTD-F423 | 64 | 130 | 3.6 |
| CBTD-F425 | 65.8 | 133 | 3.7 |
| CBTD-F426.5 | Confirm | Confirm | Confirm |
| CBTD-F430 | 67.8 | 137 | 3.9 |
| CBTD-F432 | 69.5 | 141 | 4.0 |

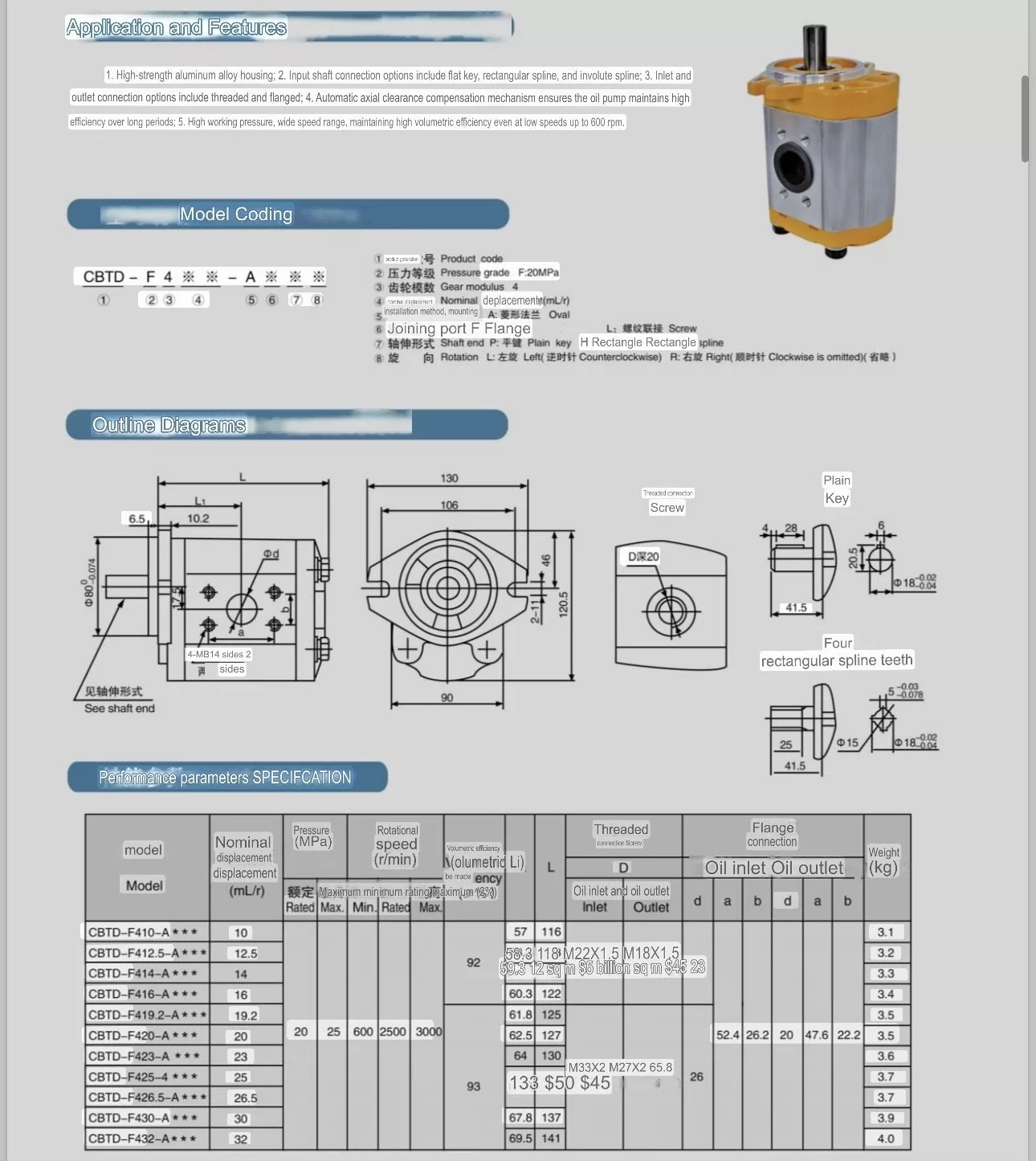

Specifications follow the supplied series drawing. Maximum pressure is a catalogue limit, not a continuous-duty guarantee. Flow is calculated as displacement × speed / 1000 and is not a measured delivery value. Length L excludes the projecting drive shaft; configuration-specific dimensions must be checked.
Mounting and Ordering Options
| Item | Specification |
|---|---|
| Mounting pilot | 80 mm |
| Mounting-slot centre distance | 106 mm |
| Mounting-slot width | 11 mm |
| Body | Aluminum alloy |
| Ports | Threaded or flange configuration: confirm complete code |
| Shaft options | Plain key or 4-tooth rectangular spline: confirm drawing |
| Rotation | CW or CCW configuration: confirm complete code and direction reference |
Product Information
Product Overview
CBTD series hydraulic gear pumps use an aluminum-alloy housing and are available in multiple displacement and drive configurations. This catalogue configuration uses an 80 mm mounting pilot and 106 mm mounting-slot spacing. Select the complete pump code to match displacement, shaft, ports and rotation.

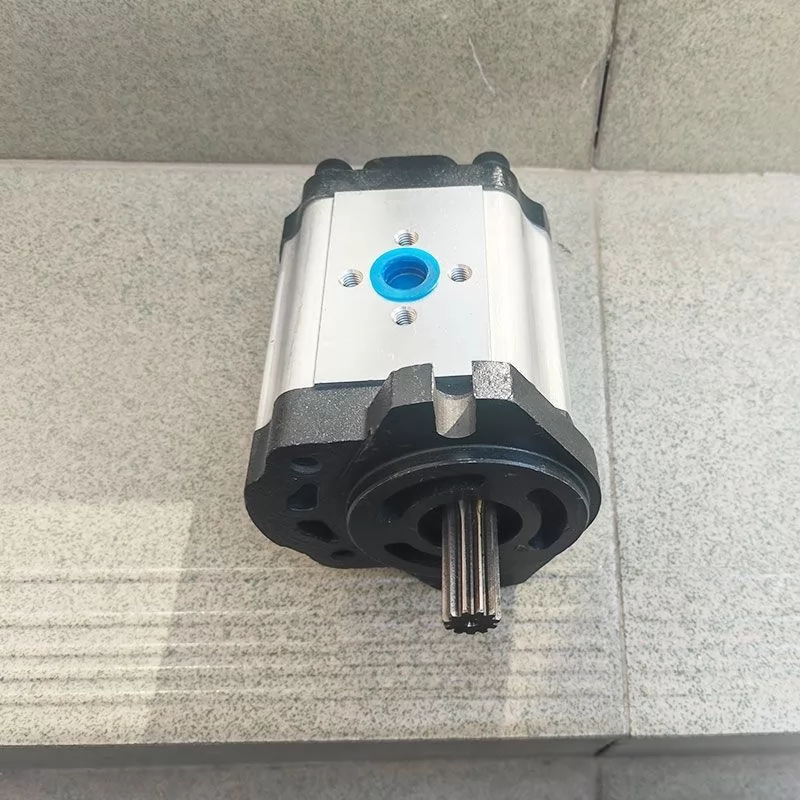

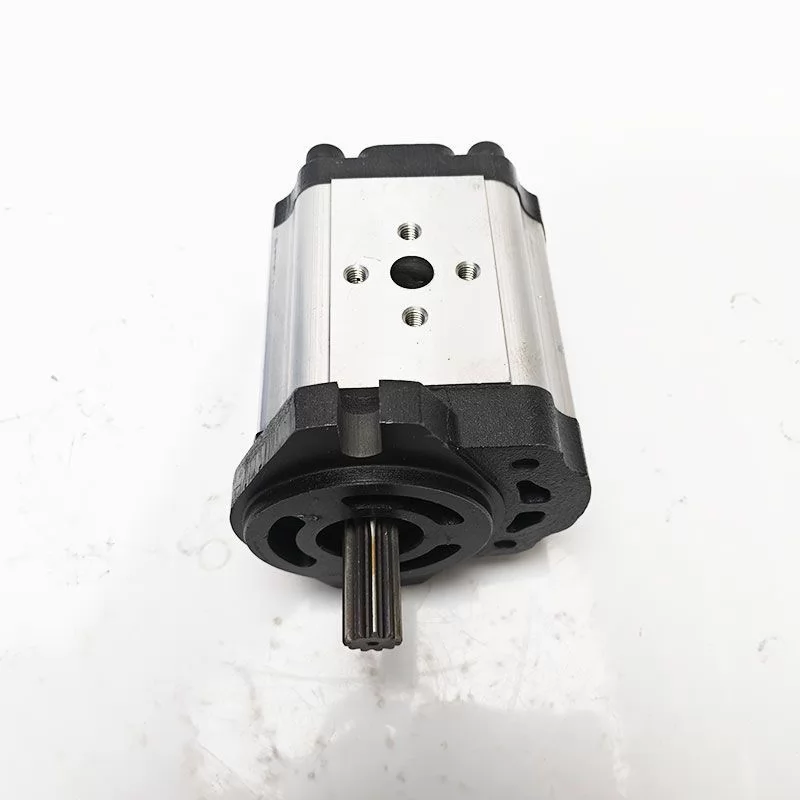

Product photographs illustrate the available pump configurations. Confirm the exact mounting, shaft and port arrangement against the selected full model code.
Part Numbers and Equipment Catalogue References
The following references identify pumps listed in equipment catalogues. They are not a claim that every pump in this series fits every listed machine. Match the complete code, machine serial number, mounting pilot, shaft and ports before ordering.
| Complete pump code | Part / material number | Equipment reference | Catalogue location |
|---|---|---|---|
| CBTD-F416-AFH4 | Pump model used as part number; no separate numeric code verified | Dalian CPD10/15/18 D-CA (older CPD10CA/15CA/18CA) | Dalian parts catalogue, printed page 37 |
Replacement Matching
Send the original pump code, equipment model and serial number, displacement, rotation direction, pilot diameter, mounting spacing, shaft dimensions and port details. We will check the requested configuration before confirming a replacement.
Material Number and Ordering Code Search Guide
| Search reference | Published pump / equipment listing | Number type |
|---|---|---|
| 70093711 | CBTD-F416-ALH4 working pump; FB20G | Purchaser material code in a JISCO Hongyun procurement notice, item 84; not a universal manufacturer OEM number |
| CBTD-F416-ALH4-AT | Hangcha CPD10–25 hydraulic gear pump | Supplier-listed complete pump part number |
| CBTDH-F416-ALH4-G00 | Hangcha J-series CPDS13–20 hydraulic pump | Related CBTDH supplier part-number reference; confirm drawing separately |
For enquiries using material code 70093711, quote CBTD-F416-ALH4 and FB20G as well. Customers searching for a CBTD-F416-ALH4-AT forklift pump or a CBTDH-F416-ALH4-G00 hydraulic pump should provide the machine serial number and old-pump dimensions. Similar series names can have different mounting, shaft, port and rotation specifications.
Product Overview
CBTD series hydraulic gear pumps use an aluminum-alloy housing and are available in multiple displacement and drive configurations. This catalogue configuration uses an 80 mm mounting pilot and 106 mm mounting-slot spacing. Select the complete pump code to match displacement, shaft, ports and rotation.
Product photographs illustrate the available pump configurations. Confirm the exact mounting, shaft and port arrangement against the selected full model code.
Part Numbers and Equipment Catalogue References
The following references identify pumps listed in equipment catalogues. They are not a claim that every pump in this series fits every listed machine. Match the complete code, machine serial number, mounting pilot, shaft and ports before ordering.
| Complete pump code | Part / material number | Equipment reference | Catalogue location |
|---|---|---|---|
| CBTD-F416-AFH4 | Pump model used as part number; no separate numeric code verified | Dalian CPD10/15/18 D-CA (older CPD10CA/15CA/18CA) | Dalian parts catalogue, printed page 37 |
Replacement Matching
Send the original pump code, equipment model and serial number, displacement, rotation direction, pilot diameter, mounting spacing, shaft dimensions and port details. We will check the requested configuration before confirming a replacement.
