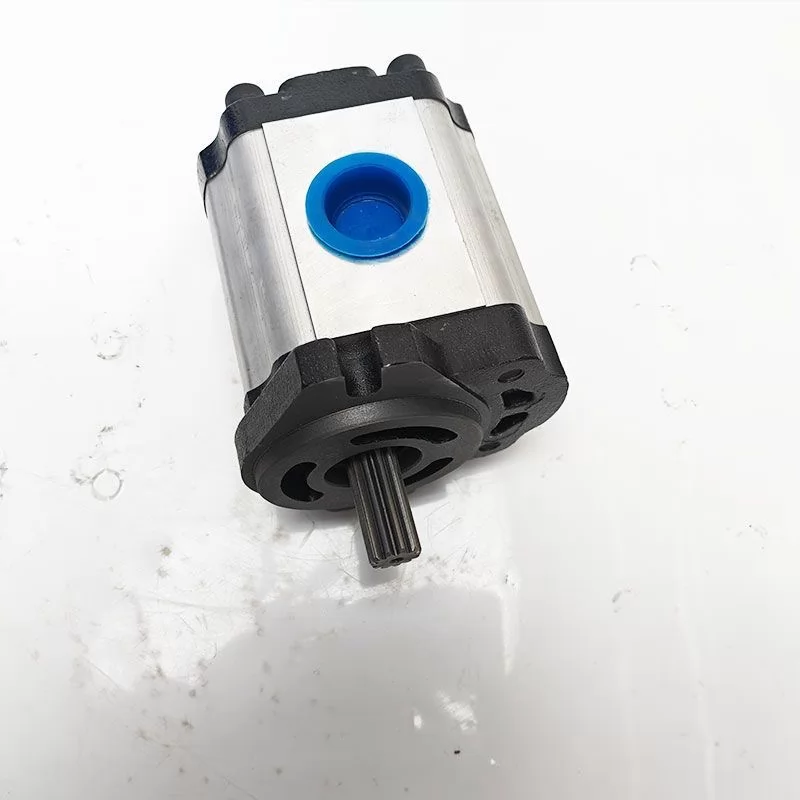

CBT-F4 Series Hydraulic Gear Pump
Models and Technical Specifications
Displacement, Efficiency and Flow
| Model | Displacement (cm³/rev) | Efficiency ≥ (%) | Theoretical flow (L/min) at 2500 rpm |
|---|---|---|---|
| CBT-F410 | 10 | 92 | 25.0 |
| CBT-F412.5 | 12.5 | 92 | 31.25 |
| CBT-F414 | 14 | 92 | 35.0 |
| CBT-F416 | 16 | 92 | 40.0 |
| CBT-F419.2 | 19.2 | 93 | 48.0 |
| CBT-F420 | 20 | 93 | 50.0 |
| CBT-F423 | 23 | 93 | 57.5 |
| CBT-F425 | 25 | 93 | 62.5 |
| CBT-F426.5 | 26.5 | 93 | 66.25 |
| CBT-F430 | 30 | 93 | 75.0 |
| CBT-F432 | 32 | 93 | 80.0 |
Pressure Ratings
| Model | Rated (MPa) | Maximum (MPa) |
|---|---|---|
| CBT-F410 | 20 | 25 |
| CBT-F412.5 | 20 | 25 |
| CBT-F414 | 20 | 25 |
| CBT-F416 | 20 | 25 |
| CBT-F419.2 | 20 | 25 |
| CBT-F420 | 20 | 25 |
| CBT-F423 | 20 | 25 |
| CBT-F425 | 20 | 25 |
| CBT-F426.5 | 20 | 25 |
| CBT-F430 | 20 | 25 |
| CBT-F432 | 20 | 25 |
Speed Range
| Model | Minimum (rpm) | Rated (rpm) | Maximum (rpm) |
|---|---|---|---|
| CBT-F410 | 600 | 2500 | 3000 |
| CBT-F412.5 | 600 | 2500 | 3000 |
| CBT-F414 | 600 | 2500 | 3000 |
| CBT-F416 | 600 | 2500 | 3000 |
| CBT-F419.2 | 600 | 2500 | 3000 |
| CBT-F420 | 600 | 2500 | 3000 |
| CBT-F423 | 600 | 2500 | 3000 |
| CBT-F425 | 600 | 2500 | 3000 |
| CBT-F426.5 | 600 | 2500 | 3000 |
| CBT-F430 | 600 | 2500 | 3000 |
| CBT-F432 | 600 | 2500 | 3000 |
Dimensions and Weight
| Model | L₁ (mm) | L (mm) | Weight (kg) |
|---|---|---|---|
| CBT-F410 | 57 | 116 | 3.1 |
| CBT-F412.5 | 58.3 | 118 | 3.2 |
| CBT-F414 | 59.3 | 120 | 3.3 |
| CBT-F416 | 60.3 | 122 | 3.4 |
| CBT-F419.2 | 61.8 | 125 | 3.5 |
| CBT-F420 | 62.5 | 127 | 3.5 |
| CBT-F423 | 64 | 130 | 3.6 |
| CBT-F425 | 65.8 | 133 | 3.7 |
| CBT-F426.5 | Confirm | Confirm | Confirm |
| CBT-F430 | 67.8 | 137 | 3.9 |
| CBT-F432 | 69.5 | 141 | 4.0 |
Specifications follow the supplied series drawing. Maximum pressure is a catalogue limit, not a continuous-duty guarantee. Flow is calculated as displacement × speed / 1000 and is not a measured delivery value. Length L excludes the projecting drive shaft; configuration-specific dimensions must be checked.
Mounting and Ordering Options
| Item | Specification |
|---|---|
| Mounting pilot | 82.55 mm |
| Mounting-slot centre distance | 106 mm |
| Mounting-slot width | 11 mm |
| Body | Aluminum alloy |
| Ports | Threaded or flange configuration: confirm complete code |
| Shaft options | Plain key; 4/6-tooth rectangular spline; 10-tooth SAE spline; 12-tooth involute spline: confirm drawing |
| Rotation | CW or CCW configuration: confirm complete code and direction reference |
Product Information
Product Overview
CBT series hydraulic gear pumps use an aluminum-alloy housing and are available in multiple displacement and drive configurations. This catalogue configuration uses an 82.55 mm mounting pilot and 106 mm mounting-slot spacing. Select the complete pump code to match displacement, shaft, ports and rotation.

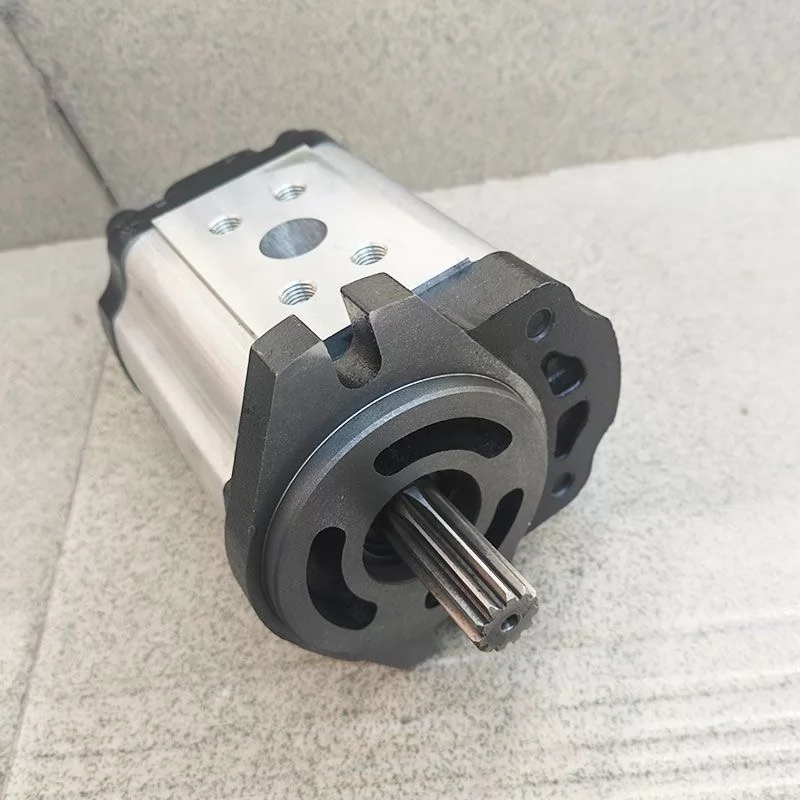

Product photographs illustrate the available pump configurations. Confirm the exact mounting, shaft and port arrangement against the selected full model code.
Part Numbers and Equipment Catalogue References
The following references identify pumps listed in equipment catalogues. They are not a claim that every pump in this series fits every listed machine. Match the complete code, machine serial number, mounting pilot, shaft and ports before ordering.
| Complete pump code | Part / material number | Equipment reference | Catalogue location |
|---|---|---|---|
| CBT-F425-AFH6L | 11001456 | CPC10/15/18HG26; CPCD10/15/18HG26 | Forklift power-system parts table |
| CBT-F432-AFH6L-G00 | No separate numeric code verified | Hangcha CPQD20/25N-RW26-Y | R-series parts catalogue: oil-pump assembly |
Replacement Matching
Send the original pump code, equipment model and serial number, displacement, rotation direction, pilot diameter, mounting spacing, shaft dimensions and port details. We will check the requested configuration before confirming a replacement.
Additional OEM and Material Number Search References
Published supplier catalogues list the following part numbers with specific CBT-F4 pump variants. These are enquiry references: retain the complete shaft, port and rotation suffix when selecting a replacement.
| Part number / search spelling | Published pump reference | Published equipment reference |
|---|---|---|
| 67110-13620-71 / 671101362071 | CBT-F426.5-AFΦ | Toyota 5–6F/20–30; 1DZ, 1Z or 4Y configuration |
| 3EB-60-12410 / 3EB6012410 | CBT-F430-AFΦL | Komatsu FD30-11; 4D95S or C240 |
| 37B-1KB-2030 / 37B1KB2030 | CBT-F432-AFΦL | Komatsu FD30-11; 4D95L |
| A93J7-10001 / A93J710001 | CBT-F430-AFH6L | Hangcha H-series CPQD20–30HB / 492G2; Heli CPCD30 / 490 supplier listing |
| 37B-1KB-2020 / 37B1KB2020 | CBT-F430-AFΦL supplier listing | Komatsu FD30-11 / 4D95S enquiry |
Looking for a 67110-13620-71 hydraulic pump, a 3EB-60-12410 gear pump, a 37B-1KB-2030 replacement or an A93J7-10001 forklift pump? Send the number and an old-pump photograph for configuration matching. Numbers in this table identify different pump configurations.
Product Overview
CBT series hydraulic gear pumps use an aluminum-alloy housing and are available in multiple displacement and drive configurations. This catalogue configuration uses an 82.55 mm mounting pilot and 106 mm mounting-slot spacing. Select the complete pump code to match displacement, shaft, ports and rotation.
Product photographs illustrate the available pump configurations. Confirm the exact mounting, shaft and port arrangement against the selected full model code.
Part Numbers and Equipment Catalogue References
The following references identify pumps listed in equipment catalogues. They are not a claim that every pump in this series fits every listed machine. Match the complete code, machine serial number, mounting pilot, shaft and ports before ordering.
| Complete pump code | Part / material number | Equipment reference | Catalogue location |
|---|---|---|---|
| CBT-F425-AFH6L | 11001456 | CPC10/15/18HG26; CPCD10/15/18HG26 | Forklift power-system parts table |
| CBT-F432-AFH6L-G00 | No separate numeric code verified | Hangcha CPQD20/25N-RW26-Y | R-series parts catalogue: oil-pump assembly |
Replacement Matching
Send the original pump code, equipment model and serial number, displacement, rotation direction, pilot diameter, mounting spacing, shaft dimensions and port details. We will check the requested configuration before confirming a replacement.
