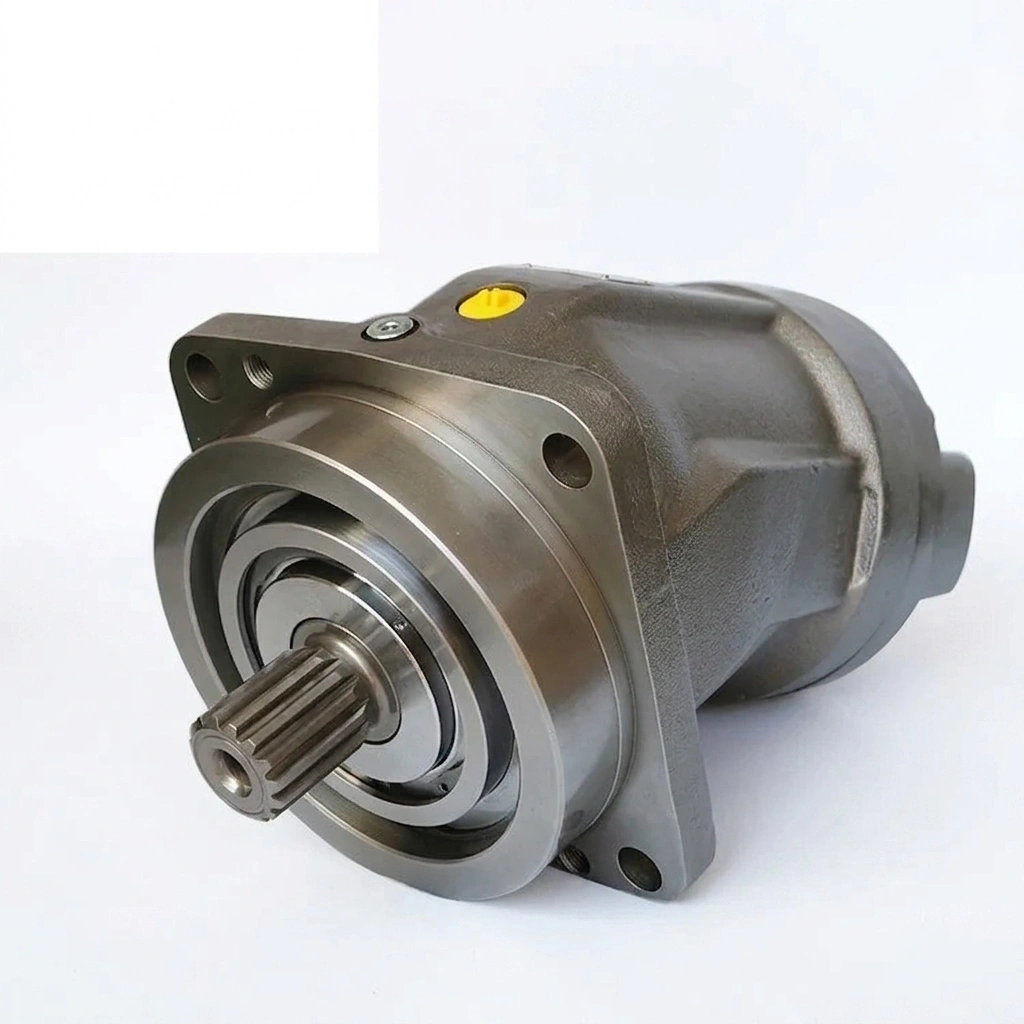

A2FM Rexroth Piston Motor is supplied through Olive Branch Hydraulics. Series specifications are selection references. Confirm the complete model code and ordered configuration for pressure, speed, displacement, rotation, shaft, flange and ports. Continuous, intermittent and peak ratings must be distinguished; maximum values are not simultaneous operating limits. Machine fitment requires the OEM part number and machine serial number.
Backed by 10+ years of hydraulic motor manufacturing, strict quality control protocols, and full certification, we supply procurement teams worldwide who need dependable Rexroth A2FM motor replacement units at competitive wholesale pricing with shorter lead times.
Every unit matches Rexroth A2FM mounting patterns, shaft profiles, and port configurations. No adapter plates. No re-engineering. Swap and run.
Hardened cylinder blocks, precision-lapped valve plates, and high-load bearings deliver consistent torque output across the full pressure range — rated up to 400 bar peak.
Procurement managers report 30–50% savings versus OEM list pricing while maintaining equivalent performance life in field applications including construction machinery, marine winches, drilling rigs, and injection molding machines.
High-output manufacturing capacity means standard models ship within 7–15 business days. Volume orders benefit from dedicated production scheduling.
Each motor ships with a test report, material certificates, and full dimensional inspection records. order-specific quality documentation line.
| Parameter | Specification Range |
|---|---|
| Model Series | A2FM10, A2FM16, A2FM23, A2FM28, A2FM32, A2FM45, A2FM56, A2FM63, A2FM80, A2FM90, A2FM107, A2FM125, A2FM160, A2FM180, A2FM200, A2FM250, A2FM355, A2FM500, A2FM1000 |
| Type | Axial piston, fixed displacement |
| Displacement | 10 cc/rev – 1000 cc/rev |
| Rated Pressure | 250 – 350 bar (model dependent) |
| Peak Pressure | 400 bar |
| Rated Speed | 1800 – 6300 rpm (model dependent) |
| Mounting Flange | SAE / ISO standard, matches Rexroth original |
| Shaft Options | Splined (DIN 5480), cylindrical, tapered |
| Port Type | SAE flange / BSP / metric thread |
| Rotation | CW / CCW (specify at order) |
| Fluid Compatibility | Mineral oil (HLP), biodegradable fluids (HETG, HEPG) on request |
| Operating Temperature | -25°C to +80°C (standard seals) |
| Weight Range | 2.5 kg (A2FM10) – 260 kg (A2FM1000) |

| Service | Details |
|---|---|
| White-Label Packaging | Your brand, your box. Custom labels, manuals, and packaging design available at no minimum order. |
| Custom Shaft Configurations | Non-standard spline counts, extended shafts, or dual-shaft outputs manufactured to drawing. |
| Modified Port Positions | Rotated or relocated ports to fit tight machine envelopes. |
| Special Seal Kits | Viton, HNBR, or PTFE seals for extreme temperature or chemical exposure applications. |
| Private Mold / Housing Modifications | Cast or machined housing changes for unique integration requirements. |
| Dedicated QC Protocol | Customer-specific inspection checklists, third-party witness testing, or additional pressure/leak testing per your standards. |
| Volume Pricing Tiers | Scaled pricing for 50+, 200+, and 1000+ unit annual commitments. |
Minimum Order Quantity: 1 pc for standard models | Custom orders from 10 pcs
Lead Time: 7–15 days (standard) | 20–30 days (custom/OEM)

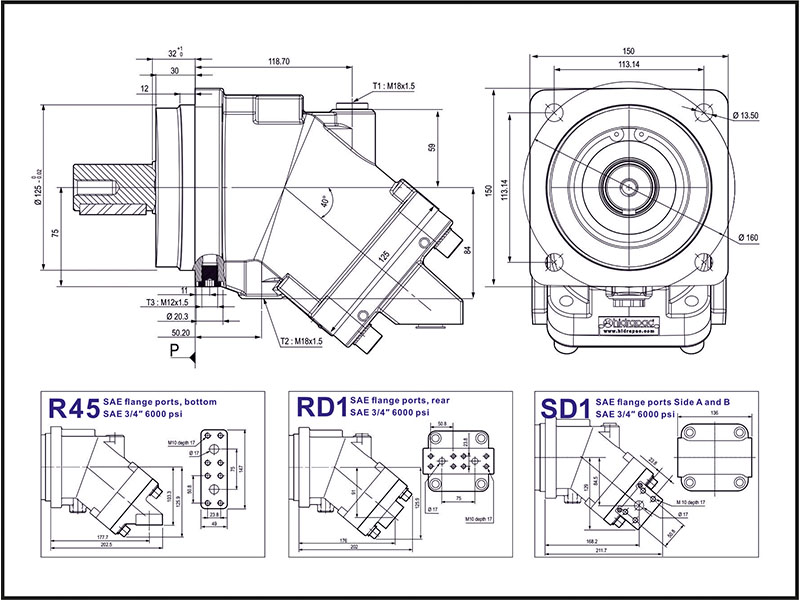

Yes. Our A2FM series matches all critical interface dimensions — mounting flange bolt pattern, shaft spline profile, and hydraulic port locations — per original Rexroth technical drawings. They function as drop-in replacements in systems originally designed for Rexroth A2FM motors.
Our facility operates under ISO 9001 quality management. Products are manufactured with full material traceability, 100% pressure testing, and dimensional inspection. We can provide CE documentation and additional third-party test reports on request.
Standard displacement models (A2FM10 through A2FM200) ship within 7–15 business days for quantities up to 50 units. Larger volume or custom-specification orders typically require 20–30 days. We assign a dedicated project coordinator for orders exceeding 100 units.
Absolutely. Send us the complete Rexroth model code (e.g., A2FM63/61W-VBB040) and we will confirm cross-reference compatibility, pricing, and delivery within 24 hours.
Yes. Our engineering team provides installation guidance, system matching recommendations, and troubleshooting support. Warranty coverage is included on all units per our standard terms.
Pricing depends on model size, order quantity, and customization level. As a direct manufacturer, we eliminate distributor markups. Request a quote with your specific model and volume for a detailed price breakdown within one business day.
Ready to reduce procurement costs without sacrificing hydraulic performance? Our team responds to quote requests within 24 hours with full pricing, lead time, and technical confirmation.
→ [Request a Quote Now]
Send us your required model numbers, quantities, and any custom specifications. We'll deliver a complete proposal — including FOB pricing, packaging options, and production timeline — so you can make a fast, informed purchasing decision.
Contact Olive Branch Hydraulics
Olive Branch Hydraulics — Your reliable A2FM hydraulic motor supplier for OEM-quality replacements at wholesale pricing
