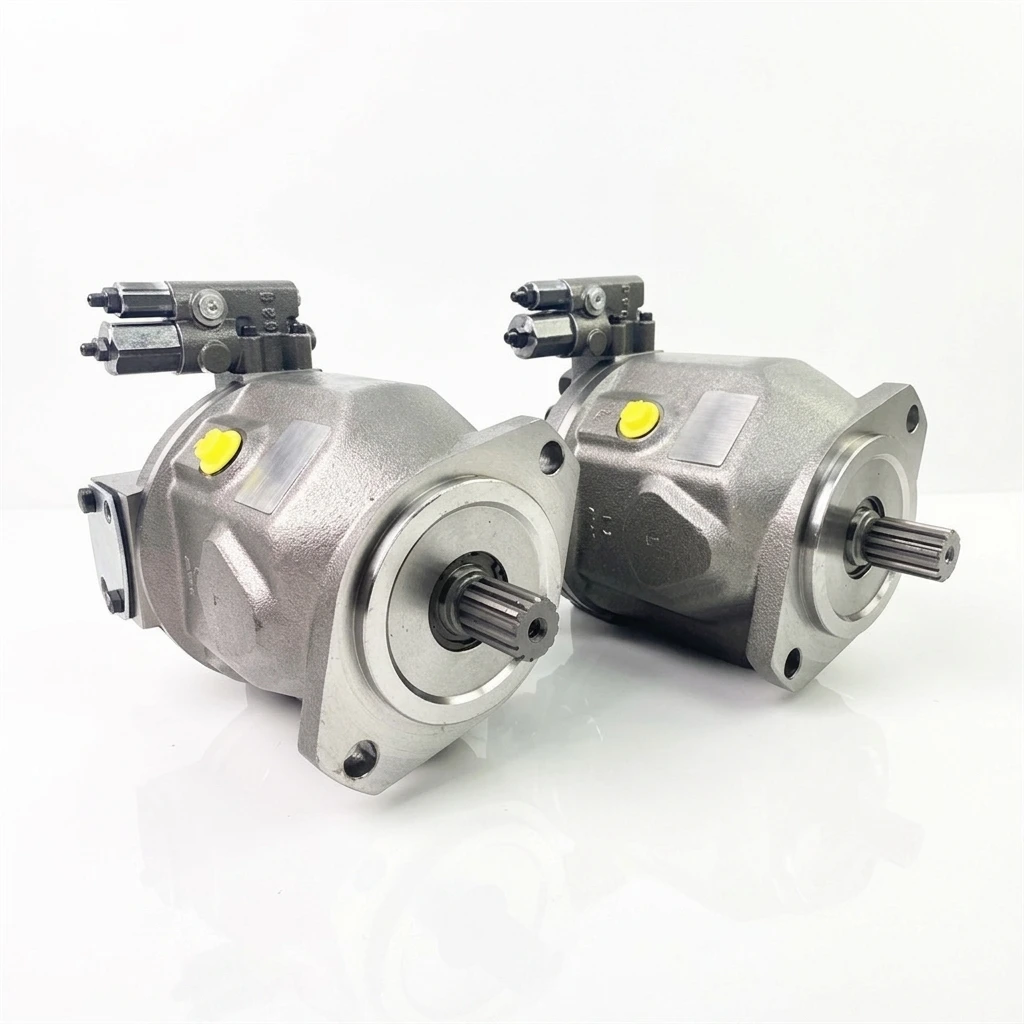

A10VSO Variable Piston Pumps is supplied through Olive Branch Hydraulics. Series specifications are selection references. Confirm the complete model code and ordered configuration for pressure, speed, displacement, rotation, shaft, flange and ports. Continuous, intermittent and peak ratings must be distinguished; maximum values are not simultaneous operating limits. Machine fitment requires the OEM part number and machine serial number.
Backed by 10+ years of hydraulic component manufacturing and strict quality control protocols, we supply procurement managers across 60+ countries who need consistent A10VSO piston pump price list transparency, white-label flexibility, and zero-hassle replacements.
| Feature | Benefit to Your Operation |
|---|---|
| Variable displacement swashplate design | Matches flow output to real-time system demand — reduces energy waste by up to 30% |
| High-grade alloy steel pistons | Extended service life (8,000+ hours) under continuous heavy-load cycles |
| Through-drive capability | Powers auxiliary pumps from a single input shaft — simplifies your hydraulic circuit |
| Low noise emission (≤ 76 dB at rated speed) | Meets workplace safety standards without additional acoustic enclosures |
| Wide viscosity range compatibility | Operates reliably with HLP, HVLP, and biodegradable fluids |
| Parameter | Specification Range |
|---|---|
| Displacement | 18 / 28 / 45 / 71 / 100 / 140 mL/rev |
| Rated Pressure | 280 bar (continuous) |
| Peak Pressure | 350 bar (intermittent) |
| Speed Range | 500 – 3,000 rpm (size-dependent) |
| Drive Shaft | Splined / Keyed (DIN 5480 / SAE) |
| Control Type | DR / DFR / DFLR / DFE (pressure, flow, power limiting) |
| Mounting | ISO 3019-2 flange |
| Port Connection | SAE / BSP / Metric thread options |
| Fluid Temperature | -25°C to +90°C |
| Weight Range | 15 kg (size 18) – 95 kg (size 140) |
| Seal Material | FKM (Viton) standard; NBR available on request |

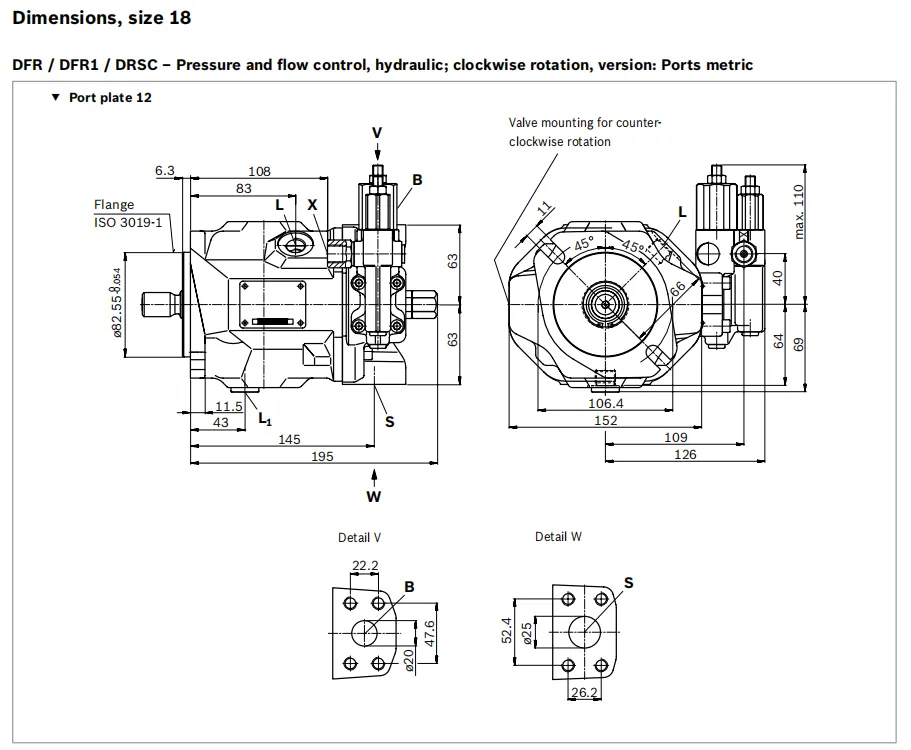

All specifications conform to ISO 4391 and are validated through third-party testing. Full dimensional drawings available upon request.

As a dedicated A10VSO variable displacement pump manufacturer, we support full white-label and custom packaging programs designed for distributors and system integrators:
Yes. Our A10VSO hydraulic pump replacement series matches OEM dimensional specs, port geometry, and performance curves. It installs into existing systems without modification.
Standard models (size 18–100): 3–7 business days. Large-displacement units (size 140) or custom-control variants: 10–15 business days. We maintain safety stock for high-demand SKUs.
Absolutely. Submit an inquiry with your required sizes and annual volume estimate, and we will send a detailed A10VSO piston pump price list within 24 hours.
Yes. Our engineering team provides installation guidance, troubleshooting support, and system-matching recommendations at no additional cost.
Our facility holds ISO 9001:2015 certification. Products are tested to ISO 4391 standards. CE documentation and test reports are supplied with every shipment upon request.
No rigid MOQ. We support sample orders (1–2 units) for validation, with scaled pricing for Rexroth A10VSO pump wholesale volumes.
Stop overpaying for brand-name markups or waiting on unreliable supply chains.
Send us your specifications today:
Our sales engineering team responds within 24 hours with pricing, lead time, and technical documentation.
