9D650-56A030000A0 9D20-593100 CBGJ2050/2050 Foton Lovol FL936F Tandem Gear Pump

9D650-56A030000A0 CBGJ2050/2050 tandem hydraulic gear pump

Olive Branch Hydraulics supplies aftermarket tandem gear pumps matched to the original mounting and hydraulic configuration. The supplied reference plate identifies material code 9D650-56A030000A0 and model CBGj 2050/2050. Its readable ratings provide a useful starting point for identifying the pump rather than relying only on a general loader-family description.

The photographed unit is marked left-hand rotation, rated pressure 20 MPa and rated speed 2200 r/min. Those values describe the reference unit. They do not establish maximum pressure, maximum speed or the performance of every replacement offered under a similar model name. The quotation should identify the agreed rotation and performance limits of the actual supplied pump.

Material numbers and alternate model searches

Compatible-equipment references

Equipment names are identification leads for customers searching by machine model. Production changes can alter the pump drive, port orientation or mounting arrangement. Please provide the machine model and serial number, the old pump material number, its full model suffix and clear views of the shaft end and oil connections. A matching engine model alone is insufficient to confirm installation.

Hydraulic ratings and flow selection

The reference plate pressure converts from 20 MPa to 200 bar. The printed 2200 r/min is a rated-speed reference rather than a promise that every hydraulic system should operate at that speed. Verify the engine-to-pump drive ratio, actual circuit pressure and the permissible limits for each section. The 50/50 model-size interpretation requires an exact displacement sheet before it is used as a certified displacement specification.

Once displacement is confirmed, calculate each section separately: theoretical flow in L/min equals displacement in cm³/rev multiplied by pump rpm, divided by 1000. Actual flow also depends on volumetric efficiency, oil viscosity and operating pressure. Request a test report when a defined flow at a defined pressure and speed is required.

Mounting, spline and port confirmation

Measure the shaft outside diameter, spline profile, tooth count and engagement length. Record the locating pilot, mounting bolt centres and flange thickness. Identify the inlet and both outlet connections, including bore diameter, flange bolt pitch, threads and seals. Establish the rotation convention from the shaft end and compare it with the original direction marking before installation.

The FL936F coupling appears in supplier lists as 9D550-54A000004A0 / 9D20-590011. Its published description includes 6/10 splines, a 30 mm reference, length 74 mm and outside diameter 50 mm. These are separate coupling references: they do not make both spline counts pump-shaft specifications, and the coupling numbers are not complete pump numbers.

Photographs and order preparation

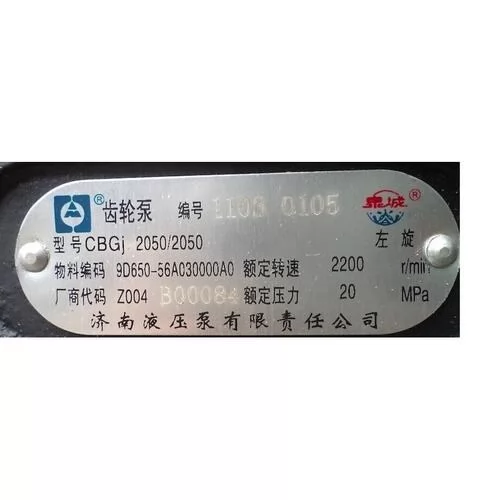

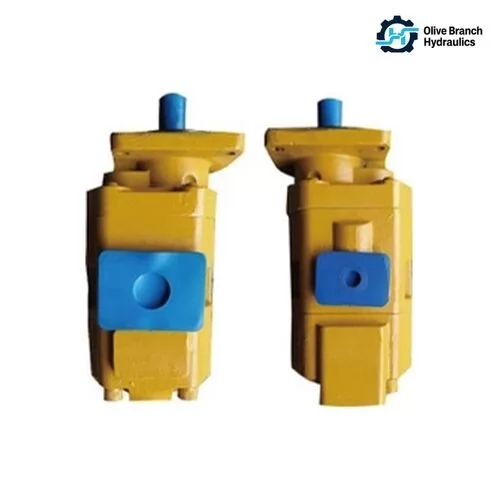

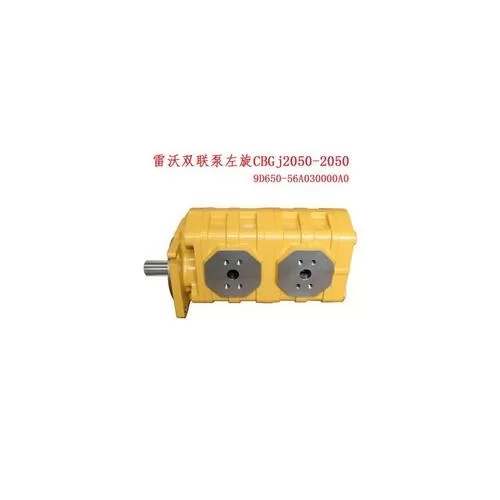

The gallery includes an Olive Branch branded pump image, a side view and the readable reference nameplate. Captions and physical markings support identification; final replacement branding and colour are confirmed with the order. Serial numbers and factory codes identify a photographed unit and should not be treated as additional material numbers.

For a quotation, send quantity, destination and the original pump information. Olive Branch Hydraulics can discuss sample matching, OEM/ODM and the inspection requirements agreed for the order. Confirm the final drawing, ratings and rotation before shipment.

Frequently asked questions

Can I search by 9D20-593100? Yes. It is included as a supplier-associated pump reference, with a requirement to compare the original configuration.

Are CBGJ2050/2050 and JHP2050/2050A automatically interchangeable? No. Similar listings and size codes require a comparison of mounting, shaft, ports, rotation and performance.

Is 20 MPa the maximum pressure? The visible plate labels it rated pressure. Maximum and intermittent pressure require separate confirmation.
