4120006298 / 4120006429 SDLG L968F Working Hydraulic Gear Pump

4120006298 SDLG Working Hydraulic Gear Pump

The 4120006298 working hydraulic gear pump is a wheel-loader replacement reference found in supplier catalogues for SDLG L968F and L958F. The supplied Olive Branch product pack uses the LG968F equipment spelling. Product photographs show an assembly with two pump sections, a splined input shaft and separate side-port connections. Enquiries should identify the complete assembly rather than only the machine brand.

Olive Branch Hydraulics offers aftermarket configuration matching using the old pump number, machine serial number and physical interfaces. Related 4120006429 working-pump references are included below to help buyers identify catalogue results. Their presence on this page does not establish universal interchange between every production version.

Material Numbers and Catalogue Search References

The 1124232290 number appears with 4120006298 in a Woooyeah product title. Another parts supplier pairs 4120006298 with 4120005045. For the related assembly, Woooyeah pairs 4120006429 with 1124232300, while a wheel-loader parts listing uses F1120-4120006429. These are useful catalogue associations for an enquiry; compare the original assembly and machine specification before selecting a replacement.

The 4120006298234 number is described as a pump sealing-ring kit in a related supplier listing. A seal kit is a service item and must not be quoted as the whole hydraulic pump. Send any suffix, additional stamped code or manufacturer name found on your old unit so that an abbreviated search reference does not hide a configuration difference.

Equipment Applications and Production Variants

For 4120006298, direct supplier listings identify SDLG L968F and L958F wheel loaders. For 4120006429, the available listings identify L968F and also use LG968F, LG968 or LG968V references. Confirm the exact year and serial number when comparing these versions. A supplier's general category covering additional SDLG machines is not a compatibility list for this individual pump.

The product is described as a working or implement hydraulic pump. Confirm the circuit served by each section against the installed machine arrangement. Do not choose a steering pump, transmission pump or unrelated loader pump merely because a listing includes the same loader family.

Technical Parameters and Configuration Confirmation

The available product listings establish the material references, pump category and equipment associations, but do not provide a verified displacement, rated pressure, maximum pressure or speed sheet for this exact assembly. The parameters table records these fields explicitly for confirmation rather than assigning values from another gear-pump series. A part number is not a displacement value.

Request the displacement and permitted operating conditions of each section, together with a matching assembly drawing and test data. Flow should be stated with its operating speed and test conditions. Confirm the front and rear section interfaces independently; a matching front flange alone does not establish a matching rear pump.

Published supplier logistics information differs between listings. Shipping-package dimensions and gross weights must not be used as the pump's installation envelope or net mass. Obtain the actual overall length, flange dimensions and supplied net weight before arranging installation or transport.

Shaft, Mounting and Oil-Port Checks

The reference image set shows a splined input shaft. Verify the tooth count, spline diameter, shaft projection and coupling engagement against the removed pump. Check the locating pilot, mounting-hole arrangement and bolt spacing. For the side ports, measure the opening and the flange bolt pattern on both pump sections, and identify inlet and outlet positions.

Confirm rotation as viewed from the shaft end. Include photographs of the opposite side and rear section when requesting a replacement. If the loader has been repaired with a different pump, provide the current nameplate and measured dimensions as well as the original machine number.

Images, Identification and Ordering

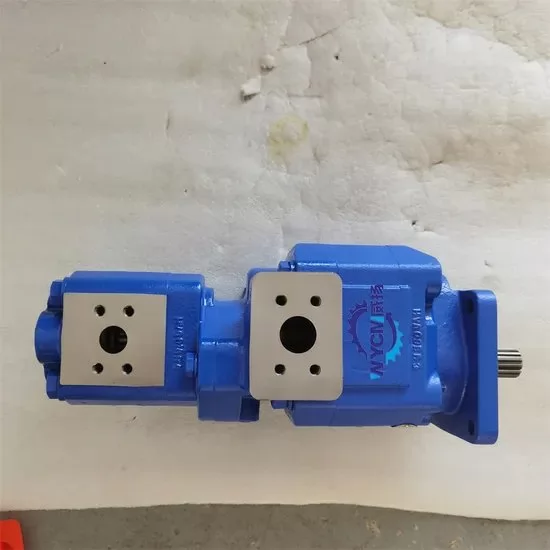

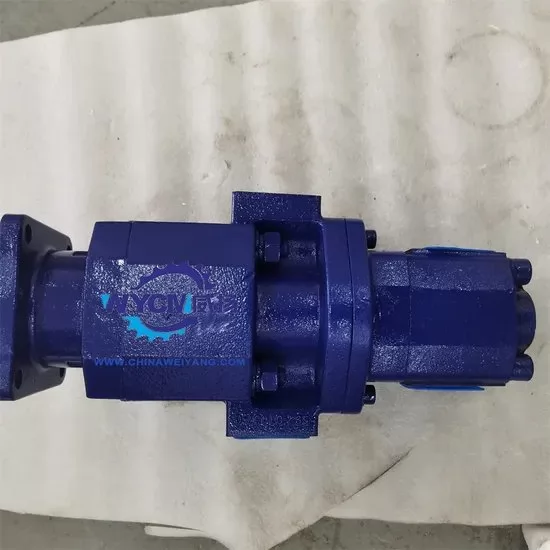

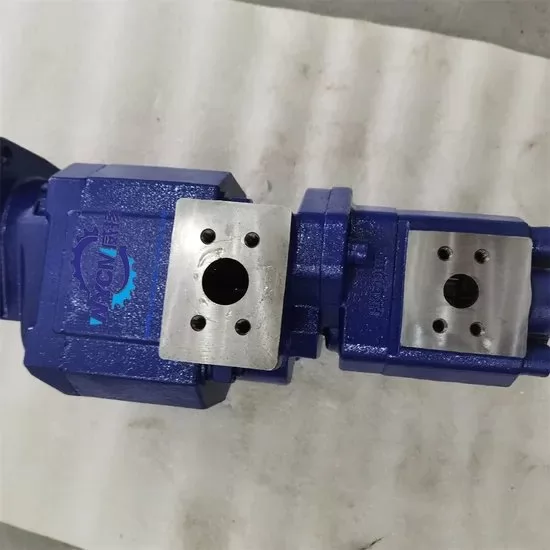

The gallery contains an Olive Branch product-pack image and three different external supplier photographs showing the body and port faces. Original supplier markings remain visible on the reference images. Confirm the appearance and configuration of the actual supplied unit in the quotation.

For a 4120006298 hydraulic pump, 1124232290 gear pump or SDLG L968F working-pump enquiry, send the old nameplate, loader serial number, shaft and port photos, required quantity and delivery destination. If your machine uses 4120006429 or 1124232300, include that exact number so the correct assembly can be selected.

Reference Notes

Number and application references come from Shandong Weiman, Shandong Weiyang, Woooyeah and wheel-loader parts supplier catalogues. Equipment brands identify application references. This page describes aftermarket matching and does not claim a documented OEM supersession between all listed numbers.
