4120000684 CBGJ3166 Hydraulic Gear Pump For SDLG LG956L LG958
| Parameter | Specification / verification |
|---|---|
| Part number | 4120000684 |
| Model | CBGJ3166 / CBGj3166 |
| Search reference | JHP3166; dimensions must be checked |
| Pump type | Single external hydraulic gear pump |
| Application references | SDLG LG956L / LG958; verify machine serial number |
| Displacement — series reference | 166 cm³/rev |
| Rated / maximum pressure — series reference | 20 / 25 MPa (200 / 250 bar) |
| Rated / maximum speed — series reference | 2200 / 2500 rpm |
| Exact unit operating limits | Confirm against supplied configuration; series figures are not unit certification |
| Shaft, spline count and rotation | Confirm from original pump and drawing |
| Flange and oil ports | Confirm dimensions and orientation before order |
| Weight and materials | Confirm for selected configuration |
| Separate configurations | 4120001715 / JHP3160; 4120002513 / JHP3160S — do not assume interchangeability |
| Supplier | Olive Branch Hydraulics, Hebei, China |
| Supply | Aftermarket replacement; EXW; OEM/ODM requests reviewed by drawing or sample |

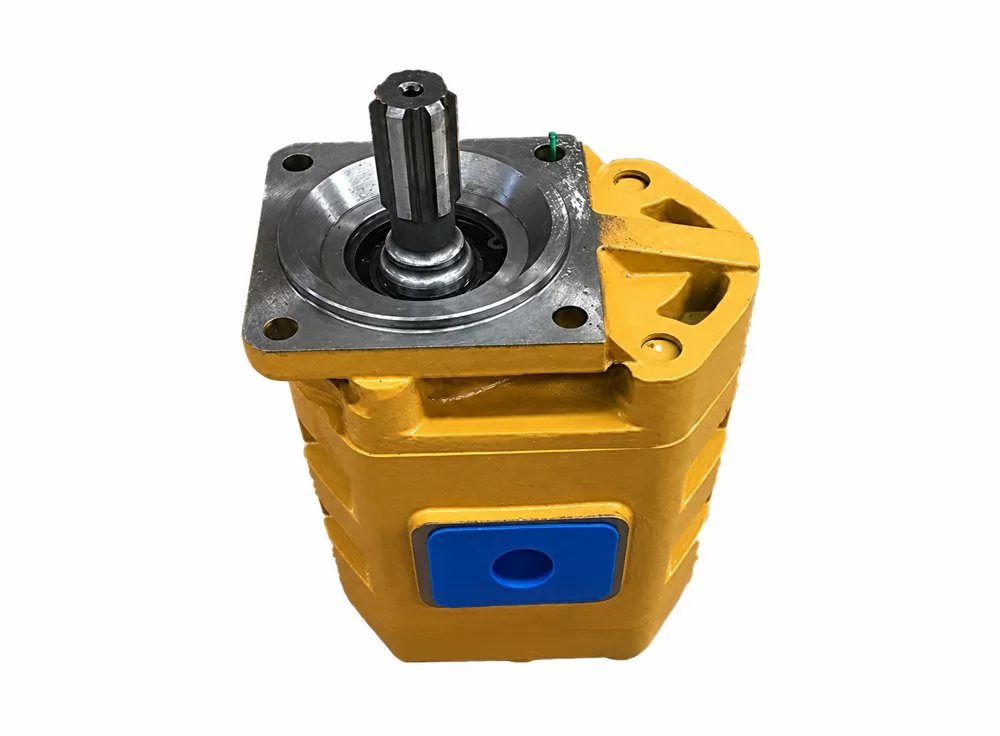

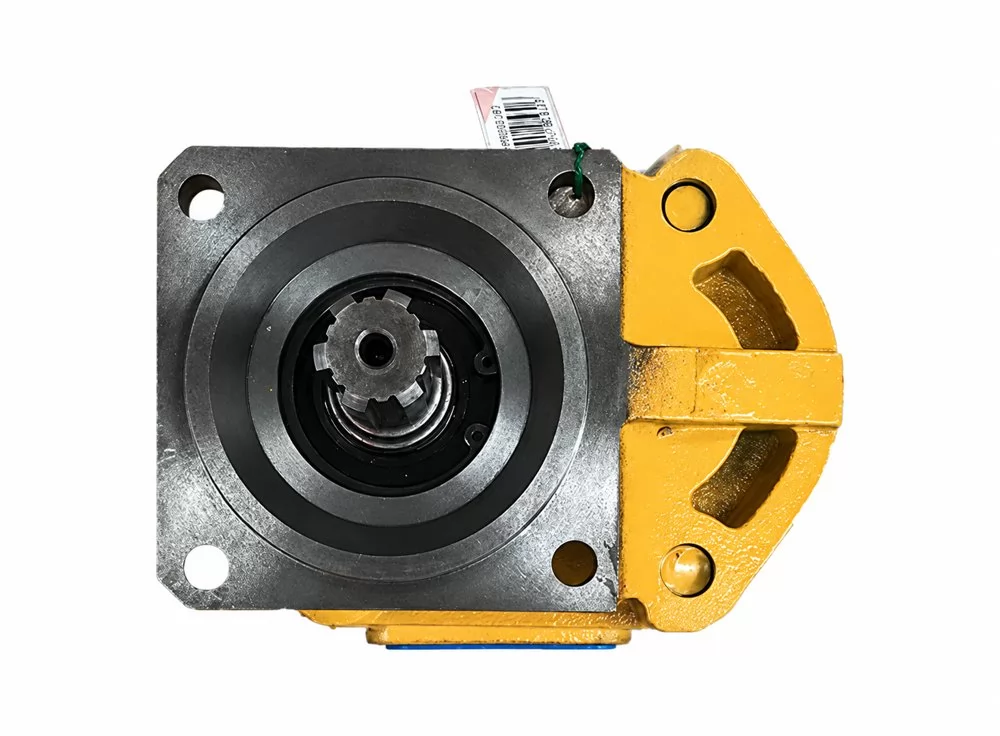

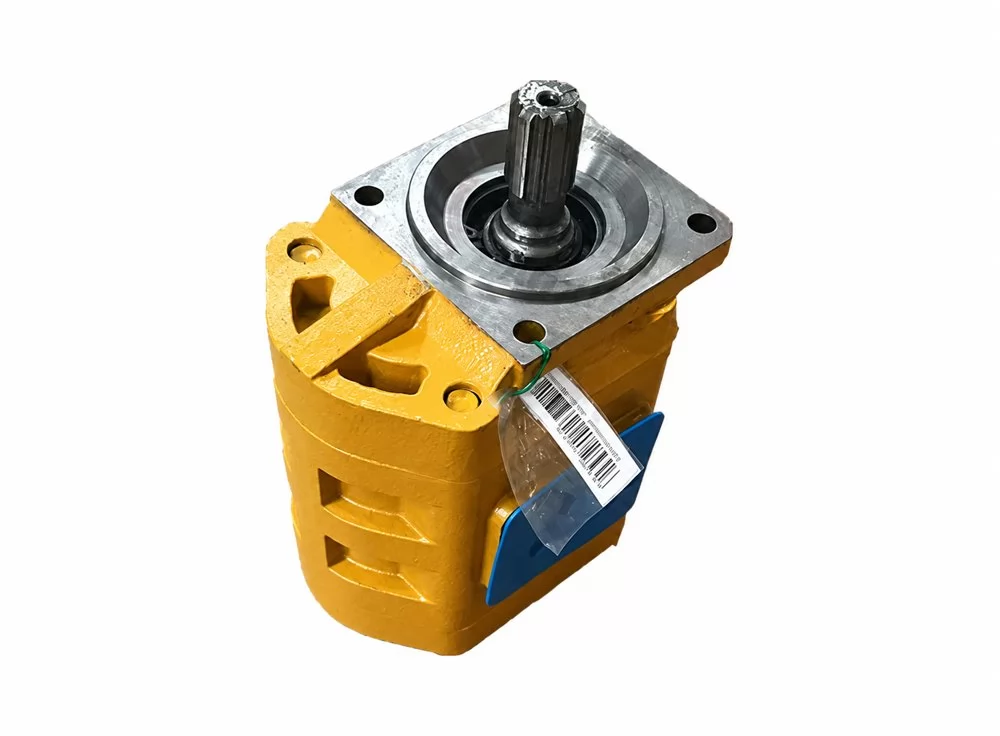

| Photos | Reference views; colour and label may vary; verify actual configuration |
Product Information
4120000684 CBGJ3166 JHP3166 SDLG LG956L LG958 Hydraulic Gear Pump
Olive Branch Hydraulics is a hydraulic component manufacturer in Hebei, China, producing aftermarket 4120000684 gear pump, mapped to CBGJ3166, as a working hydraulic pump replacement for SDLG LG956L and LG958 wheel loaders. Every order is subject to matching against your machine serial number and the original pump.
JHP3166 is a common supplier search reference for this pump and requires a dimension check before ordering. We ship EXW from Xinji, Hebei, China, and inspect each unit before dispatch.
4120000684 CBGJ3166 Technical Specifications
Displacement, pressure and speed values are CBGJ3166 series references, not certified ratings for an individual unit.
| Part number | 4120000684 |
|---|---|
| Pump series | CBGJ3166 |
| Search cross-reference | JHP3166 (dimension check required) |
| Application references | SDLG LG956L, LG958 working hydraulics (verify serial number) |
| Displacement (series reference) | 166 cm3/rev |
| Rated / maximum pressure (series reference) | 20 MPa / 25 MPa |
| Rated / maximum speed (series reference) | 2200 rpm / 2500 rpm |
| Shaft, spline and rotation | Confirmed against your original pump |
| Mounting flange and oil ports | Confirmed against your original pump |
| Weight and materials | Confirmed at quotation |
| Separate configurations; do not assume interchangeability | 4120001715 / JHP3160 and 4120002513 / JHP3160S |
Not sure your loader uses 4120000684?Send the machine serial number and photos of the shaft, flange and ports, and we check the match before quoting.
4120000684 Replacement Pump Matching
Part-number mapping stated upfront
4120000684 maps to CBGJ3166, so your purchasing system and the pump label point to the same unit.
Look-alike numbers flagged
4120001715/JHP3160 and 4120002513/JHP3160S are separate configurations, so dimensions and circuit requirements must be compared before substitution.
Fit checked before payment
Shaft, splines, rotation, flange and ports are compared to your old pump before the order is confirmed.
Series data for circuit review
The CBGJ3166 series lists 166 cm3/rev and 20 MPa rated pressure; confirm the supplied configuration and operating limits before installation.
One source for related parts
Tandem pumps, hydraulic motors and valves can be quoted on the same EXW order.
How We Match and Inspect Each SDLG LG956L Hydraulic Pump
-
Data review
You send the serial number, nameplate photo and old pump dimensions.
-
Configuration match
We check the shaft, splines, rotation, flange and port positions against CBGJ3166 data.
-
Quotation
The EXW price, quantity and weight are confirmed in writing.
-
Sample matching
A sample unit can be supplied for a fitment trial before you place a volume order.
-
Final inspection
Each pump is inspected before dispatch from Xinji, Hebei.
OEM, Private Label and Distributor Orders
OEM / ODM configuration
Shaft, flange or port variants are built to your drawing or sample after the fit check.
Private label marking
Brand markings and labels are agreed per order and confirmed on the sample.
Custom packaging
Carton marking and labelling for resale are agreed during the quotation.
Mixed orders
CBGJ3166 pumps can share one EXW shipment with tandem pumps, motors and valves.
-
Send drawing or sample
Your specifications and target quantity.
-
Feasibility and quote
Configuration, MOQ and price confirmed in writing.
-
Sample approval
You test fit and marking.
-
Production and inspection
Final inspection before EXW dispatch.
Who Buys the 4120000684 Gear Pump?
Loader fleet maintenance
Working pump replacement on SDLG LG956L and LG958 units after the serial number is verified.
Parts distributors
Stocking CBGJ3166 pumps for loader repair shops, with quantity-based quotes.
Private label sellers
Resale under your own brand, with marking confirmed on the approved sample.
Project and mining contractors
Spare pumps for site fleets, consolidated with motors and valves on one order.
Online parts sellers
Small trial quantities that list the correct part number and cross-references.
CBGJ3166 and JHP3166 Pump Buying Questions
- Is 4120000684 the same pump as CBGJ3166?
- Yes. Part number 4120000684 maps to the CBGJ3166 gear pump. The final fit still depends on the shaft, flange, rotation and ports of your unit.
- Can I order by JHP3166 alone?
- No. JHP3166 is a supplier search reference, and dimensions must be checked against your original pump before ordering.
- Will a 4120001715 / JHP3160 or 4120002513 / JHP3160S pump fit instead?
- Do not assume interchangeability. These numbers refer to separate configurations; compare the original pump dimensions and machine requirements before substitution.
- What information do you need to quote?
- We need the machine serial number, a nameplate photo, photos of the shaft and flange, the rotation direction, port positions and your quantity.
- What are the trade terms and order quantities?
- We supply on EXW terms from Hebei, China. MOQ, price and sample terms are confirmed in the written quotation for your configuration.
Request a CBGJ3166 Sample or Quote
Send your serial number, pump photos, quantity and destination market to [email protected] or via WhatsApp at +8615075996564. We will reply with the match result, an EXW quote and sample terms.
Request Sample Terms WhatsApp +8615075996564
Fit checked before quotation, Final inspection before dispatch, OEM and private label orders accepted
