11C0317 P360-G100367ZAB6/P124-G25NIG LiuGong CLG888 Tandem Gear Pump

11C0317 LiuGong CLG888 Tandem Steering Gear Pump

Olive Branch Hydraulics offers an aftermarket replacement enquiry for the 11C0317 hydraulic gear pump used in LiuGong wheel-loader applications. Its catalogue model is P360-G100367ZAB6/P124-G25NIG, a tandem assembly with 360 and 124 series sections. Customers searching for a LiuGong CLG888 gear pump, 11C0317 steering pump or P360/P124 double gear pump can use the references below to identify the assembly before ordering.

Material numbers and full model references

The original pump nameplate is the preferred identification record. Match 11C0317 with the complete two-section model, shaft, flange, rotation and port arrangement. Nearby numbers such as 11C0318 and 11C0353 identify other pump references and are not included as equivalent material numbers.

Compatible equipment and historical configuration

Guangxi Linqian catalogue listings identify the 11C0317 assembly for the LiuGong CLG888 wheel loader. A separate loader-parts supplier catalogue also lists CLG877. Treat CLG877 as an application to confirm using the machine serial number, original part number and pump dimensions.

LEO supplier records describe 11C0317 as the CLG888 steering pump and note that 11C0079, with model P5100-F100NP3676/P124-G25G, was used before February 2007. This is a historical supplier record rather than a universal interchangeability statement. Earlier machines may require additional checks before changing to the later assembly.

Technical parameters

The identification code contains G100 and G25 size references. Exact displacement for each supplied section must be confirmed against the assembly drawing or test sheet. Supplier records list approximately 40.99 kg net weight, with other listings rounding to 40 or 41 kg. Confirm the actual supplied weight and packing dimensions for shipment.

The official Permco 360-series brochure describes sleeve-bushing construction, cast-iron components and pressure-balanced wear plates. Its sizes cover 1.80–9.00 cubic inches per revolution and speeds up to 2400 rpm. The size table varies maximum pressure between 3500, 3250 and 3000 psi. These are family data and do not establish a tested rating for this exact 11C0317 assembly.

The official 124-series brochure covers 0.62–2.48 cubic inches per revolution and speeds up to 3000 rpm. Pressure limits vary with gear size. The rear-section series maximum must not be used as the complete tandem assembly speed limit. Confirm continuous pressure, peak pressure, permitted speed, inlet conditions and both section flows for the ordered configuration.

Shaft, flange and port matching

The reference photographs show a splined drive shaft and a two-bolt mounting flange. Check spline count, spline profile, shaft diameter, projection and engagement length, as well as flange pilot diameter and bolt centres. Confirm the rotation arrow viewed from the shaft end and provide clear photographs of every inlet and outlet.

For a tandem pump, identify the front and rear section connections and the intended machine circuits. Matching colour, weight or overall appearance alone is insufficient. Confirm overall length, mounting clearance and hose or flange accessibility before installation.

Product images and catalogue references

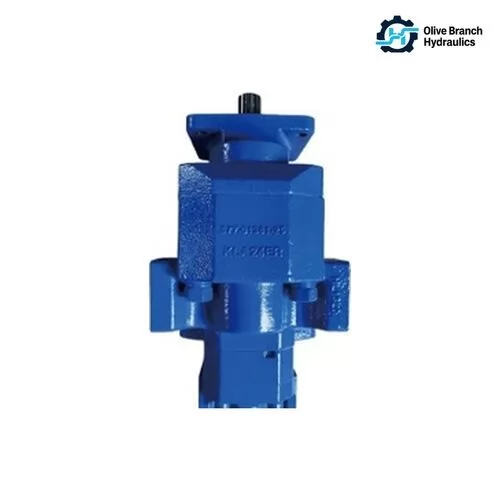

The gallery contains one Olive Branch product image plus three supplier reference images, including a shaft/nameplate close-up and different assembly views. Third-party overlay watermarks have been removed. Edited image lettering is illustrative; use the written catalogue references for model identification. The gallery illustrates identification features; agree the actual supplied configuration using the original sample and confirmed drawing.

Guangxi Linqian catalogue: 11C0317, P360-G100367ZAB6/P124-G25NIG, CLG888 and supplier weight reference.

Loader Spare Parts catalogue: 11C0317 application listing for CLG888/CLG877.

LEO supplier catalogue: CLG888 steering-pump and historical 11C0079 model note.

Permco 360 and 124 technical brochures: series construction and operating-range reference.

Request a replacement quotation

Send the machine model, serial number, old-pump nameplate, shaft/flange/port photographs, required quantity and destination. Specify 11C0317 and the complete P360-G100367ZAB6/P124-G25NIG model. For an older 11C0079 assembly, include the original model and measurements so the proposed replacement can be checked before supply.
