1155442011 803004128 CBGJ3100/1010C-XF Tandem Gear Pump For XCMG ZL50G LW500KI

1155442011 / 803004128 Tandem Hydraulic Gear Pump for XCMG Wheel Loaders

Olive Branch Hydraulics supplies aftermarket hydraulic gear pumps identified by the original material number, pump model and installation configuration. The 1155442011 double gear pump is listed for XCMG ZL50G and LW500KI wheel-loader applications. It is also found under material number 803004128. For a replacement enquiry, include both numbers when they appear on your old pump or machine parts list.

This is a tandem external gear-pump assembly with a large front section and a smaller rear section. The two sections share a drive shaft and have distinct hydraulic connections. Compare the complete assembly, including its shaft, mounting flange and port arrangement, before selecting a replacement. Similar-looking pumps for different loader configurations can have different drive connections and hydraulic requirements.

Material Numbers and Model References

These references help identify catalogue records and prepare a quotation. A matching search result does not establish that every model spelling or supplier version has identical mounting dimensions, rotation or ratings. Do not use the broad P5100-F100CX designation as an automatic substitute: parts lists also associate that model with the separate material number 803004078.

Compatible Equipment and Hydraulic Application

The catalogue references above concern wheel loaders. They do not establish universal compatibility across every XCMG machine or all production years. Provide the machine model and serial number, the original pump label and photographs of the front flange and hydraulic ports. This allows the enquiry to be matched to the correct assembly instead of relying only on the loader family name.

Technical Configuration and Installation Checks

A seller describes a 1155442011 version with a 14-spline shaft of approximately 31 mm diameter. Treat that as a version reference and measure the actual shaft, including spline count, diameter and projection. Check the mounting pilot, bolt pattern and coupling engagement. Confirm the rotation from the pump marking using the shaft-end viewing convention.

Both pump sections need their port sizes and flange-hole spacing checked. Identify the inlet and outlet connections from the approved drawing or pump markings. Exact displacement, continuous pressure, maximum pressure and speed ratings must come from the selected assembly specification or test record. The available catalogue records identify parts and equipment but do not supply a complete verified performance curve for this particular assembly.

Product Images

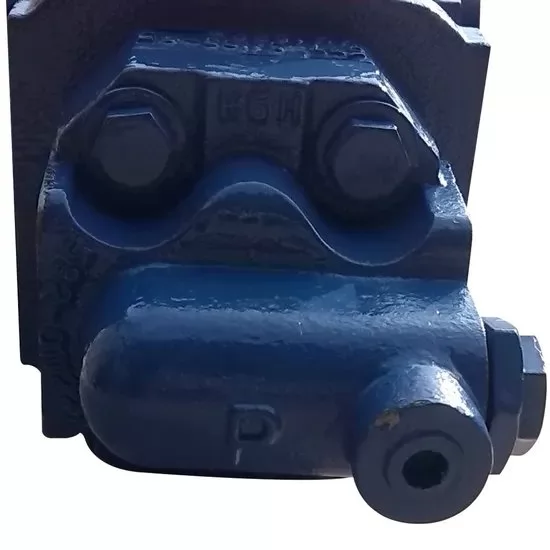

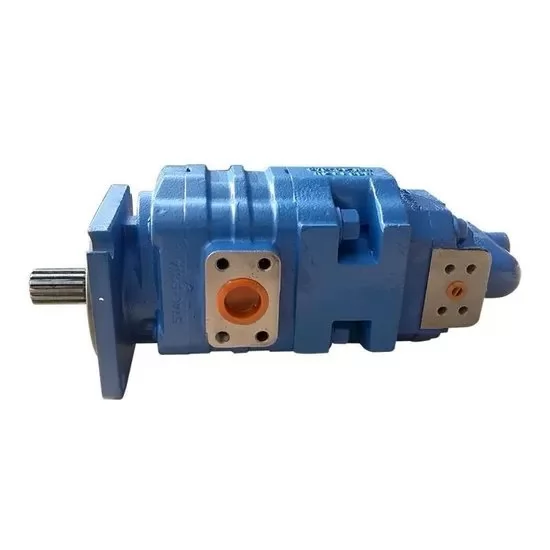

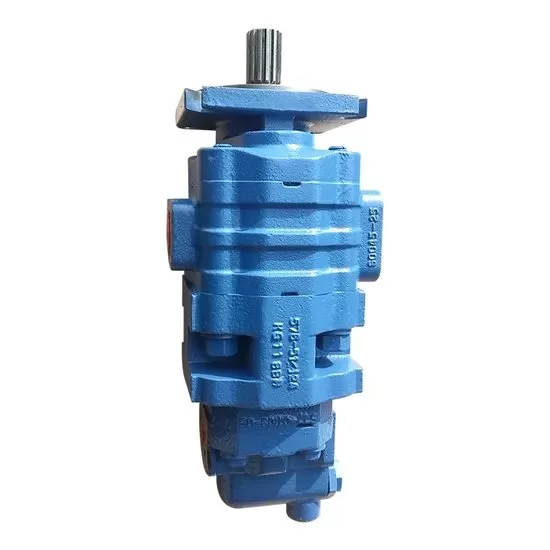

The three gallery photographs show different views published for the 1155442011 / 803004128 assembly: the side ports, the opposite housing side and the rear section. They are supplier catalogue references. Colour and minor appearance details of the supplied pump should be confirmed with the quotation photographs.

Request a Matched Replacement

When asking for a 1155442011 hydraulic pump, 803004128 double gear pump or CBGJ3100/1010C-XF loader pump, send the material number together with the old-pump model and equipment details. Include photos of the shaft, nameplate, flange and both sides of the assembly, plus dimensions where the old identification plate is missing. Olive Branch Hydraulics can use this information to prepare a configuration-specific replacement enquiry.

Catalogue References

Part-number and model associations were cross-checked against the Shantui-XCMG Parts supplier catalogue and Luseng parts list. LW500KI identification appears in Xiamen Doolin's exact 1155442011 listing. Photographs are from Xuzhou Shangheng's 1155442011 / 803004128 listing. Equipment and brand names are used for compatibility identification.
