SGP1 Forklift Hydraulic Gear Pump

SGP1 Forklift Hydraulic Gear Pump

Olive Branch Hydraulics supplies SGP1 series hydraulic gear pumps for replacement and equipment projects. Send your complete pump model, OEM part number and installation dimensions to select the correct specification. This page brings together SGP1 and selected CBHZ, CBHZG, CBHZA and CBHZB references to help buyers identify an existing forklift pump.

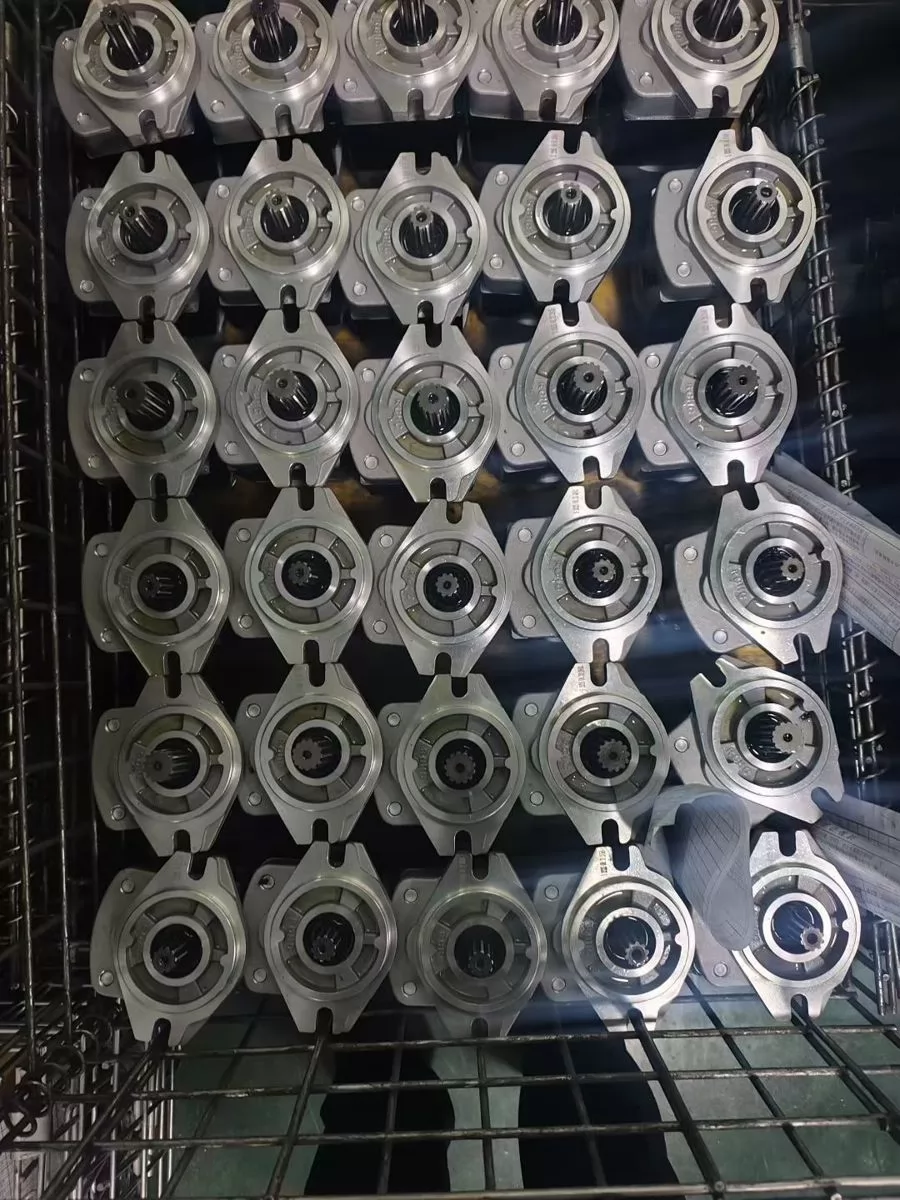

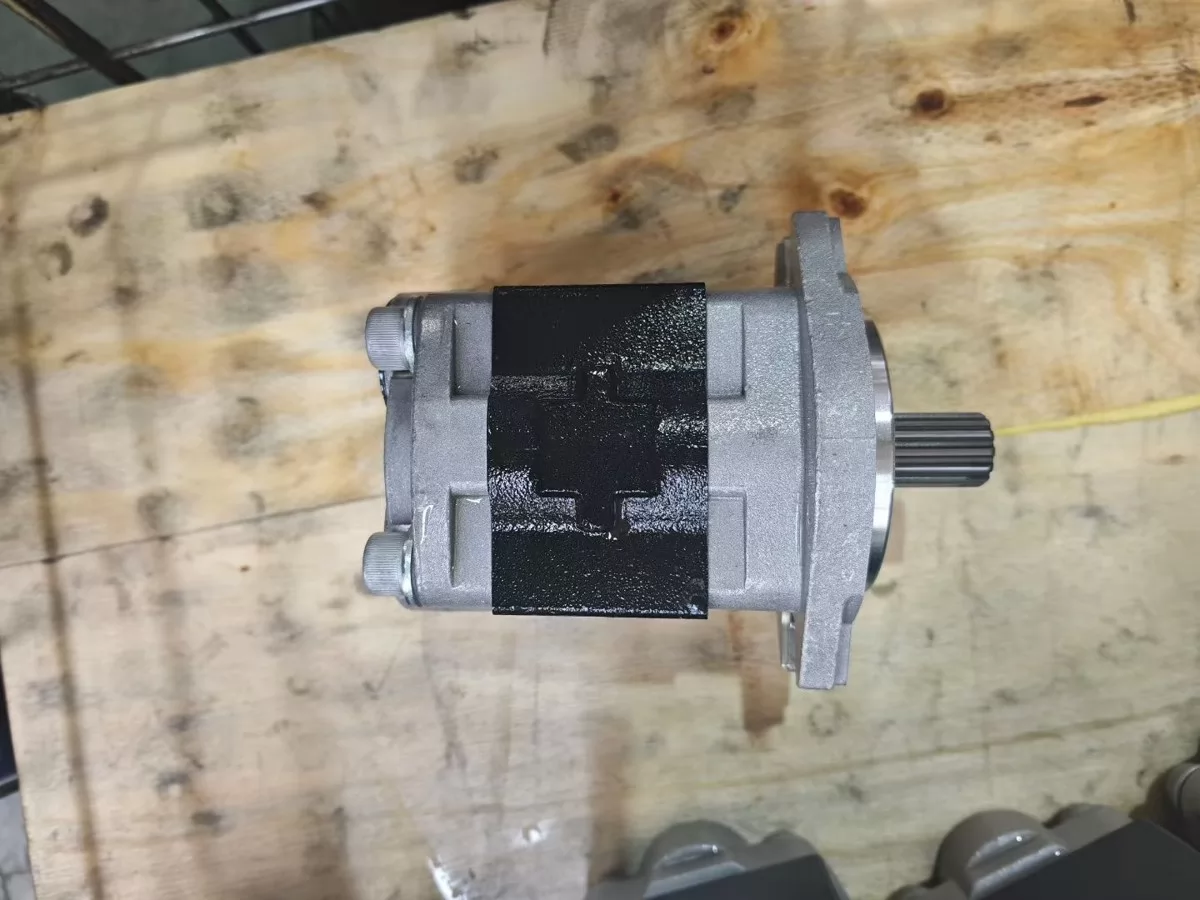

Product photographs show multiple configurations. A family name or a similar appearance does not establish interchangeability. Confirm the exact shaft, mounting, oil ports, displacement and rotation before placing an order. Supplied specifications are agreed for the selected configuration.

SGP1 Models and Displacement Reference

The following values are Shimadzu catalogue reference displacements, in cm³/rev. They are not a test certificate for every replacement pump. Equivalent manufacturers may use different nominal values.

Reference model	Catalogue displacement (cm³/rev)
SGP1-16	16.2
SGP1-18	18.3
SGP1-20	20.4
SGP1-23	23.7
SGP1-25	24.9
SGP1-27	27.8
SGP1-30	29.9
SGP1-32	33.2
SGP1-34	34.1
SGP1-36	36.6

In the standard reference coding, A identifies an 82.55 mm mounting pilot; F indicates rear-cover side ports and D rear ports. H identifies horizontal two-bolt mounting. Standard shaft codes 1 and 5 identify 13-tooth and 10-tooth splines. L and R mean counterclockwise and clockwise when viewed from the shaft end. Special OEM suffixes require their own drawings.

CBHZ, CBHZG, CBHZA and CBHZB Model References

Customers may search for an SGP1 gear pump using the domestic CBHZ family designation. The model lists below identify related catalogue entries, not universal substitutes. Keep the full suffix when requesting a CBHZ forklift hydraulic pump or CBHZA replacement gear pump.

Family	Published model references
CBHZ	CBHZ-F25-ALH6; CBHZ-F30-ALΦ; CBHZ-F32-ALH6; CBHZ-F32-ALH6L; CBHZ-F31.5-AL; CBHZ-F31.5-ALH6L
CBHZG	CBHZG-F23-ALφ; CBHZG-F25-ALφ; CBHZG-F26.5-ALΦL; CBHZG-F30-ALΦ; CBHZG-F30-ALφL; CBHZG-F30-ALΦL-G00; CBHZG-F32-ALφ; CBHZG-F32-ALφL; CBHZG-F32-ALH6L; CBHZG-F34-ALΦ13L
CBHZB	CBHZB-F28.2-ATΦ; CBHZB-F32-ATΦ
CBHZA	CBHZA-F25-AFΦ; CBHZA-F25-AFΦ13; CBHZA-F30-AFΦL; CBHZA-F32-AFΦ13L; CBHZA-F36-AFΦ

Some catalogues use Φ, φ or Ф; others omit the symbol in search listings, such as CBHZG-F34-AL13L. Preserve the original nameplate designation for technical matching. CBHZ-F23-AL**, CBHZ-F25-AL**, CBHZ-F28-AL**, CBHZ-F30-AL**, CBHZ-F32-AL** and CBHZ-F36-AL** are manufacturer family patterns: the asterisks represent configuration options, not complete ordering codes.

OEM Part Numbers and Forklift Application References

The following references are drawn from service manuals and parts-supplier catalogues. They support an identification enquiry; they do not certify that every pictured Olive Branch pump fits every listed forklift. References listed together by a supplier must still be checked against the vehicle serial number and installation drawing. Engine codes describe configurations, not a complete vehicle identity.

Domestic pump reference	SGP1 reference	OEM / material number reference	Catalogue application	Reference status
CBHZA-F25-AFΦ	SGP1-25A1H1-R321C	GR501-601300-G00	Selected 5–7 t forklift configurations; CPCD50–70 with CY6102BG-2 / QSB4.5 / 6BG1QP listed by a parts supplier	Service-manual model alternative; supplier part-number reference
CBHZA-F30-AFΦL	SGP1-30A1H1-L059C	Confirm complete suffix; GR501-601400-000 is separately listed for SGP1-30A1H1-L	Selected 5–7 t and 8–10 t configurations; confirm front/rear pump position	Service-manual alternative; individual installation check required
CBHZA-F36-AFΦ	SGP1-36A1H1-R062C	Not established here	Selected 8–10 t forklift configurations	Service-manual model alternative
CBHZG-F34-ALΦ13L / CBHZG-F34-AL13L	SGP1-A34D4H1-L997D	A309-601100-000	Selected Hangcha A series CPC(D)20–38-AG51 / AG52 and CPCD30–35-AXG51 / AXG52; 4D27G31 / 4D32G31 configurations	Aftermarket catalogue reference
CBHZ-F31.5-AL	No exact SGP1 suffix established here	H24C7-10011	Heli H2000 / 498 configuration	Parts supplier application reference
No CBHZ cross-reference established here	SGP1A32D3H5-R379	67110-23660-71; supplier also lists 67120-36680-71 and 67120-36630-71	Selected Toyota 6–8FD20–30 / 2Z and 8FDN30 / 3Z configurations	Aftermarket catalogue reference; verify truck serial number
No CBHZ cross-reference established here	SGP1A23D2H9-R288C	H14S7-10001	Selected Heli G series CPCD20–25 / V2403 / 4JG2 / 498 configurations	Aftermarket catalogue reference
No CBHZ cross-reference established here	SGP1A31.9D2H9L438T	117M7-10321	Supplier lists H2000 / C240 / Z5 3T	Parts supplier application reference
No independent OEM number established here	SGP1A28.2D2H9-L093	Pump model only	Supplier lists Heli H2000 / C240	Supplier application reference
No independent OEM number established here	SGP1A27L301C	Pump model only	Supplier lists H2000 / 490	Supplier application reference
No independent OEM number established here	SGP1A30.8-R268	Pump model only	Supplier lists L02 / K21	Supplier application reference

How to Select the Correct Replacement Pump

For an SGP1 forklift hydraulic pump quotation, provide a clear photograph of the original nameplate and the complete truck model and serial number. Include the engine code, pump position and OEM part number. Measure the mounting pilot diameter and bolt centres, spline tooth count, shaft diameter and exposed shaft length. Record the inlet and outlet thread or flange dimensions and their positions.

Specify displacement in cm³/rev, operating pressure and speed, and rotation viewed from the shaft end. A 10-spline pump and a 13-spline pump require different drive connections. A clockwise pump must not be assumed suitable for a counterclockwise installation. Front and rear pumps on the same forklift can have different displacement, rotation and connections.

Frequently Asked Questions

Are SGP1 and CBHZ the same model?

They are different model families. Certain complete models are listed as alternatives in equipment documentation. Compare the exact suffix and dimensions; do not replace a pump using only the series name.

Can I order using an OEM part number?

Yes. Send the part number together with the truck serial number, old-pump photographs and measurements. We will use these details to prepare a configuration-specific quotation.

Does SGP1-32 always mean exactly 32 cm³/rev?

No. The original reference catalogue lists 33.2 cm³/rev for SGP1-32, while replacement catalogues can use different nominal values. Use the selected pump drawing and agreed specification.

Are these genuine Shimadzu, Toyota, Hangcha or Heli parts?

This page presents Olive Branch Hydraulics products. Other brand names, model codes and OEM numbers are identification and application references; they do not imply manufacture or endorsement by those brands.

What should I send for a custom forklift gear pump?

Send a sample or dimensioned drawing, required displacement, rotation and operating conditions. Discuss the proposed replacement specification before confirming an order.

Request an SGP1 Gear Pump Quotation

Contact Olive Branch Hydraulics with the complete SGP1 or CBHZ model and material number. Whether you need a single replacement or pumps for a supply project, accurate installation details help us quote the correct shaft, flange and port arrangement.

Technical Reference Sources

• Shimadzu SGP1 series catalogue
• Hangcha R series service manuals: hydraulic-system sections and model alternatives.
• Selected Hanzhi, Univer and aftermarket parts catalogues: application and material-number references, subject to individual verification.

Additional Forklift Part Number Search References

The following numbers appear in published replacement-pump catalogues. They are search and quotation references for individual configurations within or related to the SGP / CBHZ families.

Material / part number	Published pump reference	Published equipment reference
67120-26650-71 / 671202665071	SGP forklift gear pump supplier listing; confirm full pump code	Toyota 8FG20–30 / 8FD20–30; 4Y / 1DZ configurations
110F7-10232	CBHZ-F25-ALΦ10	FG15T19 / H15
133A7-10201	CBHZ-F28.2-ALΦ10	FG20–30Z5,T6 / H20
110F7-10271	CBHZ-F30-ALΦ10	FD20–30T7,T3 / TD27; V5T / CA498; FG20–30T3 / K21
132Z7-10401	CBHZ-F31.5-ALHL	FD20–30VT / A490BPG
37B-1KB-3040	CBHZC-F30-AFΦ10L	Komatsu FD30-12,14 / 4D94E
69101-51K00	CBHZC-F25-AFΦ10	Nissan FG20–25 / J02 (H20)

For a 67120-26650-71 forklift hydraulic pump enquiry, or searches using 110F7-10232, 133A7-10201, 110F7-10271, 132Z7-10401, 37B-1KB-3040 or 69101-51K00, send the original pump photograph and forklift serial number. Match the complete model, shaft, mounting, ports and rotation before confirming a replacement. The listed numbers identify different installations.
