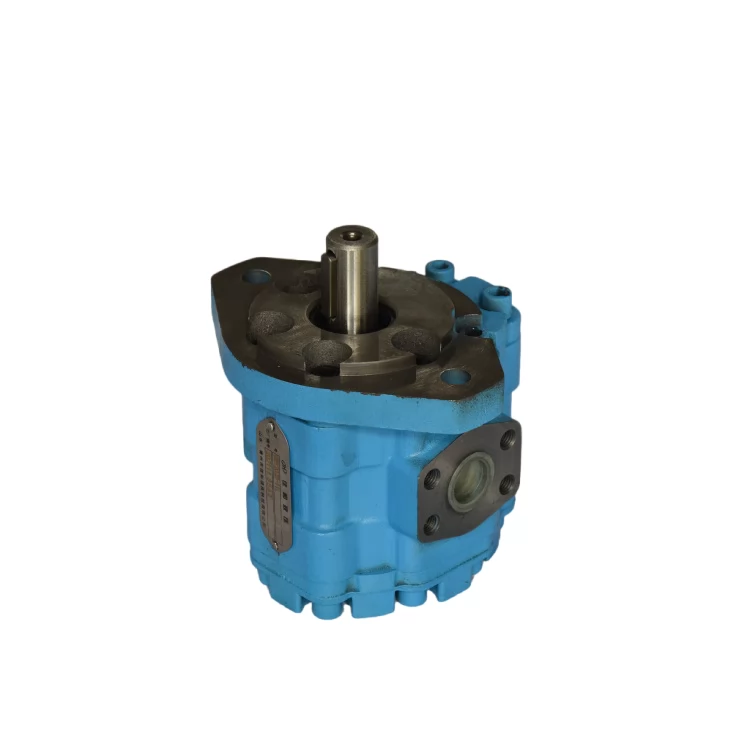

Multi-Purpose CBY Gear Pump

Multi-Purpose CBY Gear Pump: Reliable Hydraulic Power for Demanding Industrial Applications

The Multi-Purpose CBY Gear Pump from Olive Branch Hydraulics is engineered to deliver dependable hydraulic flow across a wide range of industrial machinery. Built for procurement teams that measure value in both performance and total cost of ownership, the CBY series balances high pressure capability, stable volumetric efficiency, and long service life in a compact, cost-effective package.

As a factory-direct CBY hydraulic gear pump supplier, we manufacture every unit under ISO 9001 standards using precision machining centers, dedicated honing, boring, and grinding equipment, and automated assembly lines. This vertical integration allows us to control tolerances at the source — the single most important factor in gear pump reliability and leak-free operation.

The CBY design is a proven external gear architecture optimized for continuous-duty applications. Its rugged cast housing, hardened gear sets, and pressure-balanced bearing blocks maintain consistent output even under fluctuating load conditions. Whether you are sourcing pumps for mobile equipment, stationary power units, or agricultural machinery, the CBY series offers strong cross-compatibility with common mounting and port standards.

For buyers focused on price and lead time, this page provides transparent technical data, OEM configuration options, and our 100% pre-shipment testing commitment — everything you need to qualify Olive Branch Hydraulics as your next long-term supplier. When you need a dependable industrial CBY gear pump manufacturer, we make specification, sampling, and volume ordering straightforward.

Key Features & Buyer Benefits of the CBY Gear Pump

Every feature of the CBY series is designed to translate directly into measurable buyer value — lower downtime, faster delivery, and reduced total cost of ownership. Below is how our engineering choices benefit your operation.

• Hardened, precision-ground gear sets → Extended service life and stable volumetric efficiency, reducing replacement frequency and warranty claims.
• Pressure-balanced bearing blocks → Consistent performance under high-pressure cycling, minimizing internal leakage and heat generation.
• Compact, high power-density housing → Easier integration into space-constrained machinery designs, simplifying your assembly workflow.
• SAE-standard and custom port compatibility → Broad drop-in replacement potential, letting you consolidate suppliers without redesigning systems.
• ISO 9001 in-house production → Batch-to-batch consistency that protects your production schedule from quality-related delays.
• Factory-direct pricing → No middleman markup, giving procurement managers a stronger cost position on volume orders.

For a procurement buyer, the practical advantage is simple: the CBY pump arrives tested, dimensionally consistent, and ready for integration. This reduces incoming inspection burden and the risk of line stoppages. Because we are the actual industrial CBY gear pump manufacturer — not a trading reseller — we can respond quickly to technical questions, adjust specifications, and support you throughout the product lifecycle. That combination of reliability, compatibility, and responsiveness is exactly what makes the CBY series a low-risk sourcing decision.

Technical Specifications & Performance Parameters

The following specifications represent standard CBY series configurations. Actual parameters can be tailored to your displacement, pressure, rotation, and port requirements. Contact our engineering team to confirm the exact model that fits your application.

Parameter	Specification Range	Notes
Displacement	2.5 – 50 mL/rev	Multiple frame sizes available
Rated Pressure	16 – 20 MPa	High-pressure variants on request
Peak Pressure	Up to 25 MPa	Short-duration limit
Rated Speed	1500 – 3000 rpm	Application dependent
Volumetric Efficiency	≥ 92%	At rated conditions
Rotation	CW / CCW	Configurable
Fluid Temperature	-20°C to +80°C	Standard mineral hydraulic oil
Fluid Viscosity	10 – 100 mm²/s	ISO VG 32 / VG 46 recommended
Port Options	SAE / BSP / Custom P/T	Drop-in compatibility
Mounting	Flange / Foot mount	Standard interfaces
Housing Material	High-strength cast iron	Precision machined
Quality Standard	ISO 9001	100% tested pre-shipment

All values are verified on our in-house test benches using calibrated pressure benches, flow meters, and leak detectors. If your machinery requires a specific displacement-to-pressure ratio or a non-standard port configuration, our engineers will provide a matched specification sheet before quotation. This data-driven approach ensures you receive a pump that performs exactly as documented, eliminating guesswork from your qualification process.

Typical Applications Across Industrial Machinery

The versatility of the CBY series makes it a preferred choice across many hydraulic-driven sectors. Its balance of pressure capability, efficiency, and compact form allows it to serve both mobile and stationary equipment reliably.

• Construction machinery — excavators, loaders, and compaction equipment requiring dependable auxiliary hydraulic flow.
• Agricultural equipment — tractors, harvesters, and implements needing rugged, continuous-duty pumps.
• Material handling — forklifts, lift tables, and hydraulic cranes operating under variable load cycles.
• Industrial power units — stationary HPUs, presses, and machine tools where consistent output is critical.
• Municipal and utility vehicles — sweepers, refuse trucks, and specialized fleet equipment.
• OEM machinery integration — custom-built systems where SAE-standard compatibility speeds design.

Because the CBY pump supports both clockwise and counterclockwise rotation and multiple port standards, it adapts easily to existing system layouts. Procurement managers sourcing for multi-model production lines benefit from consolidating requirements around a single, cross-compatible pump family — simplifying inventory, spares management, and supplier coordination. Whatever your end-application, our team will help confirm the correct configuration for optimal service life.

OEM & Custom Configuration Capabilities

As a dedicated high pressure CBY gear pump OEM partner, Olive Branch Hydraulics supports full customization for buyers who need pumps tailored to their machinery — not off-the-shelf compromises. Our in-house engineering and machining capabilities allow us to adjust the pump at the design level rather than merely relabeling stock units.

Available customization options include:

• Displacement and pressure rating tuned to your duty cycle
• Custom P/T port sizes, threads, and orientation
• Flange and shaft configurations for your drive interface
• Rotation direction (CW / CCW)
• White-label branding and custom packaging
• Multi-stage or tandem pump assemblies

Our typical OEM workflow is transparent and fast:

1. Requirement review — share drawings, samples, or performance targets.
2. Technical proposal — we return a matched specification and quotation.
3. Sampling & prototyping — first-article samples for your validation.
4. Approval & tooling — confirm specs and packaging.
5. Volume production — 100% tested and delivered on schedule.

Prototyping lead times are typically short, and MOQs for custom configurations are negotiable depending on complexity. This makes Olive Branch Hydraulics an accessible OEM partner for both established manufacturers and growing brands seeking reliable private-label hydraulic components.

100% Pre-Shipment Testing & Quality Control Process

Quality is not a claim at Olive Branch Hydraulics — it is a documented, multi-stage process. Every CBY gear pump undergoes 100% pre-shipment inspection. No exceptions. Our dedicated in-house testing center is equipped with pressure benches, flow meters, leak detectors, and material analyzers to enforce measurable standards at every stage.

Incoming Material Control

Raw castings, gears, and bearing components are verified with material analyzers to confirm alloy composition and hardness before entering production. This prevents defective inputs from ever reaching the assembly line.

In-Process Inspection

During machining, critical dimensions from our honing, boring, and grinding equipment are checked against tolerance limits. Automated assembly lines maintain consistent torque, clearance, and alignment — the key drivers of long-term pump reliability.

Final Performance Testing

Each finished pump is run on calibrated test benches to verify rated pressure, flow output, volumetric efficiency, and leak-free operation. Units that fail any parameter are rejected, not reworked into shipments.

For procurement buyers, this rigorous protocol translates into predictable incoming quality, reduced inspection cost on your end, and fewer field failures. Full test documentation can be provided with each batch upon request, giving your quality department the traceability records needed for audits and supplier scorecards. This is how a serious industrial CBY gear pump manufacturer protects your production continuity.

MOQ, Lead Time & Factory-Direct Pricing

We structure our commercial terms to serve procurement managers who prioritize competitive pricing and reliable delivery. As a factory operating on CBY gear pump wholesale price terms, we pass manufacturing efficiency directly to you — with no trading-company markup.

Commercial Term	Standard Offering
Minimum Order Quantity	Flexible — sample and low-volume trial orders accepted
Standard Lead Time	15–30 days depending on quantity and configuration
Sample Lead Time	7–15 days for standard models
Pricing Model	Factory-direct, volume-tiered
Payment Terms	T/T, L/C — negotiable for repeat buyers
Shipping	FOB / CIF / DDP to Europe, Americas, Middle East, Southeast Asia

Larger volumes unlock more favorable per-unit pricing, and repeat customers benefit from streamlined ordering and priority production scheduling. Because we control the entire manufacturing process in-house, we can commit to firm delivery dates and communicate proactively if requirements change. For buyers seeking a CBY series gear pump for sale at genuine factory pricing, request a tiered quotation and we will provide transparent cost breakdowns aligned to your projected volumes.

Frequently Asked Questions from Procurement Buyers

1. Are your CBY pumps compatible with existing hydraulic systems?

Yes. Our CBY series supports SAE-standard, BSP, and custom P/T port configurations, plus CW/CCW rotation. This broad compatibility makes them suitable as drop-in replacements in most standard systems. Share your current pump model or drawing and we will confirm a matching configuration.

2. Can you provide quality documentation with each shipment?

Absolutely. Every pump is 100% tested pre-shipment, and we can supply test reports, material certificates, and inspection records for traceability. This supports your incoming QC and supplier audit requirements.

3. What is your typical lead time for volume orders?

Standard production runs ship within 15–30 days depending on quantity and customization. We provide firm delivery commitments at order confirmation and update you proactively throughout production.

4. Do you accept OEM and private-label orders?

Yes. As a high pressure CBY gear pump OEM partner, we offer custom displacement, ports, shafts, white-label branding, and custom packaging. Prototyping and first-article samples are available before mass production.

5. How do you ensure consistent quality across large batches?

We manufacture in-house under ISO 9001 using precision machining centers and automated assembly lines. Combined with 100% pre-shipment testing, this ensures batch-to-batch consistency and protects your production schedule from quality-related interruptions.

Request a Quote or Free CBY Pump Sample Today

Ready to qualify Olive Branch Hydraulics as your next CBY hydraulic gear pump supplier? Take the next step with a clear, low-risk path forward. Send us your target specifications, application details, or existing pump drawings, and our engineering team will respond with a matched configuration and transparent factory-direct quotation.

To help you validate quality before committing to volume, we offer sample units for evaluation and short-run trial orders. This lets your team verify performance, dimensions, and compatibility in your own systems — the confident way to make a sourcing decision.

• Request a tiered wholesale price quotation for your projected volumes
• Order a CBY sample for hands-on validation
• Discuss OEM and custom configuration requirements

Contact Olive Branch Hydraulics today and secure a reliable, tested, factory-direct hydraulic pump partner for your industrial machinery. We look forward to supporting your next project across Europe, the Americas, the Middle East, and Southeast Asia.
