K3V63 Axial Piston Pump: High-Performance Hydraulic Solution for Heavy Machinery

When downtime on an excavator or loader costs thousands per hour, the hydraulic pump you install cannot be a compromise. The K3V63 Axial Piston Pump from Olive Branch Hydraulics is engineered as a direct, drop-in replacement for Kawasaki K3V63-series axial piston pumps, delivering the pressure stability, volumetric efficiency, and long service life that heavy-duty operators demand.

Supplied through Olive Branch Hydraulics in Hebei, China, this pump is trusted by distributors, repair workshops, and OEM assembly lines across Europe, North America, the Middle East, and Southeast Asia. As a dedicated K3V63 hydraulic pump supplier, we combine hydraulic component sourcing and manufacturing support with a factory-direct pricing model, giving you the margin flexibility and delivery reliability your projects require.

The K3V63 is purpose-built for demanding fluid power applications, including configuration-specific excavators, wheel loaders, agricultural harvesters, and mining support equipment. Every unit undergoes 100% pressure and flow testing before shipment, so you receive a product that is ready to install, not one that needs to be re-checked in the field.

Whether you are sourcing spare parts inventory, running a repair fleet, or launching your own branded hydraulic line, Olive Branch Hydraulics offers a rare combination: OEM-grade quality, competitive K3V63 pump wholesale price, and full custom engineering support. This is the pump you specify when failure is not an option.

K3V63 Technical Specifications & Performance Parameters

The K3V63 is a variable displacement axial piston pump designed for open-circuit applications. Below are the standard performance parameters. Custom P/T port configurations, shaft ends, and displacement variants are available upon request.

The table provides configuration reference information, not a simultaneous maximum operating point. At 63 cm³/rev and 2100 rpm, theoretical flow is 132.3 L/min per section; delivered flow depends on pressure and volumetric efficiency. DT and BDT versions require each section and total shaft power to be specified separately. Confirm the complete pump code, machine serial number, regulator, flange, shaft and ports before ordering.

Core Features & Operational Benefits

Every feature of the K3V63 has been engineered around one goal: helping your customers keep their machines running longer between service intervals. Here is what that means for your business.

• Bi-Metal Cylinder Block: Bronze-steel bonded construction reduces friction and wear, extending service life by up to 30% compared to standard single-metal designs. Benefit: fewer warranty claims, stronger customer retention.
• High Volumetric Efficiency (≥95%): Precision-lapped valve plates and piston shoes minimize internal leakage, delivering full rated flow even under fluctuating load. Benefit: faster cycle times and lower fuel consumption for end users.

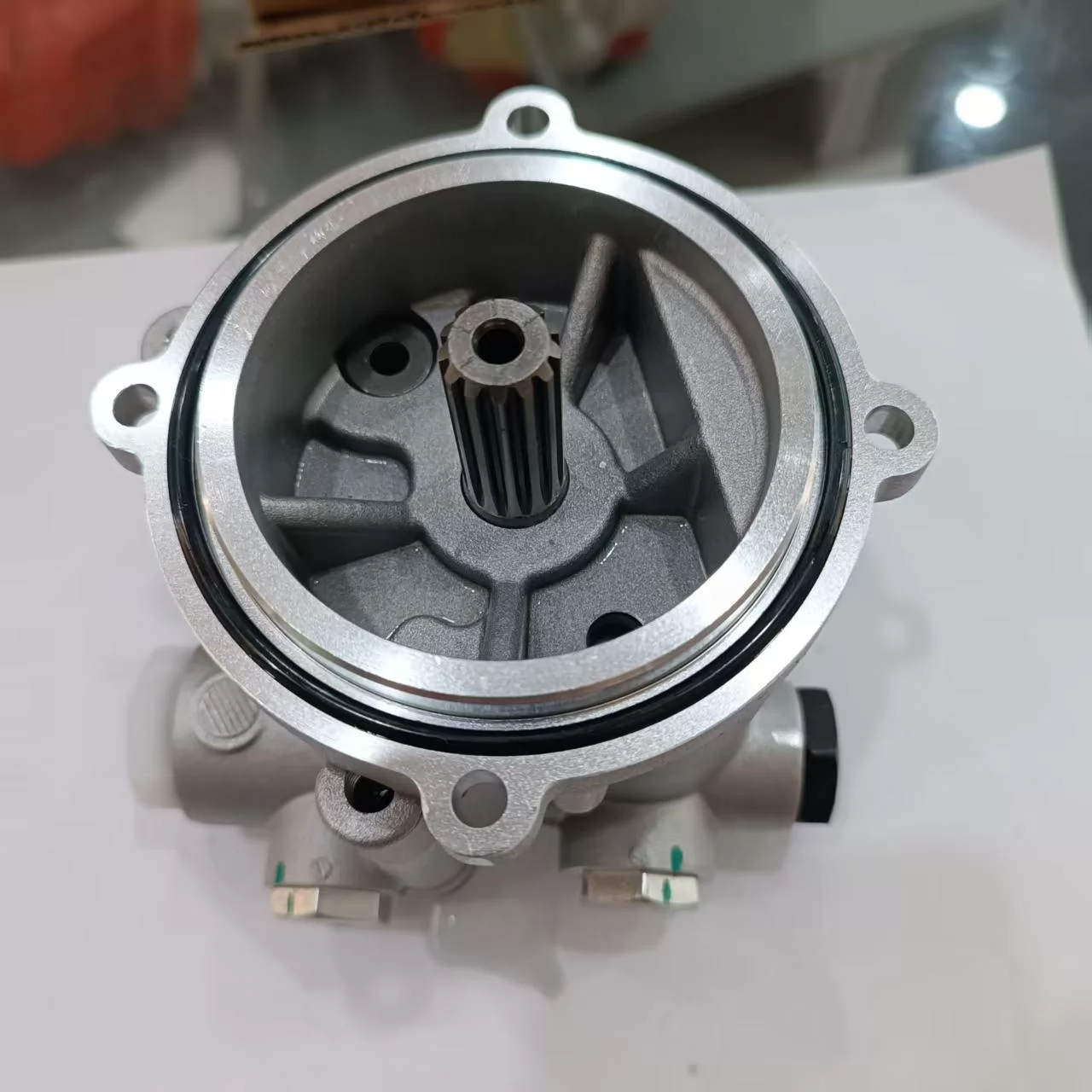

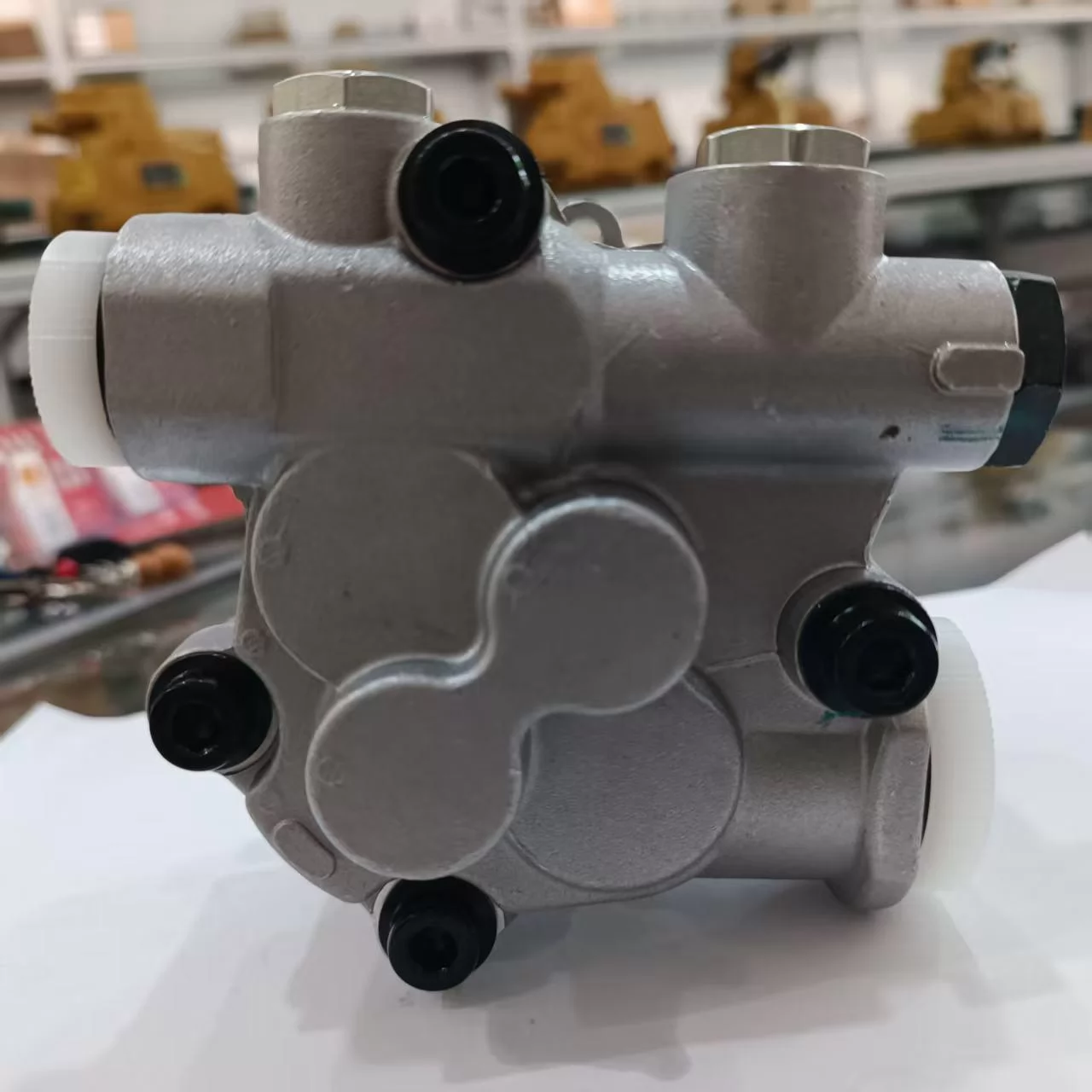

• Integrated Regulator & Pilot Pump: Load-sensing regulator plus gear-type pilot pump built into a single housing simplifies installation and reduces spare parts inventory. Benefit: shorter repair times and lower total cost of ownership.
• Reinforced Drive Shaft: 20CrMnTi carburized shaft with ground splines withstands shock loads common in excavation and mining. Benefit: dependable performance in the harshest job sites.
• Direct Kawasaki Interchange: Bolt-pattern, port position, and shaft dimensions match OEM specifications, enabling drop-in replacement without machine modification. Benefit: rapid installation, minimal downtime.
• Temperature-Stable Sealing: Viton and NBR seal package rated from -20°C to +80°C ensures reliable operation across desert, tropical, and cold-climate markets.

Application Scenarios: Excavators, Loaders & Mining Equipment

The K3V63 is one of the most widely deployed axial piston pumps in the medium-duty hydraulic segment. Its power density and reliability make it the standard choice across multiple industries served by our clients in Europe, the Middle East, and Southeast Asia.

Excavator Hydraulic Systems

As a K3V63 axial piston pump for excavator applications, this unit is the OEM-equivalent solution for 6 to 8-ton class hydraulic excavators. It drives boom, arm, bucket, and swing circuits with the pressure stability required for precise digging and lifting operations. Machine compatibility depends on the complete original pump code and machine serial number; an excavator model or the K3V63 family name alone does not establish interchangeability.

Wheel Loaders & Skid Steers

Compact wheel loaders and skid-steer machines rely on the K3V63 to power lift arms, tilt cylinders, and auxiliary attachments such as augers, grapples, and snow plows. Its high peak pressure rating handles impact loads without regulator hunting.

Agricultural & Harvesting Machinery

Self-propelled harvesters, forage machines, and heavy-duty tractors use the K3V63 for header lift, threshing drive, and steering assistance circuits. The wide temperature tolerance suits both European summer harvests and Middle Eastern desert operations.

Mining & Tunneling Equipment

Underground drilling rigs, roof bolters, and material handling equipment benefit from the K3V63's shock resistance and continuous-duty rating. The pump performs reliably in high-dust, high-vibration environments.

Construction & Municipal Equipment

Concrete pump trucks, road rollers, drilling rigs, and aerial work platforms all specify the K3V63 series for its balance of flow, pressure, and compact footprint.

Precision Materials & Manufacturing Process

The performance of a hydraulic pump is decided long before it reaches the test bench. It is decided by the metal, the machines, and the discipline of the people running them.

The K3V63 body is machined from high-grade QT500-7 ductile iron, selected for its combination of tensile strength and vibration damping. The rotating group, including the cylinder block, valve plate, and piston shoes, is manufactured from bearing-grade bronze bonded to 45# steel, then honed to a surface finish of Ra 0.2 µm or better. The drive shaft is 20CrMnTi alloy steel, carburized to a case depth of 0.8 to 1.2 mm and ground to h6 tolerance for zero-play spline engagement.

Production runs on CNC precision machining centers with dedicated honing, boring, and grinding stations. Critical dimensions are held to ±0.005 mm. Automated assembly lines control torque, cleanliness, and component orientation, eliminating the variability of manual builds. Every rotating assembly is dynamically balanced before final closure of the pump housing.

This is not a rebuilt or reverse-engineered part. It is a purpose-built axial piston pump manufactured under ISO 9001 quality management, ready to compete on OEM production lines.

100% Pre-Shipment Inspection & Quality Control

Our quality control policy is simple: no exceptions. Every K3V63 pump that leaves our factory has passed a full performance verification. This is why global buyers choose Olive Branch Hydraulics as a long-term K3V63 pump OEM manufacturer.

Incoming Material Inspection

Raw castings, forgings, and bar stock are tested using our in-house material analyzer. Chemical composition and hardness values are logged against supplier certificates. Non-conforming material is rejected at the receiving dock, never at the assembly line.

In-Process Quality Control

First-article inspection is performed at every machining operation. Coordinate measuring machines (CMM) verify critical geometry on the cylinder block, valve plate, and swash plate. Surface roughness testers confirm that lapped surfaces meet the Ra specification required for volumetric sealing.

Final Performance Testing

Every completed pump is mounted on a hydraulic test bench equipped with calibrated pressure sensors, flow meters, and leak detectors. Each unit is run through a full performance curve: rated pressure, peak pressure, flow output at multiple speeds, and internal leakage under load. A signed test report accompanies every serial-numbered pump.

Packaging & Traceability

Approved pumps are flushed with clean hydraulic oil, sealed with protective port plugs, and packed in foam-lined export cartons. Serial numbers link every unit back to its production batch and test report, giving you full traceability for after-sales support.

OEM & Custom Engineering Capabilities

Olive Branch Hydraulics is not only a supplier of standard catalog products. We are a dedicated engineering partner for distributors and equipment manufacturers who need branded hydraulic solutions built to their exact specification.

White-Label & Custom Packaging: Your logo, part numbers, color scheme, and multilingual manuals can be applied to the pump housing, nameplate, and outer carton. Ideal for distributors building their own private-label hydraulic brand.

Engineering Modifications: We offer custom P/T port configurations, alternative SAE and metric flange patterns, non-standard shaft profiles (splined, keyed, tapered), and adjusted displacement or pressure settings. Modifications can be delivered against your 2D drawing or 3D model.

OEM Development Workflow

1. Technical inquiry and drawing review by our engineering team
2. Feasibility confirmation and formal quotation within 3 to 5 business days
3. Prototype sample production, typically 20 to 30 days
4. Customer sample validation and design freeze
5. Batch production and 100% test verification

Sample MOQ: Prototype samples available in single units. Series production MOQ starts at 10 units, with tiered pricing for larger volumes. NDA agreements are standard practice for all custom projects.

MOQ, Lead Time & Factory-Direct Pricing

Because we sell direct from our own factory, quotations are based on the confirmed product configuration and order requirements. This is the source of our competitive K3V63 pump wholesale price.

Payment terms: T/T 30% deposit with balance before shipment, L/C at sight, or Trade Assurance. Shipment via sea, air, or express courier from Tianjin or Shanghai port. Volume discounts are available for annual supply agreements.

Request a Quote for Your K3V63 Axial Piston Pump Today

If you are sourcing a reliable K3V63 Kawasaki replacement pump for your fleet, workshop, or distribution network, Olive Branch Hydraulics is ready to support your next order. Our team supports configuration review, quality inspection and export supply.

Send us your specifications today and receive:

• A detailed quotation within 24 hours
• Free technical consultation from our senior engineers
• Full performance test reports and dimensional drawings
• Sample availability for evaluation and validation
• OEM proposal with white-label packaging options

Contact our export team now with your target quantity, required configuration, and destination port. We will respond with a competitive offer and a firm delivery schedule so your project stays on track. Request your K3V63 quote today and secure a hydraulic partner you can build a business on.
