A8V55 Pilot Gear Pump Replacement: Fit And Fault Checks
Buying an A8V55 pilot gear pump? Check the fault, part number, shaft, flange, seals, ports and rotation before…
| Product type | Fixed-displacement pilot gear pump |
|---|---|
| Model / fitment | K3V112 is the host pump series. Match the complete K3V112 pump code and excavator serial number. |
| Part number | Confirm the full code on the original unit or the approved drawing. |
| Displacement, pressure and speed | Confirmed for the selected pilot pump configuration against the original unit or approved drawing. |
| Shaft, flange, ports and rotation | Verify spline tooth count, gear outside diameter and width, mounting register and oil-port orientation against the original pilot pump. |
K3V112 is the host pump series. Match the complete K3V112 pump code and excavator serial number.

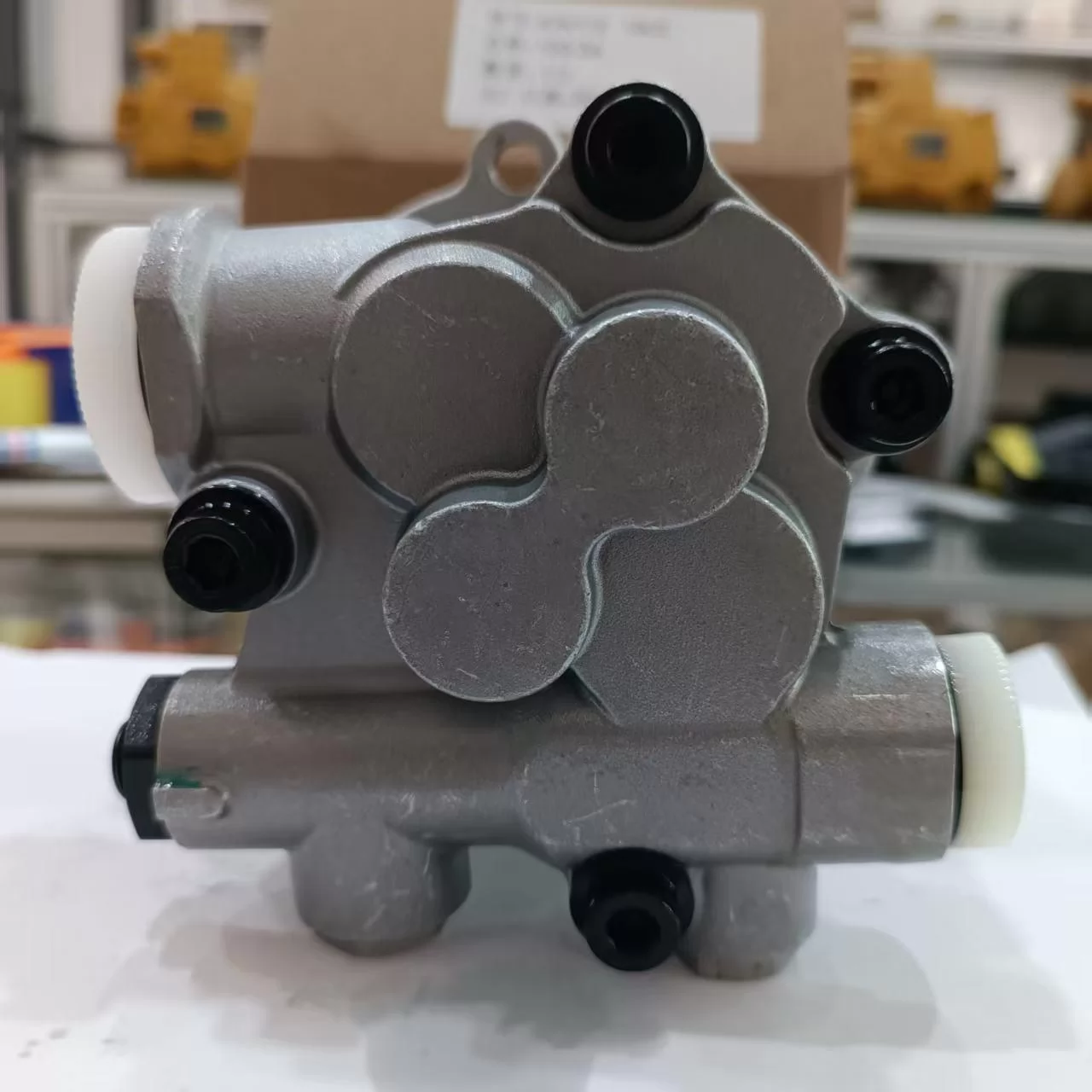

The compact gear pump shown supplies the pilot circuit on the matched hydraulic assembly. Select it using the original pump interfaces and pilot circuit requirements.

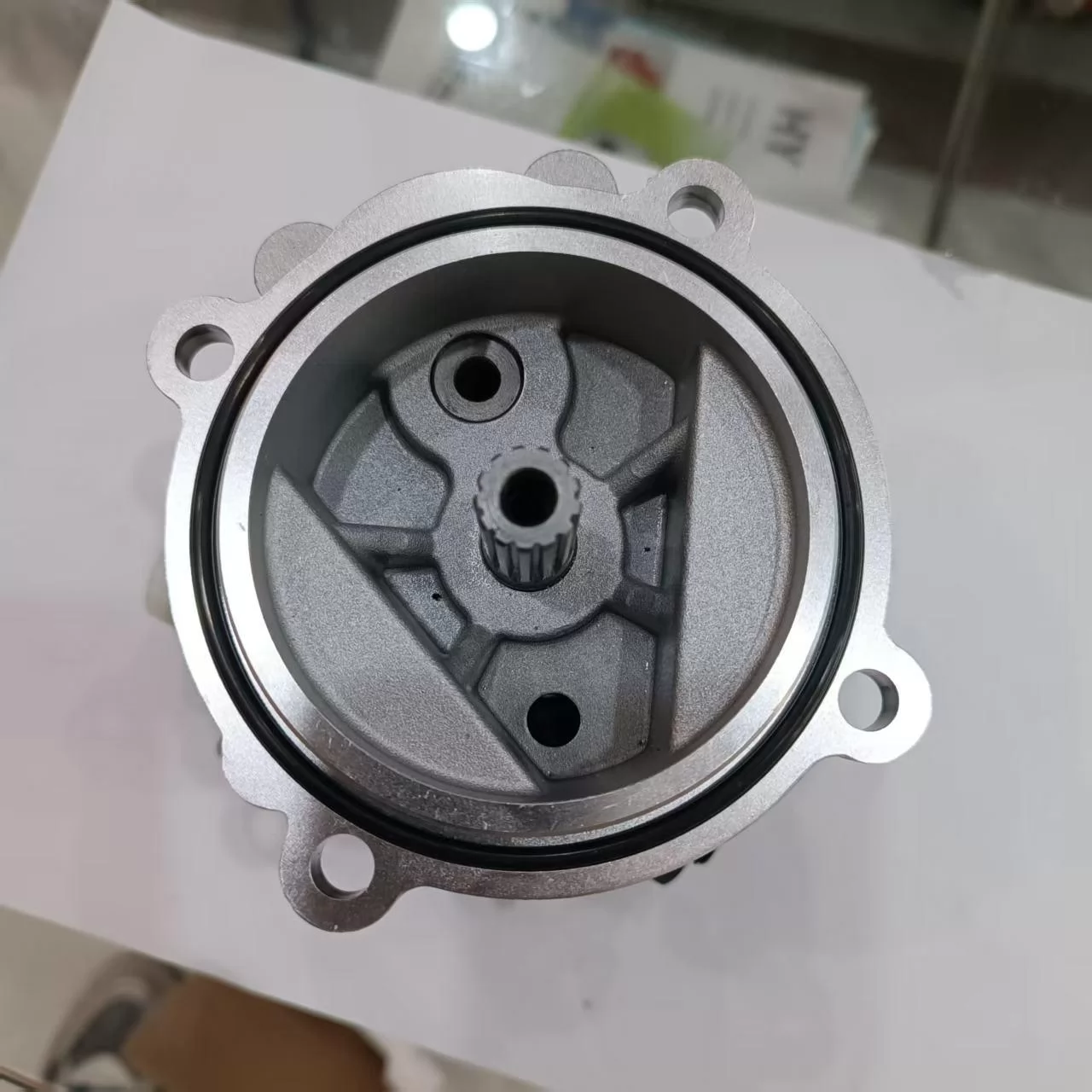

Verify spline tooth count, gear outside diameter and width, mounting register and oil-port orientation against the original pilot pump.
Send the original nameplate or part number, clear photos of the shaft and ports, mounting dimensions and order quantity.
Olive Branch Hydraulics manufactures hydraulic components in Hebei, China. OEM and ODM configurations can be reviewed against a sample or drawing. We confirm the specification, pricing, lead time and warranty terms in the quotation.
An earlier K3V112 sample record lists 8 gear teeth, a gear outside diameter of 28.5 mm and a gear width of 24.5 mm. Compare the original gear, shaft, flange and oil ports before ordering.
Wanye D3 lists four mounting holes, a 13-tooth input spline and 10 or 15 cc/rev. Dimension L is 80.5 mm for 10 cc/rev and 93 mm for 15 cc/rev. These figures apply to the illustrated D3 configurations.
Wanye drawing D3
