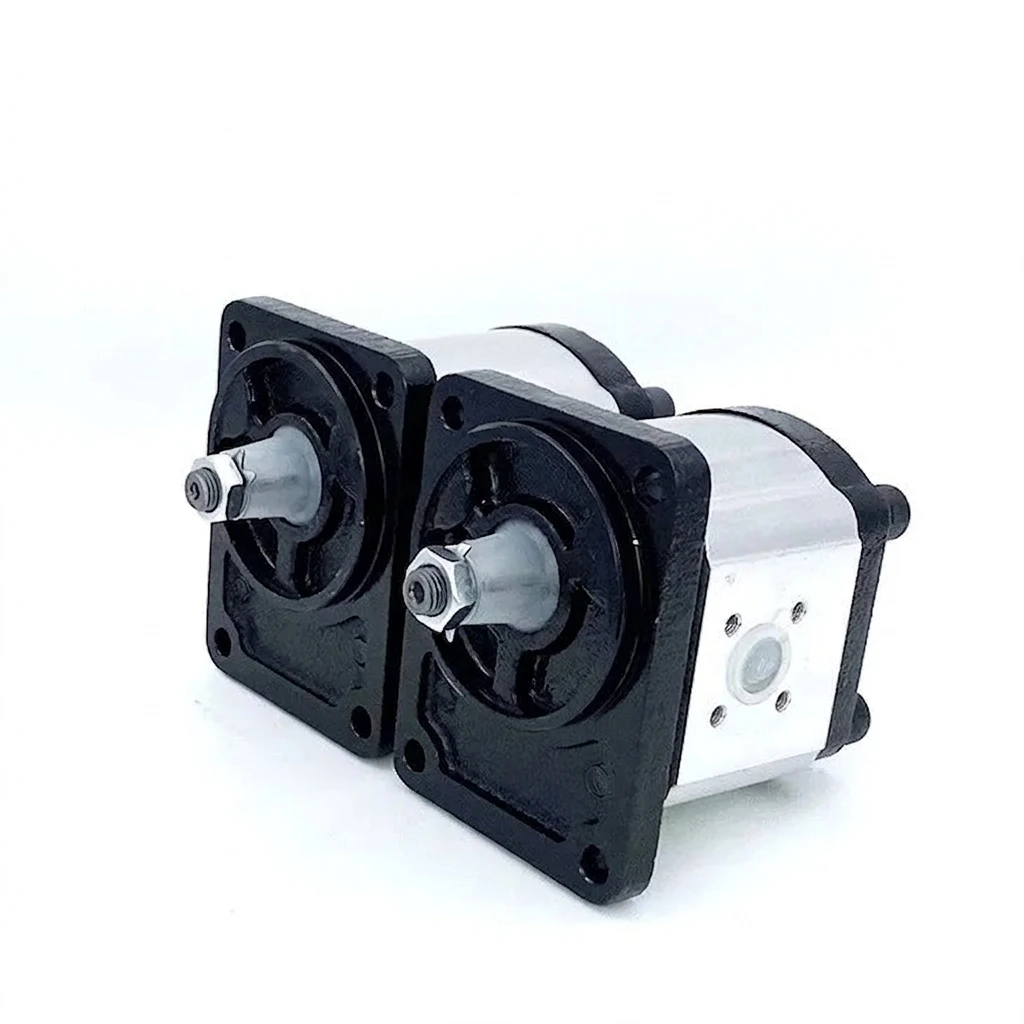

Sourcing a dependable AZPF external gear pump supplier with consistent quality and flexible MOQ? Olive Branch Hydraulics manufactures precision-engineered AZPF fixed displacement gear pumps that deliver drop-in compatibility with Rexroth AZPF series — backed by 10+ years of hydraulic component manufacturing expertise and strict quality control at every production stage.
Whether you need standard catalog models or custom-spec units, we supply procurement teams across 30+ countries with pumps built to perform under demanding industrial conditions — on time and within budget.
| Feature | Benefit |
|---|---|
| Optimized gear tooth profile | Noise and service-life requirements confirmed with operating conditions and test documentation |
| Precision-ground gears & hardened shafts | Volumetric efficiency ≥95%, minimal internal leakage |
| High-quality sealing system | Reliable operation across wide temperature range (-25°C to +100°C) |

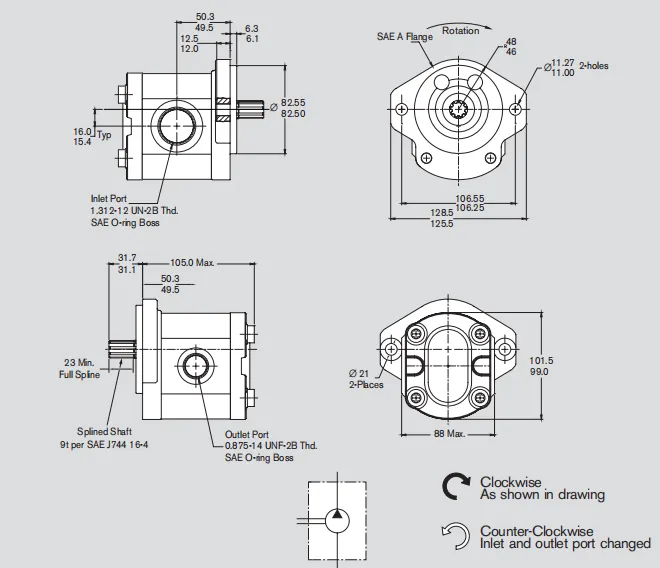

| Drop-in Rexroth AZPF dimensional compatibility | Confirm full code, flange, shaft, rotation and port geometry before replacement |
| Multiple displacement options (4–28 cm³/rev) | One supplier covers your full application range |
| Aluminum alloy housing | Lightweight, corrosion-resistant, suitable for mobile & industrial use |
Price advantage: Factory-direct pricing, 20–35% below European OEM list price
Lead time: Standard models ship within 5–10 business days
Quality assurance: 100% pressure-tested before shipment; batch traceability records included
Flexible ordering: MOQ as low as 5 pcs for standard displacements
| Parameter | Specification Range |
|---|---|
| Type | Fixed displacement external gear pump |
| Displacement | AZPF series range: 4–28 cm³/rev; exact nominal size by full ordering code |
| Rated Pressure | 250 bar (continuous) |
| Peak Pressure | 280 bar (intermittent) |
| Speed Range | 500 – 3500 rpm |
| Volumetric Efficiency | ≥95% at rated conditions |
| Fluid Compatibility | Mineral oil (HLP), biodegradable fluids (HEES, HEPG) |
| Viscosity Range | 10 – 100 mm²/s (optimal: 16–36 mm²/s) |
| Operating Temperature | -25°C to +100°C |
| Port Configuration | SAE, BSP, or metric thread options |
| Mounting | SAE A / SAE B / European 2-bolt / 4-bolt flange |
| Rotation | Clockwise (standard); counter-clockwise available |
| Weight | 1.2 – 8.5 kg (varies by displacement) |
| Noise Level | Specify speed, pressure, installation and measurement method |
| Service Life | Dependent on duty cycle, fluid condition and maintenance |
Series values are for selection reference. Confirm size-specific pressure and speed limits, seal/fluid compatibility, and replacement test data. ISO 4409 test reports apply only when provided for the ordered product.
Olive Branch Hydraulics operates as a white-label manufacturing partner for distributors, system integrators, and OEM machine builders worldwide.
| Service | Details | Typical Lead Time |
|---|---|---|
| Custom displacement | Non-standard cm³/rev to match your circuit design | 15–20 days |
| Shaft modification | Keyed, splined, tapered, or extended shaft options | 10–15 days |
| Port & flange adaptation | SAE, DIN, ISO, or proprietary mounting patterns | 10–15 days |
| Seal material change | FKM, NBR, HNBR, or PTFE for special fluids/temps | 7–10 days |
| White-label packaging | Your brand, your logo, your part numbers on box & nameplate | 5–7 days |
| Custom color / coating | Anodizing, powder coating, or paint to your RAL code | 10–15 days |
| Private labeling & documentation | Branded datasheets, installation manuals, test certificates | 5–7 days |
| Kitting & assembly | Pump + coupling + mounting bracket shipped as one SKU | 10–15 days |
Minimum order for custom work: 50 pcs (negotiable for long-term contracts)
Yes. Our AZPF gear pumps match Rexroth original dimensions, port locations, and mounting patterns. They install directly into existing hydraulic systems without circuit modification. We maintain interchangeability across the full displacement range (AZPF-10, AZPF-11, AZPF-12 sub-series).
Every pump undergoes: incoming material inspection → dimensional verification (CMM) → assembly torque control → 100% hydraulic pressure & flow test → visual inspection → serial number tracing. Test reports are available with each shipment on request.
Standard displacements: MOQ 5 pcs, ships in 5–10 business days. Custom specifications: MOQ 50 pcs, 15–20 business days depending on modification scope.
Yes. Send us the part number, datasheet, or a sample unit. Our engineering team will confirm cross-reference compatibility within 24 hours and provide a quotation.
We accept T/T, L/C, and trade assurance. Shipping via DHL/FedEx for samples; sea freight or rail for bulk orders. FOB Shijiazhuang or CIF to your port — flexible based on order volume.
Every pump carries a 12-month warranty against manufacturing defects. Our technical team provides remote troubleshooting support and replacement dispatch within 48 hours for warranty claims.
Ready to secure reliable Rexroth AZPF gear pump replacement supply at factory-direct pricing? Our sales engineering team responds to every inquiry within one business day — with technical confirmation, pricing, and lead time.
