A8V55 Pilot Gear Pump Replacement: Fit And Fault Checks
Buying an A8V55 pilot gear pump? Check the fault, part number, shaft, flange, seals, ports and rotation before…
| Product type | Fixed-displacement pilot gear pump |
|---|---|
| Model / fitment | EX200 identifies the excavator family. Confirm the machine generation, serial number and main pump nameplate before ordering. |
| Part number | Confirm the full code on the original unit or the approved drawing. |
| Displacement, pressure and speed | Confirmed for the selected pilot pump configuration against the original unit or approved drawing. |
| Shaft, flange, ports and rotation | Compare the splined drive, pilot diameter, mounting holes and port locations. The EX200 model name alone does not establish fitment. |
EX200 identifies the excavator family. Confirm the machine generation, serial number and main pump nameplate before ordering.

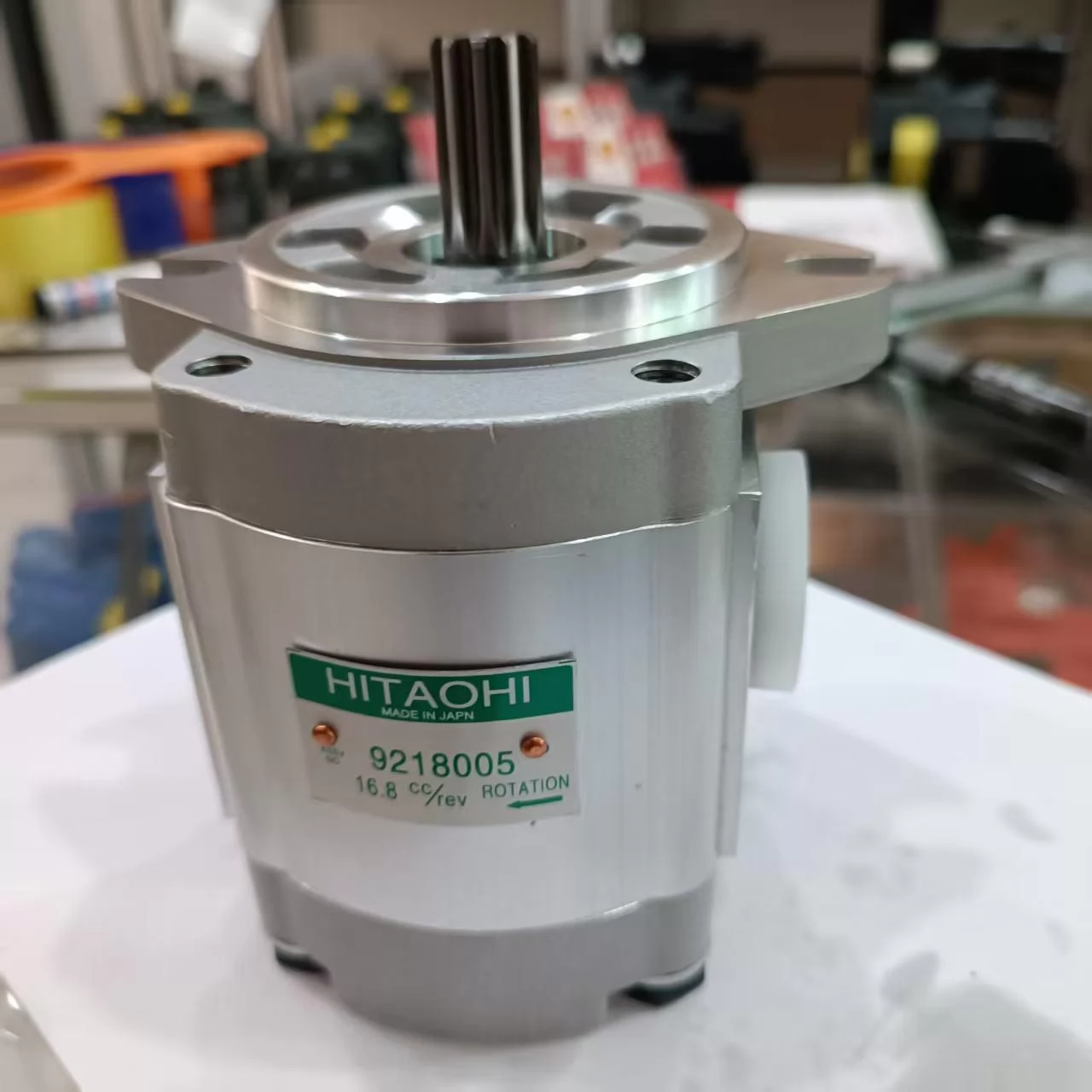

The compact gear pump shown supplies the pilot circuit on the matched hydraulic assembly. Select it using the original pump interfaces and pilot circuit requirements.

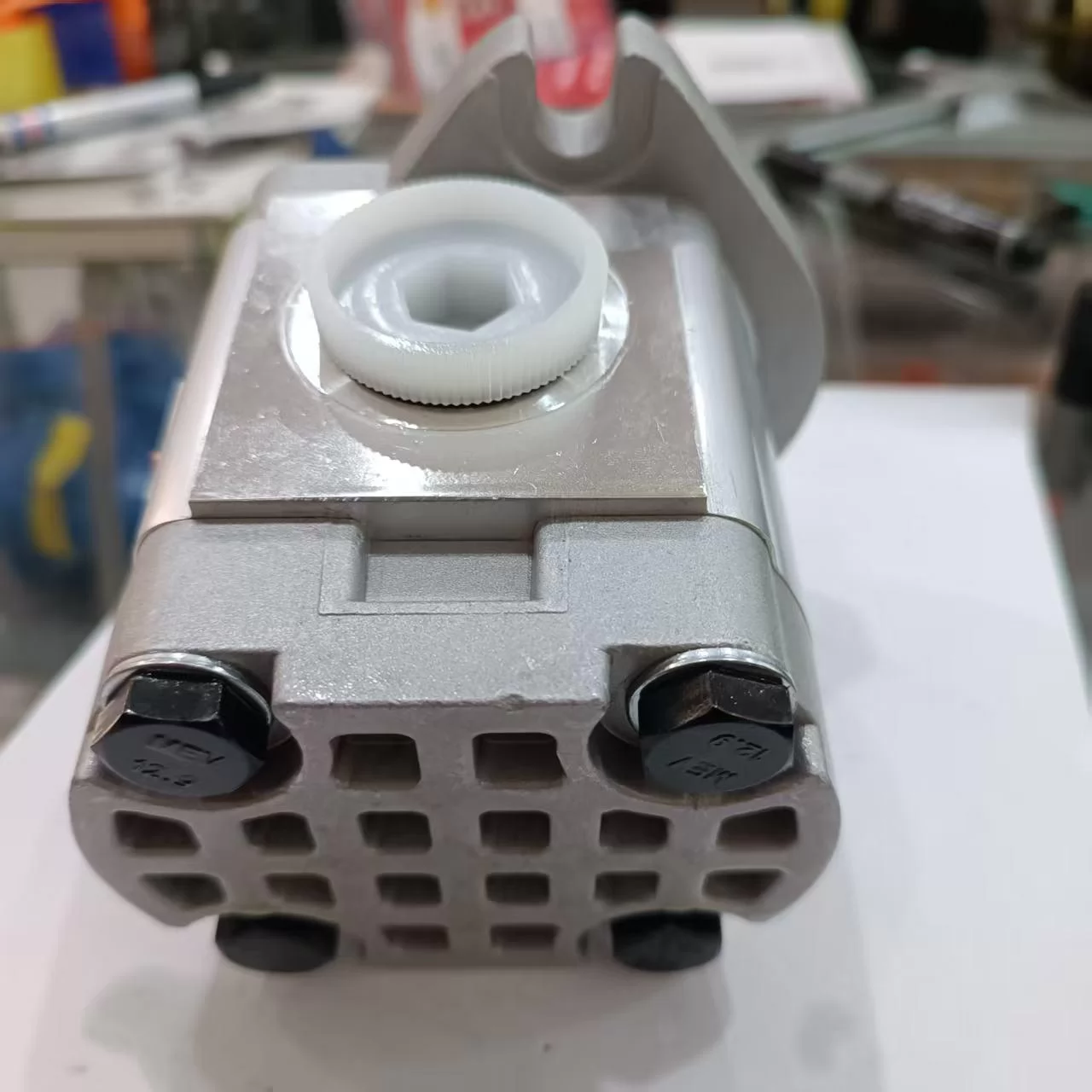

Compare the splined drive, pilot diameter, mounting holes and port locations. The EX200 model name alone does not establish fitment.
Send the original nameplate or part number, clear photos of the shaft and ports, mounting dimensions and order quantity.
Olive Branch Hydraulics manufactures hydraulic components in Hebei, China. OEM and ODM configurations can be reviewed against a sample or drawing. We confirm the specification, pricing, lead time and warranty terms in the quotation.
Provide the full EX200 generation and the original pilot pump number. A number from the main-pump nameplate identifies the host assembly and should be submitted alongside the pilot pump photos.
Send the original pump code, shaft and flange measurements, port details and quantity for a factory quotation. Sample-based OEM and ODM options are available subject to configuration review.
Catalogue references: EX200-1 4181700 / 307002-4210 (CW), EX200-2 4255303 / 307002-4640, and selected EX200-5 variants 4276918 / 307002-4650 (CCW). Wanye D21 shows a Ø82.55 mm pilot, 106 mm bolt spacing and a 10-tooth spline for its -1/-5 configurations. D22 shows a different flange for -2.
Wanye drawings D21 and D22
