4120003676 SDLG LG946L Loader Tandem Hydraulic Gear Pump

4120003676 SDLG LG946L Loader Tandem Hydraulic Gear Pump

Product Overview: 4120003676 SDLG LG946L Gear Pump

Part number 4120003676 is a tandem hydraulic gear pump for the SDLG Lingong LG946L wheel loader hydraulic system. Olive Branch Hydraulics manufactures this wheel loader replacement pump in Xinji, Hebei, China, under catalogue reference MODEL-025 / SKU OBH-LD-025.

The full pump model designation is not confirmed. The exact hydraulic circuit and machine serial range must be checked against your unit before ordering.

Match by part number first, then by physical interface.

We build this Lingong LG946L tandem hydraulic pump against your sample or drawing and quote on EXW terms.

Key Features

• Two-section tandem housing: Two pump sections share one drive line in a black housing. Each section can supply a separate circuit.
• Projecting splined shaft: Drive input is through an external splined shaft. Tooth count, diameter and length are verified against your old pump before production.
• Front flange mount: A front mounting flange locates the pump on the drive housing. The bolt pattern and pilot must match your machine exactly.
• Large upper square side connection face: One square-pattern port face sits on the upper side of the body. Bolt spacing and bore are confirmed from your sample.
• Smaller lower square connection face: A second, smaller square port face sits lower on the body. Its position helps tell this pump apart from similar tandem units.
• Sample- and drawing-based build: Interfaces are reproduced from your physical sample or engineering drawing, not estimated from photos alone.
• Packaging and labelling: White-label and custom packaging are available, subject to confirmation per order.

Technical Specifications

No numerical ratings are published for this pump. Displacement per section, rated pressure, speed, rotation, spline tooth count, dimensions, weight and material grades are unknown, and we do not infer them from the part number.

Fitment is confirmed by checking the physical interfaces against your machine.

Fitment Checklist Before Ordering

1. Confirm 4120003676 on the old pump nameplate or in the SDLG parts book.
2. Record the LG946L machine serial number. The applicable serial range is not yet confirmed.
3. Identify which circuit each pump section feeds on your machine.
4. Count the shaft spline teeth and measure the shaft diameter and projection length.
5. Measure the front flange bolt pattern, bolt hole size and pilot diameter.
6. Measure both square port faces: bolt spacing, thread size, port bore and seal type.
7. Note the rotation direction, viewed from the shaft end.
8. Photograph the nameplate, shaft, flange and both port faces against a ruler.

Why Choose Us

Olive Branch Hydraulics manufactures hydraulic gear pumps, steering pumps and related components in Xinji, Hebei. Every order is built to a confirmed sample or drawing and handed over EXW.

Distributors and Wholesale Buyers

• MOQ and delivery are set per configuration and stated on each quotation.
• Quantity price breaks and carton details are quoted on request.
• Repeat orders are produced against the same approved sample reference.

OEM / ODM Builds

1. Send your sample pump or drawing.
2. We check the interfaces against the fitment checklist.
3. A sample is built for your approval.
4. Batch production follows the approved sample.
5. Goods are handed over EXW Xinji.

Private Label and Repackaging

Your brand can go on cartons and labels, with packaging format subject to confirmation. Small trial quantities are quoted per configuration.

Fleet Operators and End Users

Send the removed pump or checklist photos. We compare shaft, flange and port faces before quoting.

FAQ

Does 4120003676 fit every SDLG LG946L?

Not confirmed. The serial range and circuit must be checked against your machine using the fitment checklist above.

What are the displacement and pressure ratings?

They are not published. We match the pump to your sample, drawing or nameplate data rather than estimating figures from the part number.

Can you build this pump to my own sample or drawing?

Yes. OEM/ODM work is sample- and drawing-based, with a sample built for approval before batch production.

What are the MOQ and lead time?

Both depend on configuration. They are stated on the quotation once the interfaces are confirmed.

What trade terms and packaging do you offer?

EXW Xinji, Hebei. White-label packaging and custom labels are available, subject to confirmation per order.

Call To Action: Quote for the 4120003676 Tandem Pump

Send the part number, machine serial, quantity, destination market and checklist photos through the inquiry form. We will reply with an EXW quotation that states the configuration-specific MOQ, delivery and sample terms.

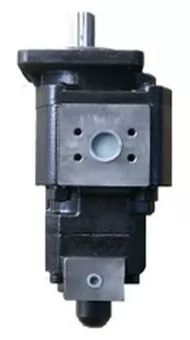

The gallery includes the original catalogue photograph and three direct crops of the same unit: shaft and flange, body and ports, and overall detail.
