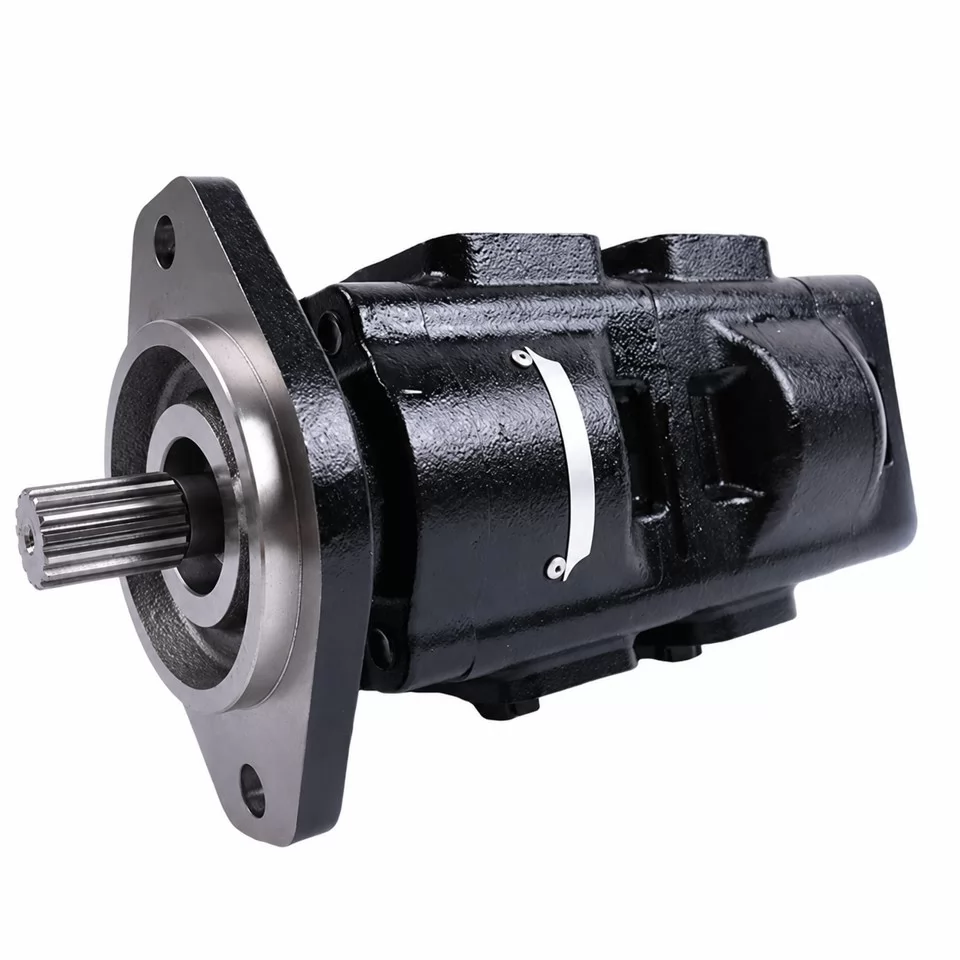

332/F9029 OEM-Quality Tandem Hydraulic Gear Pump For JCB

332/F9029 Product Overview

The 332/F9029 hydraulic pump (also searched as 332F9029 or 332-F9029) is a two-section tandem gear pump. It is used for main hydraulic pump enquiries on JCB 3CX and 4CX backhoe loaders. Olive Branch Hydraulics offers original-equipment quality (原厂原装品质) in Hebei, China, and supplies it EXW Hebei after the shaft, flange, port and rotation details are matched against a confirmed drawing.

The same catalogue row also lists 20/925579, 20/925339, 20/925338, 20/925578, 332/F9028, 7029121120, 7029120047 and 7029120023.

These nine numbers help us match your enquiry. They do not mean the parts are interchangeable without checks. Machines from different serial ranges can use different interfaces, so we confirm each order against the machine PIN and the physical interfaces.

Buyers in Spanish-, French- and Russian-speaking markets often search bomba hidráulica 332/F9029, pompe hydraulique 332F9029 or гидронасос 332/F9029. Those enquiries go through the same drawing review.

Key Features

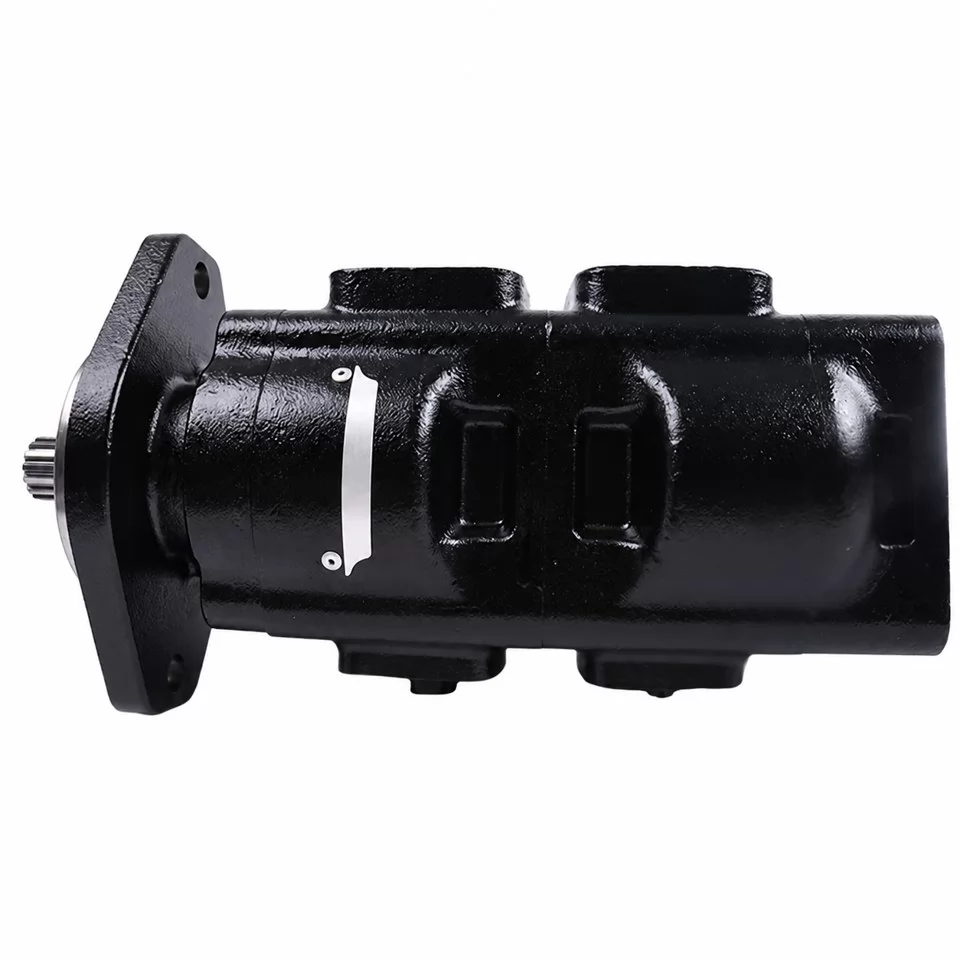

The catalogue shows four interface features. Each one is checked before machining.

Two-section tandem layout: front and rear gear sections stacked on one drive line. The required circuit arrangement must be checked against the approved drawing.

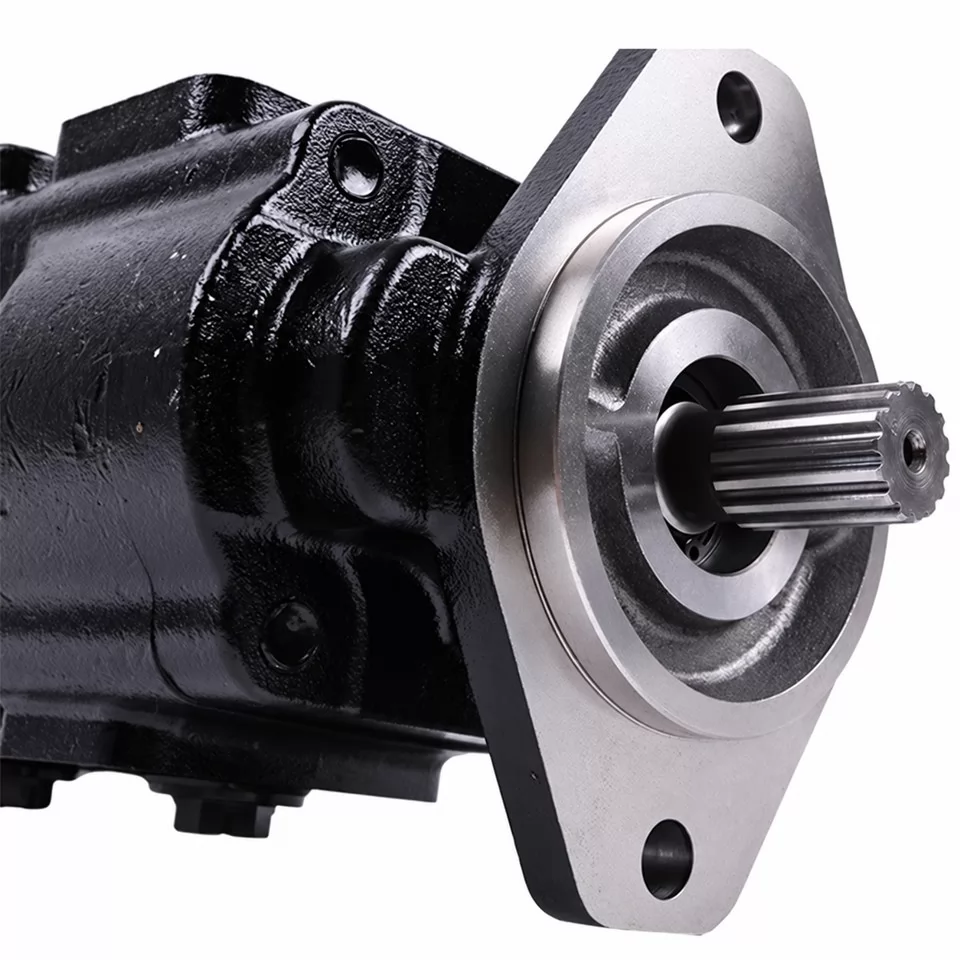

Splined drive shaft: we confirm spline count, pitch and engagement length from your drawing or sample. A shaft that is slightly off will not engage the drive coupling.

2-hole oval mounting flange: we check the pilot diameter, bolt-hole spacing and flange thickness against the drive pad.

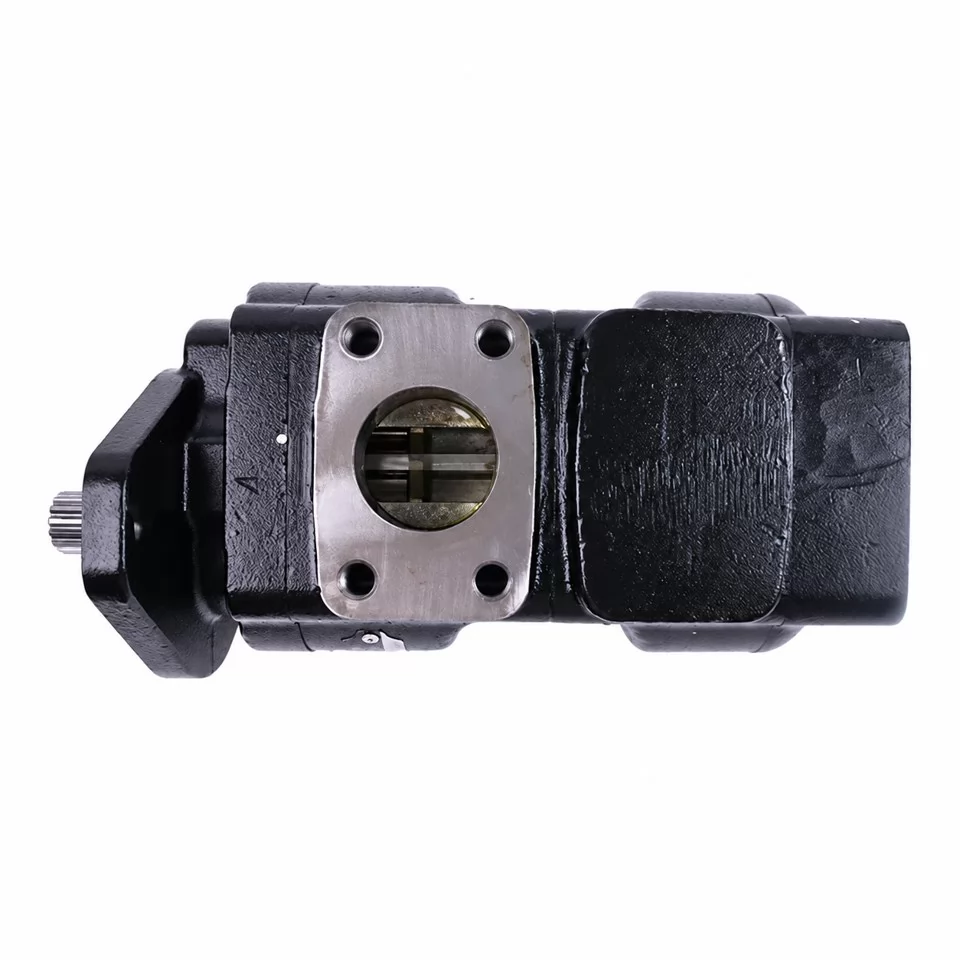

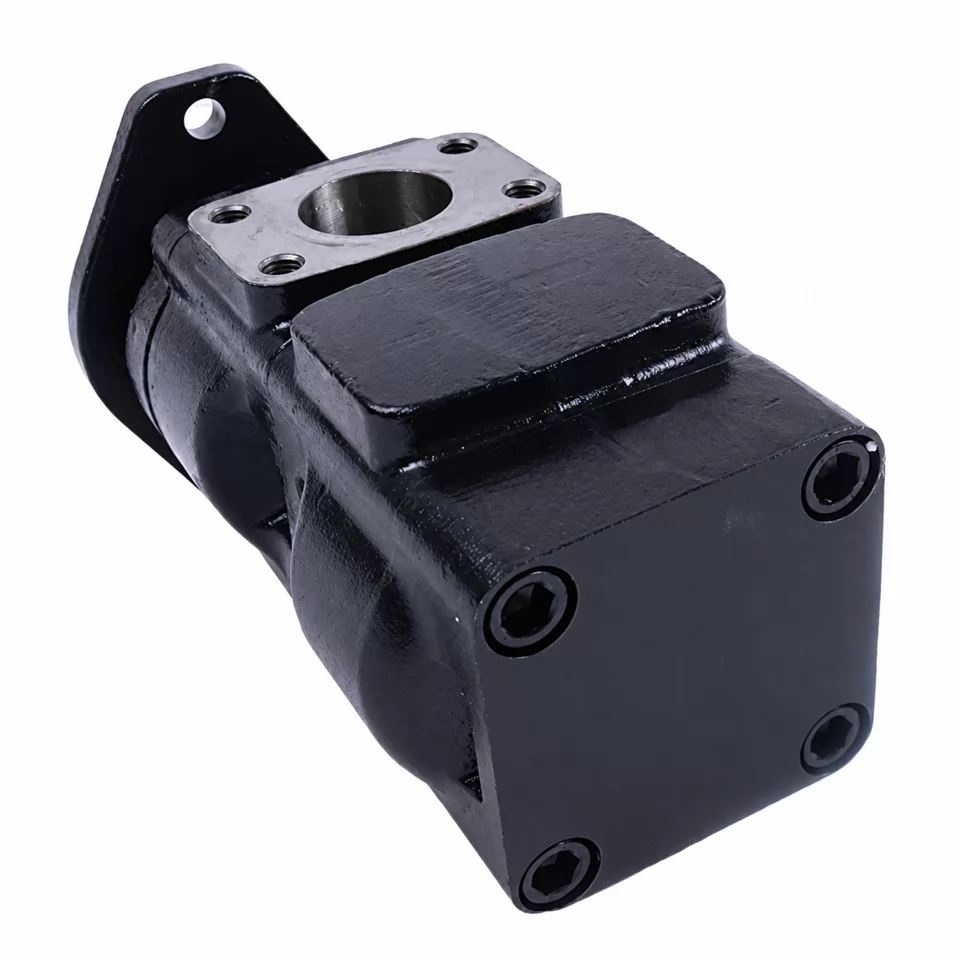

Four-bolt main port: we check the visible four-bolt port pattern, bore, threads and the complete connection layout against your drawing.

Fixed rotation: the required direction is configuration-specific. We confirm the direction from the nameplate, the drawing or the sample before assembly.

Pre-shipment inspection: we check the interface dimensions against the confirmed drawing before dispatch. Test records are supplied only when the order specifies them.

Marking and packaging: you can choose neutral marking or Olive Branch Hydraulics marking. White-label cartons and labels are also available.

Technical Specifications: How to Select the Right 332/F9029 Configuration

Four details decide whether a 332/F9029 tandem pump fits your machine. Section displacement, pressure and flow are quoted only after they are confirmed from your nameplate or drawing.

Reference Numbers and Search Variants

A matching reference starts the review. The order is released only after the shaft, flange, ports, rotation and PIN are approved.

Why Choose Us

We manufacture hydraulic gear pumps in Hebei and quote directly from the factory, EXW Hebei. Supply is subject to confirmation of the configuration you require.

Custom and Sample Process

Send the PIN, photos or drawing, and the quantity you need.

We return an interface comparison and a quotation for that configuration.

You approve the drawing, including the shaft, flange, ports and rotation.

We produce a small-batch trial or sample, with pre-shipment inspection.

Repeat batches are built to the same approved drawing.

You can customise the shaft spline, flange, port pattern, marking, labels and cartons. Sample cost, MOQ and lead time are quoted for each configuration, because tooling depends on how far your configuration differs from the catalogue version.

Terms by Buyer Type

We supply only documents that have been verified for your order. Available inspection arrangements are confirmed with your quotation.

FAQ

Are 332/F9029 and 20/925579 the same pump?

Not automatically. They share a catalogue row, so we treat them as matching references and confirm fit from the PIN and the interfaces.

What do you need for a quotation?

The machine PIN, the reference number, the quantity, and photos of the shaft, flange, ports and nameplate. A drawing makes the review faster.

Can you match 332/F9028 or 7029121120 enquiries?

Yes, after the same review. We confirm the shaft, flange, ports and rotation before quoting.

Can you supply displacement and pressure data?

Yes, once they are confirmed from your nameplate or drawing. We do not publish figures for unverified configurations.

What is the MOQ and the lead time?

Both are quoted for each configuration. A pump that matches the catalogue interfaces usually needs less setup than a modified shaft or flange.

Do you offer samples or trial orders?

Yes. We accept small-batch trials, and the sample cost is stated in the quotation for your configuration.

Which trade terms apply?

We quote EXW Hebei, China. Other Incoterms and payment terms are agreed for each order.

Can the pumps carry our brand?

Yes. We offer white-label marking, custom cartons and barcode labels.

Call To Action

Send the PIN, the reference number (for example 332/F9029 or 20/925579), the quantity, the destination market, and photos of the shaft, flange and ports. You will receive an interface check and a factory-direct EXW Hebei quotation covering price, sample cost and lead time for that configuration.
