BMPH Series H-Port Orbital Hydraulic Motor 50-500 Cc/rev

BMPH Hydraulic Motor: H-Port Gerotor Motor, 50-500 cc/rev (BMPH100 / BMPH-100)

Product Overview

The BMPH hydraulic motor from Olive Branch Hydraulics is an H-port gerotor motor listed in 11 nominal catalogue sizes, from 50 to 500 cc/rev. It is built in Hebei, China, and supplied EXW for agricultural, forestry and construction drives.

BMPH100, BMPH-100 and BMPH 100 identify the nominal 100 size in an enquiry. The external code BMPH-100-H2-K-S belongs to a different manufacturer's ordering system. We confirm every order against your drawing and duty point before supply.

Key Features of the BMPH H-Port Orbital Motor

• H-port layout: A/B port spacing is 45.7 ±0.2 mm, and the distance from the flange face to the port centre is 42.7 mm. Check both figures before you plumb into existing hose runs.
• F5 two-hole diamond flange: 82.5 mm pilot.
• F6/F7 square flange: threaded-hole pattern with a 44.4 mm pilot.
• Shaft codes A7-A13: keyed, cross-hole, spline and taper options are each built to a confirmed drawing.
• 11 displacements: the H1 dimension runs from 9 to 89 mm, and the H installation length grows from 143 to 223 mm. Check clearance before you move up a size.
• Model aliases recognised: BMPH100, BMPH-100 and BMPH 100 identify a nominal size. External H2/K/S code segments are checked against the original manufacturer's chart.

Technical Specifications

Four inputs decide the right BMPH motor: displacement, flange, shaft code and port geometry. Pressure, torque and speed ratings are confirmed per displacement in our quotation, checked against your duty point.

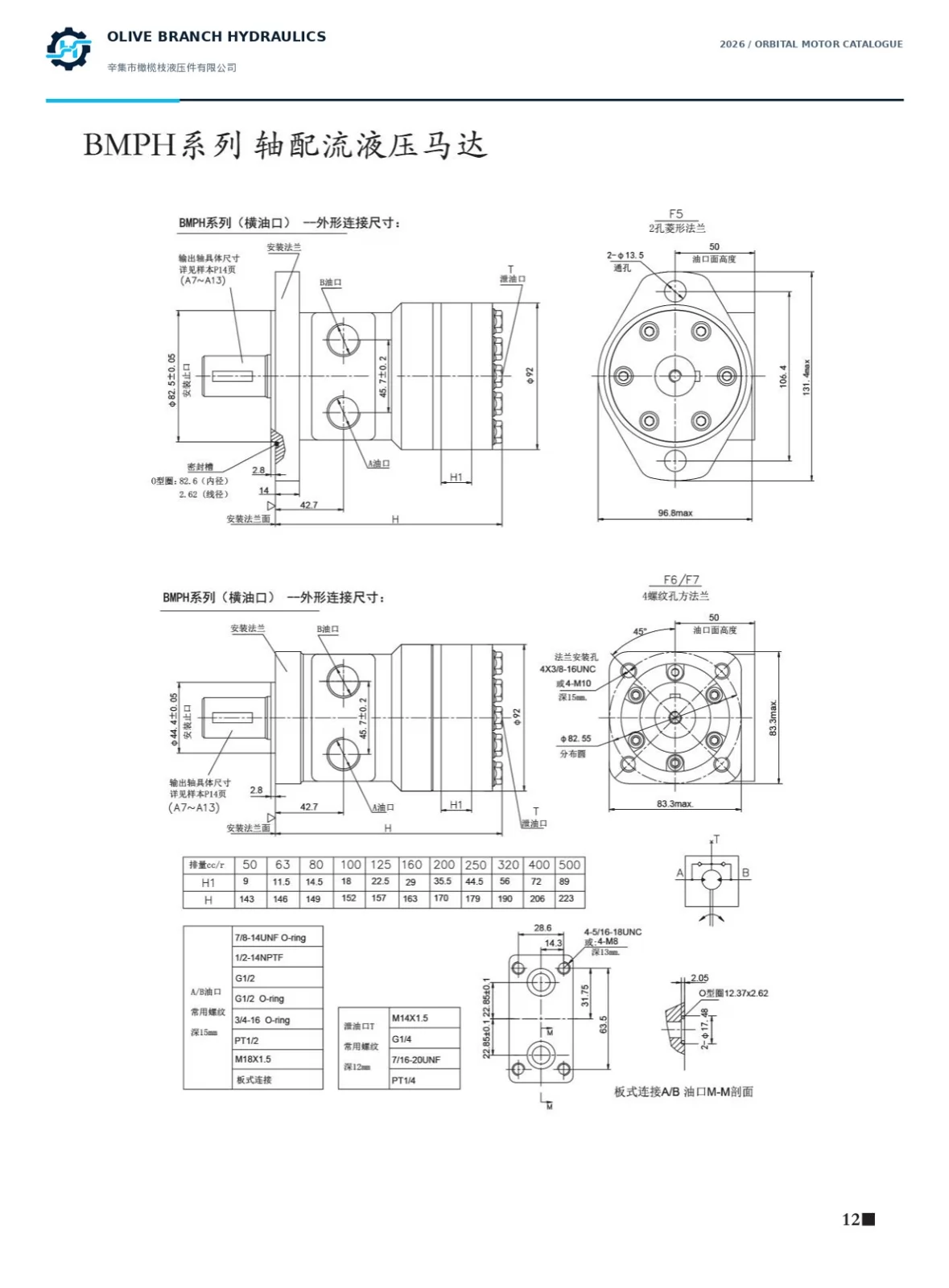

BMPH Dimension Chart

Ordering Checklist

1. Displacement, or the reference code you are replacing.
2. Flange: F5 (82.5 mm pilot) or F6/F7 (44.4 mm pilot).
3. Shaft code A7-A13, plus a drawing for keyed, cross-hole, spline or taper shafts.
4. Port thread standard and confirmation of the H-port layout.
5. Duty point: working pressure, flow, required speed and torque.
6. Application: agricultural, forestry or construction drive.
7. Quantity per order and annual volume.
8. Packaging, label and branding requirements.

Model Names and Search References

Common descriptions include H-port hydraulic motor, aligned side-port orbital motor, spool-valve gerotor motor and LSHT motor. International enquiries may use motor hidráulico BMPH, moteur hydraulique BMPH or гидромотор BMPH.

Original Part Numbers for Comparison Enquiries

Dynamic Fluid Components' 2019 crossover catalogue lists the following original-reference pairs. These identify existing motors for comparison; they are not Olive Branch part numbers or approval of a direct replacement.

Approve a replacement only after checking flange, shaft, ports, case drain, seal, working pressure, flow, speed and torque. The original reference size 315 must not be automatically relabelled as our dimension-chart size 320.

Why Choose Us

Olive Branch Hydraulics manufactures hydraulic gear pumps, orbital motors and related components in Hebei, China. Every BMPH order ships EXW once you have signed off the drawing and duty point.

Supply Options by Buyer Type

• Distributors and wholesalers: tiered EXW quotes at the quantity breaks you specify, with displacements and flanges mixed across one order.
• OEM/ODM: shaft, flange and port configurations built to your drawing. Sample and production terms are confirmed for the specified configuration.
• Private label: white-label motors with custom cartons and labels.
• Trial orders and start-ups: sample quantity, price and schedule are quoted to validate fit before volume orders.
• Regional dealers: repeat supply of confirmed configurations under your existing part numbers.

Custom Order Process

1. Send your drawing, duty point and quantity.
2. We confirm the configuration against our ordering and dimension charts.
3. We supply a sample for fit and function checks.
4. You approve the sample, and we start production.
5. Goods are released EXW Hebei with your packaging.

FAQ

Are BMPH100, BMPH-100 and BMPH 100 the same motor?

They are spelling variants of the nominal 100 size, not a complete configuration. BMPH-100-H2-K-S is an external manufacturer reference and must be checked separately.

Can you supply against 151-2003 or 101-1035?

We handle these as comparison enquiries only, referenced through the Dynamic catalogue entry BMPH-100 H2-K-S. They are not Olive Branch SKUs, and we do not claim proven direct interchangeability, so send the original nameplate or drawing for a dimensional comparison.

Is the 315 size the same as 320?

Not by default. Our ordering chart lists 315 and our dimension chart lists 320, so we confirm the displacement and H dimension in writing for each order.

Which flange fits my gearbox or bracket?

F5 uses a two-hole diamond pattern with an 82.5 mm pilot, and F6/F7 uses a square threaded-hole pattern with a 44.4 mm pilot. Match the pilot diameter and bolt pattern on your mating part.

Do the product photos show the displacement I am ordering?

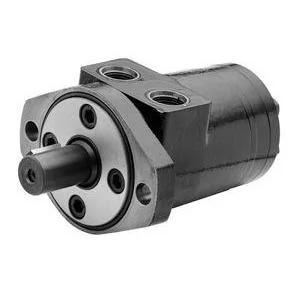

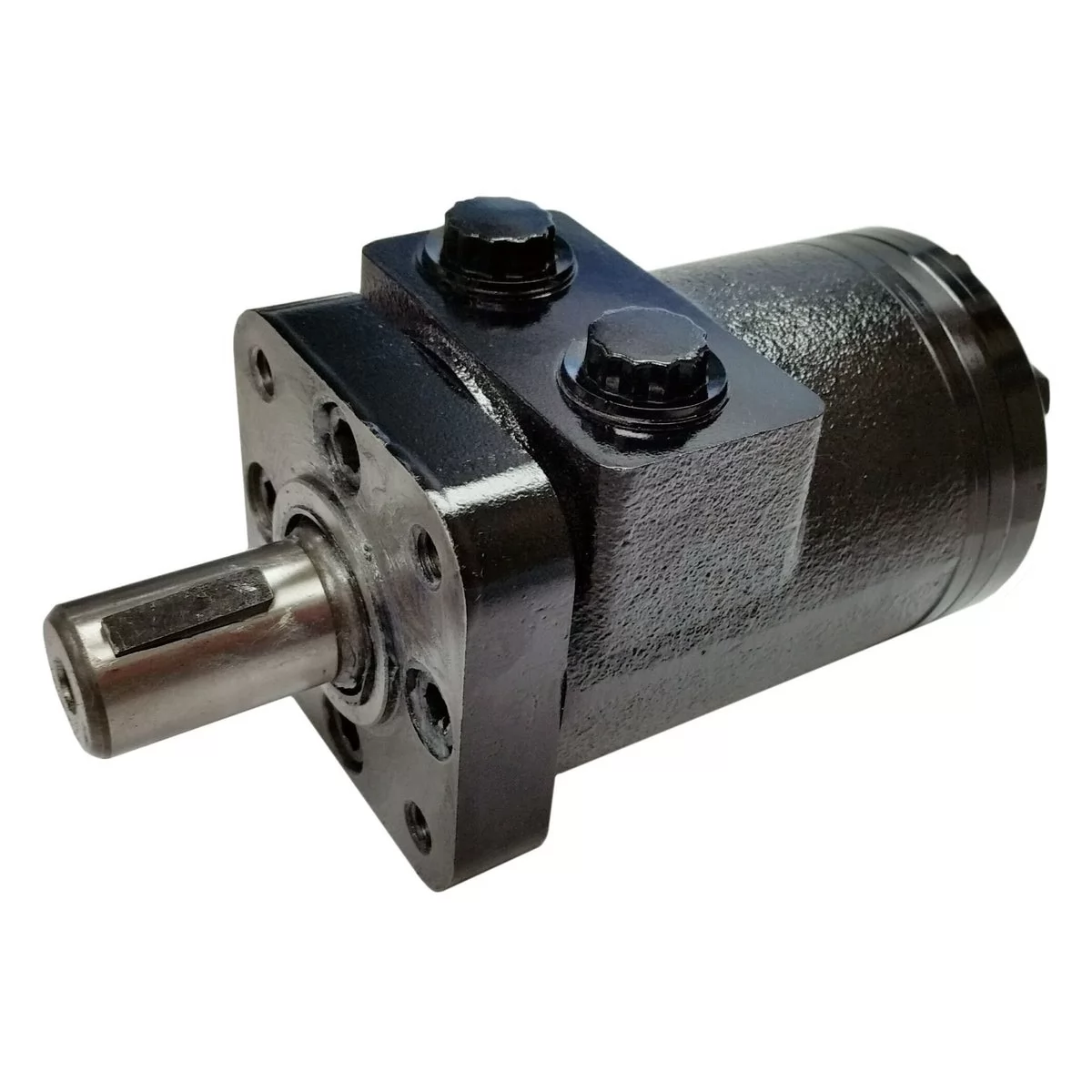

No. The photos illustrate the two-bolt and four-bolt variants only, not a specific supplied displacement.

Where are pressure and torque ratings?

They are stated per displacement in your quotation, matched to your duty point. We do not publish generic ratings that have not been checked against your application.

Do you offer samples and private-label packaging?

Samples and private-label packaging can be quoted per configuration. Quantity, sample cost, schedule and packaging are stated on the confirmed quotation.

Call To Action

Send your displacement or reference code, flange, shaft code, duty point and quantity breaks. We will return a tiered EXW Hebei quotation with sample terms and the confirmed BMPH drawing for your approval.
