BM5 Series Hydraulic Motors

BM5 Series Hydraulic Motors | Low Speed High Torque Orbital Motor Manufacturer

Sourcing reliable BM5 series orbital motors for your industrial machinery, agricultural equipment, or hydraulic system integration? Olive Branch Hydraulics, a specialized BM5 hydraulic motor manufacturer based in Hebei, China, delivers fully compatible BM5 series units engineered for demanding low-speed, high-torque applications. With over 10 years of OEM production experience, ISO-grade machining tolerances, and a 100% pressure-tested output policy, we supply distributors, wholesalers, and OEM equipment builders worldwide with motors that match or exceed Danfoss OMP / White Drive / M+S BM5 dimensional and performance standards. Competitive FOB pricing, 15–25 day lead times, and white-label packaging available on every order.

Features & Benefits

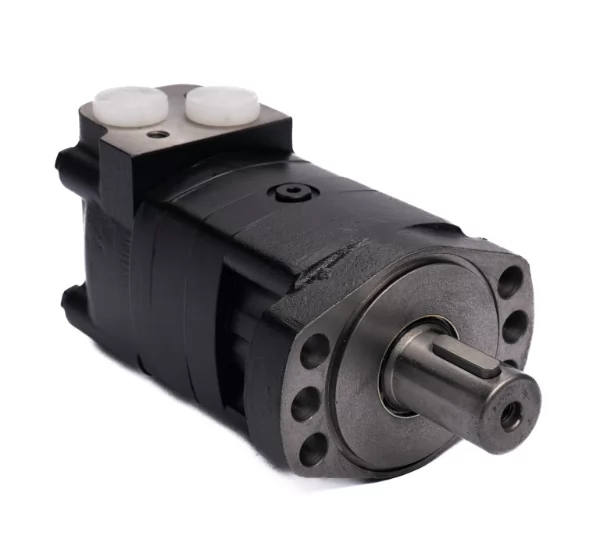

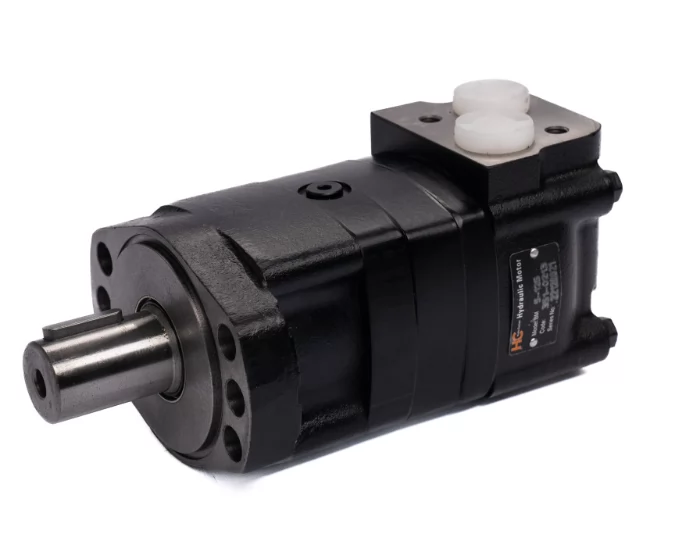

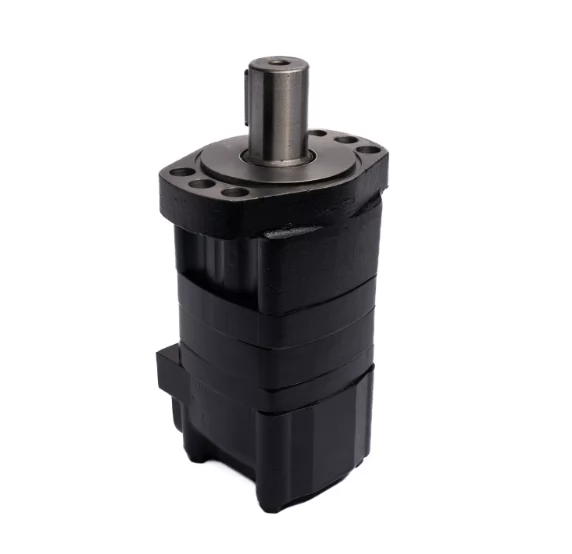

The BM5 series is a gerotor-based orbital hydraulic motor designed to convert hydraulic energy into rotational mechanical output at low rotational speeds with exceptionally high starting torque. Our manufacturing program focuses on three buyer priorities: interchangeability, durability, and delivery reliability.

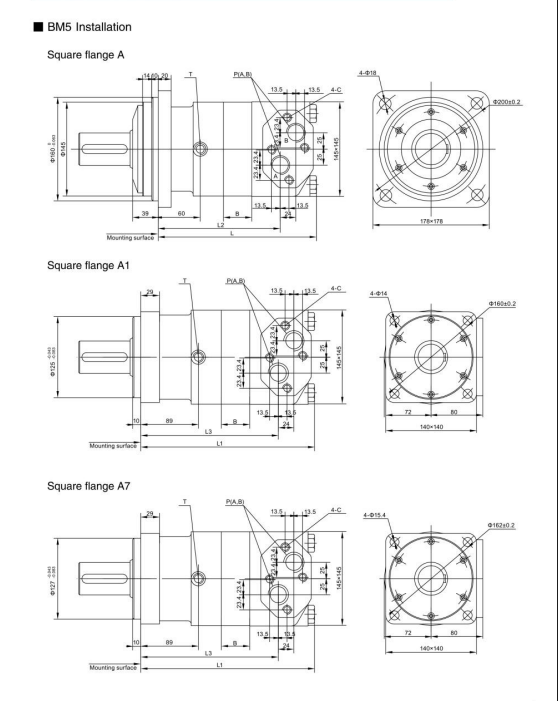

• Drop-in Compatibility: Mounting flange, shaft dimensions, and port configurations are fully interchangeable with mainstream BM5 / OMP / SMP series — eliminating redesign costs for your end customers.
• High Volumetric Efficiency: Up to 92% volumetric efficiency through precision-ground gerotor sets (tolerance ≤ 0.005 mm), reducing internal leakage and extending service life.
• High Starting Torque: Starting torque reaches 90% of theoretical torque, ideal for conveyors, winches, sweepers, augers, and agricultural drives.
• Robust Pressure Rating: Continuous pressure 14 MPa, intermittent peak 17.5 MPa, max 21 MPa — built with hardened cast iron housing and chrome-plated output shafts.
• 100% Tested Output: Every motor undergoes a no-load run-in test, pressure test, and leakage test before crating.
• Wide Displacement Range: 8 standard displacements from 50 cc/rev to 400 cc/rev cover the majority of mobile and industrial applications.
• Cost Advantage: Direct-from-factory pricing — typically 30–45% below European-branded equivalents at equivalent tolerance grades.

Typical Applications

• Agricultural machinery: seeders, sprayers, rotary cutters, feeder mixers
• Construction equipment: skid steer attachments, mini excavators, road sweepers
• Industrial systems: conveyor drives, packaging lines, plastic recycling
• Marine & winch systems: anchor windlasses, capstan drives
• Municipal vehicles: sweepers, snow blowers, hydraulic fan drives

Technical Specifications

The table is a selection reference requiring model-specific confirmation of continuous, intermittent and peak ratings. Maximum speed, torque, pressure and flow are not simultaneous operating points. At 396.5 cm³/rev and an 11.5 MPa pressure differential, ideal theoretical torque is about 726 N·m before mechanical losses; the previous 800 N·m value is not supported by these conditions. Custom displacements, shaft profiles (straight keyed, splined 6B/13T, tapered 1:10), and port options (G1/2", SAE-10, M22×1.5) are available on request.

Construction & Materials

OEM / ODM Capabilities

As a dedicated BM5 hydraulic motor wholesale partner, Olive Branch Hydraulics is structured to serve importers, distributors, and equipment manufacturers who require private-label production rather than retail-grade goods. Approximately 70% of our annual output ships under client brand identities to markets in North America, Europe, the Middle East, and Southeast Asia.

What We Customize

• Branding: Laser-engraved nameplates, silk-screen housing logos, color-matched powder coating (RAL standard).
• Packaging: White-label cartons, custom inner foam, multilingual user manuals, barcode & SKU labeling per your ERP system.
• Mechanical Customization: Non-standard shaft lengths, alternative flange patterns (SAE A 2-bolt / 4-bolt, Cyclo), integrated relief valves, anti-cavitation valves.
• Performance Tuning: Adjusted displacement, FKM seals for high-temp applications, marine-grade corrosion coating.
• Documentation: Country-of-origin certificates, CE declarations, customized test reports per batch.

Production & Trade Terms

Request a Quotation — Get Your BM5 Project Moving

Whether you are a distributor seeking a stable BM5 hydraulic motor supplier, an OEM manufacturer looking to lower bill-of-material costs, or a procurement officer evaluating BM5 series orbital motor for sale on competitive terms, Olive Branch Hydraulics is ready to support your sourcing roadmap.

Send your inquiry today and receive within 12 hours:

A formal FOB / CIF quotation tailored to your displacement & volume requirements

2D / 3D CAD drawings for engineering verification

A cross-reference compatibility sheet against your current motor brand

Free product samples evaluation plan (MOQ-linked refund policy)

OEM packaging mockup if private-label branding is required

Contact Olive Branch Hydraulics now: Submit the inquiry form on this page with your target model, monthly demand, and destination port. Our export team will respond with a complete commercial proposal — no obligation, no boilerplate, just the data your purchasing decision deserves.

Manufacturing in Shijiazhuang since 2014. Trusted by 200+ B2B buyers across 40 countries. Your reliable long-term partner for BM5 orbital hydraulic motors.
