BM2 Series Hydraulic Motors

Item	Specification
Motor Type	Orbital Hydraulic Motor
Series	BM2
Performance	High Starting Torque
Efficiency	Stable & Efficient Operation
Design	Compact & Lightweight
Noise Level	Low Noise Operation
Service Life	Long Working Life
Customization	OEM & ODM Supported
Options	Custom Shaft / Flange / Port
Application	Agricultural, Construction & Industrial Machinery

Product Information

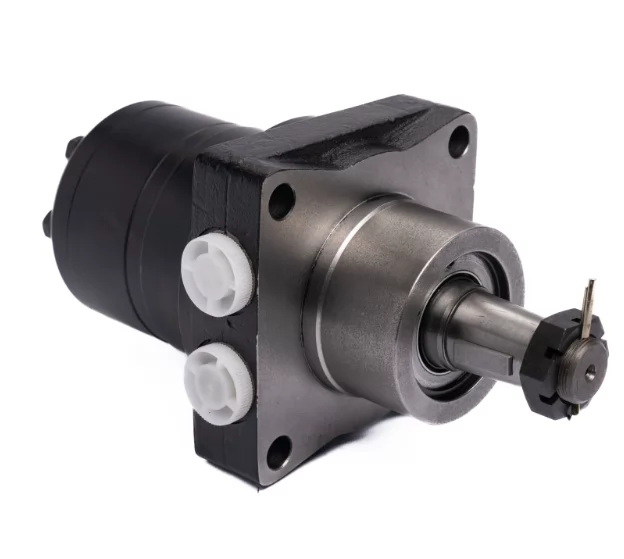

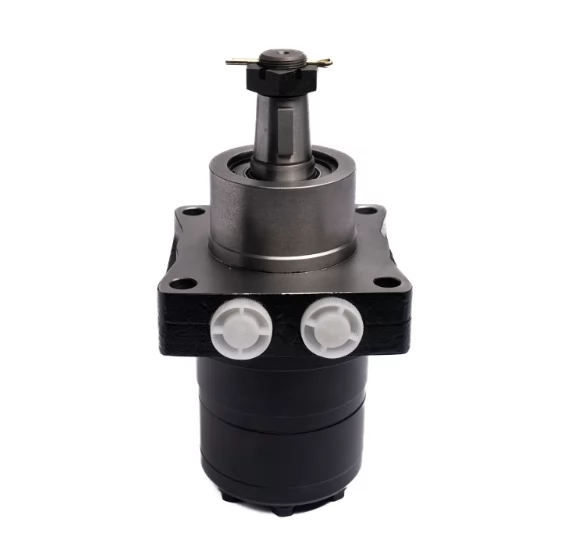

BM2 Series Hydraulic Motors — Low-Speed High-Torque Orbital Motors for Industrial OEM Applications

Sourcing reliable BM2 series hydraulic motors at competitive wholesale prices? Olive Branch Hydraulics manufactures fully OEM-compatible BM2 orbital motors engineered for low-speed, high-torque performance across agricultural machinery, construction equipment, conveyors, and material handling systems. With over 10 years of manufacturing experience in Shijiazhuang, Hebei Province, we deliver dimensionally interchangeable BM2 motors with displacements from 50 cc/rev to 400 cc/rev, supported by strict in-house quality control, white-label packaging, and lead times as short as 15 days for stocked SKUs. Whether you are a distributor seeking a stable supply partner or an OEM looking for a cost-optimized BM2 hydraulic motor manufacturer, our team is ready to quote your specification today.

Features & Buyer Benefits

The BM2 series is a Gerotor-type orbital motor (also known as a low-speed high-torque LSHT motor) designed as a direct dimensional and performance equivalent to globally recognized BMR, OMR, and BM2 standards. Every unit leaving our facility is pressure-tested at 100% inspection rate before packaging.

Cross-Brand Compatibility

Direct interchangeable with mainstream BMR / OMR / BM2 / Char-Lynn H series mounting and shaft dimensions
Multiple shaft options: straight keyed Ø25 mm, Ø32 mm, splined 1" 6B, tapered 1:8
Standard SAE A 2-bolt and 4-bolt flange configurations available
G1/2", G3/8", and SAE 10 port threads supported

Performance Advantages

High volumetric efficiency up to 93% via precision-ground Gerotor sets
Low-speed stability down to 10 rpm without stick-slip
Maximum continuous torque up to 470 N·m, peak torque up to 580 N·m
Continuous operating pressure up to 14 MPa (peak 17.5 MPa)
Hardened, precision-machined output shafts rated for 8,000+ hours MTBF

Commercial Benefits for Buyers

Competitive FOB pricing — typically 25–40% below European brand equivalents
MOQ as low as 10 units for trial orders, scalable to 1,000+ units monthly
Stocked SKUs ship in 15 days; custom configurations 25–35 days
White-label and custom-branded packaging available at no tooling cost above MOQ
12-month warranty with traceable serial numbers on every unit

Technical Specifications

Series specifications are selection references. Confirm the complete model code and ordered configuration for pressure, speed, displacement, rotation, shaft, flange and ports. Continuous, intermittent and peak ratings must be distinguished; maximum values are not simultaneous operating limits. Machine fitment requires the OEM part number and machine serial number.

Model	Displacement (cc/rev)	Max Speed (rpm)	Max Continuous Torque (N·m)	Max Continuous Pressure (MPa)	Max Output Power (kW)	Max Flow (L/min)
BM2-50	51.7	750	96	14	7.5	40
BM2-80	80.4	600	150	14	9.4	50
BM2-100	103.0	475	193	14	9.6	50
BM2-125	128.8	380	241	14	9.6	50
BM2-160	160.6	305	301	14	9.6	50
BM2-200	201.1	245	376	13	9.6	50
BM2-250	251.5	195	440	12.5	9.0	50
BM2-315	314.5	155	470	11	7.6	50
BM2-400	396.2	125	470	10	6.2	50

General Operating Parameters

Recommended fluid: mineral-based hydraulic oil, viscosity 20–75 cSt
Fluid temperature range: -20°C to +80°C
Filtration requirement: ISO 4406 ≤ 20/18/15
Direction of rotation: bi-directional
Mounting position: any orientation

OEM / ODM Capabilities

As a dedicated BM2 series hydraulic motor supplier, we operate as an extension of your engineering and procurement team. Roughly 60% of our annual output ships under partner brands across Europe, North America, Southeast Asia, and the Middle East.

Customization Options Available

Customization Category	Available Options	MOQ	Lead Time
Shaft Configuration	Straight key, splined 6B/14T, tapered 1:8, custom drawing	50 pcs	25–30 days
Flange Type	SAE A 2-bolt, 4-bolt, magneto, wheel mount	50 pcs	25–30 days
Port Thread	BSP, NPT, SAE, metric	30 pcs	20 days
Housing Color & Logo	Custom RAL color, laser-engraved or silk-screen logo	100 pcs	20 days
Nameplate & Serial	Customer brand, custom part number, traceable serial	50 pcs	15 days
Packaging	Neutral export carton, custom-printed box, pallet labeling	200 pcs	15–20 days
Documentation	Custom catalogs, datasheets, installation manuals	1 set	7–10 days

Quality Control Process

Incoming material inspection — hardness, dimensional and metallurgical verification
CNC machining with in-process SPC monitoring on critical tolerances
Sub-assembly cleanliness check to NAS 1638 Class 8
100% performance testing — flow, pressure, leakage, no-load torque, running-in
Final visual inspection, rust prevention, and individual packaging

FAQ

Q: Are your BM2 motors fully interchangeable with original BMR/OMR units?

A: Yes. Our BM2 series matches the mounting flange, shaft dimensions, port positions, and performance curves of the industry-standard BMR/OMR specification. Most customers use our motors as drop-in replacements without modifying existing equipment.

Q: What is the BM2 hydraulic motor price range?

A: Pricing varies by displacement, configuration, and order volume. As a guideline, FOB Tianjin prices typically range from USD 28 to USD 95 per unit at 100-piece order quantities. Submit your model list and we will return a formal quotation within 24 hours.

Q: What is the minimum order quantity?

A: For standard catalog SKUs, MOQ is 10 units for sample/trial orders. For OEM-customized units (custom shaft, flange, or branding), MOQ starts at 50 units depending on the modification scope.

Q: How long does production and shipping take?

A: Stocked items ship within 15 days. Customized orders typically require 25–35 days. Sea freight to major ports in Europe and North America takes 28–40 days; we also support DHL, FedEx, and consolidated rail shipping.

Q: What warranty do you provide?

A: Every BM2 motor carries a 12-month warranty from shipment date covering manufacturing defects. Each unit is laser-marked with a unique serial number for traceability across raw material, assembly, and test records.

Q: Do you support sample testing before bulk orders?

A: Absolutely. We strongly encourage technical validation. Samples are available at unit price plus express freight, and sample fees are typically credited against your first bulk order.

Q: Which payment terms do you accept?

A: T/T (30% deposit, 70% before shipment), L/C at sight, Western Union for samples, and Alibaba Trade Assurance. For long-term partners, OA terms are negotiable after the third order.

Request Your Custom BM2 Quotation Today

Ready to lock in a stable, cost-effective supply of BM2 orbital motors for your next production run? Olive Branch Hydraulics combines decade-long manufacturing expertise with transparent pricing and dedicated export support to help you reduce procurement costs without compromising reliability.

Send us your inquiry and receive within 24 hours:

Model-by-model quotation based on your BOM or sample

3D CAD drawings and detailed datasheets

Production lead time confirmation and shipping options

Custom OEM/branding feasibility assessment

Free samples evaluation pathway for qualified buyers

Contact our export team now with your target model, required quantity, and application details. Whether you need a single replacement motor or a 12-month supply contract, we will respond with a competitive offer tailored to your project. Partner with a BM2 hydraulic motor manufacturer that treats your business as a long-term commitment, not a single transaction.
